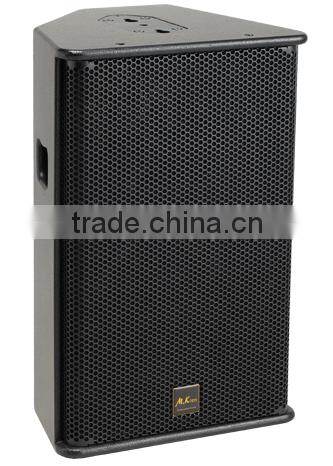

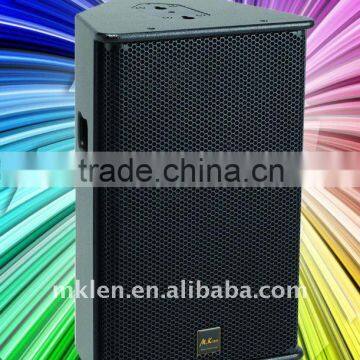

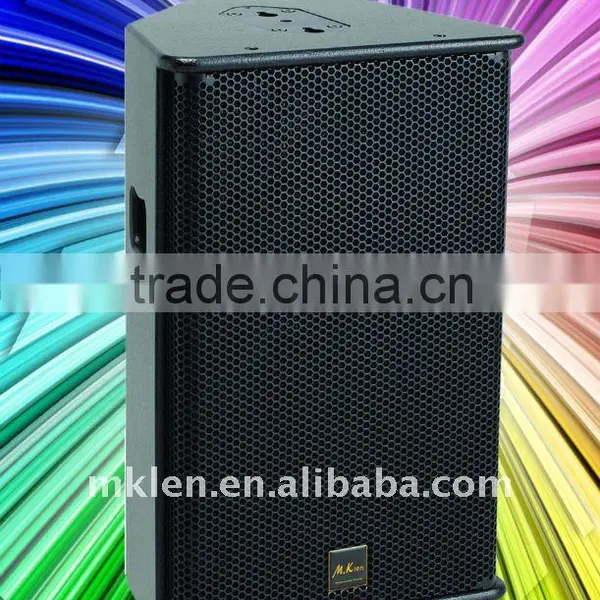

PS12-R2 Neodynium Pro Audio

PS12-R2 Neodynium Pro Audio photo-1
Negotiable MOQ: 10 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Mklen
Model Number:
PS12-R2
Payment & Shipping
Payment Methods:
Port of Shipment:
guangzhou
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Guangdong, China
Brand Name Mklen
Model Number PS12-R2
Product Description

1. PS12-R2 is a versatile, 2-way passive system, designed to provide exceptional club sound reinforcement and stage monitoring from a very compact enclosure.



2. It features a powerful 12″(300mm) low frequency driver and a 1″(25mm) HF compression driver mounted on a constant directivity 90°×50° horn.



3. Depending on the application, the HF horn can be rotated to allow the multi-angle enclosure to be used in either its vertical or horizontal orientation.







PS12-R2 Speaker features:

A 12" 2-way passive stage speaker, 300-600watts, with one 12" LF Neodymium and one 1.7" HF drivers.

Strong penetrating, high fidelity and low distortion, clear, pure and natural tone quality.

With multilayer plywood, environmental smooth black painting, newest humanzied design, light weight, simple and esay for rigging.

Widely used in AV application system, meeting room, stage, theater, clubs, discos ect.







PS12-R2 Speaker specification:



TYPE

versatile, 2-way passive system

FREQUENCY RESPONSE

60 Hz-19kHz

DRIVERS

LF1×12″(300mm) 8Ωdriver
Voice coil HF driver size 1.4″(34mm)
Asymmetrical Dispersion Horn.

RATED POWER

300 to 600 Watts into 8Ω

SENSITIVITY

98dB

MAXIMUM SPL

131dB

NOMINAL IMPEDANCE

8 ohms

DIMENSIONS

(H)582×(D)394×(W)340 mm

WEIGHT

18kg







Our Services

 Our factory supports Alibaba Trade Assurance, 100% product quality protection.

 OEM or ODM orders are warmly welcomed, we could produce varies speakers according to your drawings.

 Offer 1year free warranty, except the man-made damaged.

  All the products will be tested and inspected before the delivery.

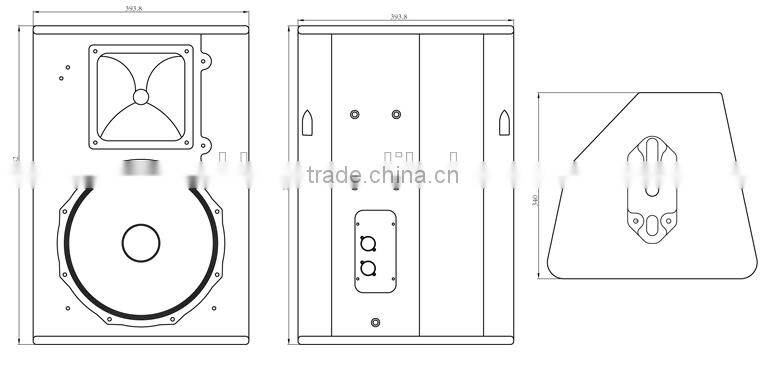

PS12-R2 Speaker box design:



                                                PS12-R2 Neodynium pro audio









PS12-R2 Neodynium pro audio

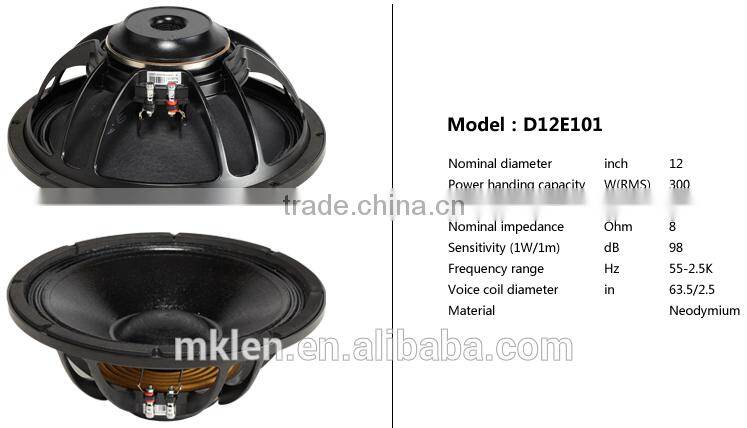

PS12-R2 Speaker driver configuration:



PS12-R2 Neodynium pro audio









PS12-R2 Neodynium pro audio













Our Showroom & Assembly Shop:



PS12-R2 Neodynium pro audio



PS12-R2 Neodynium pro audio  PS12-R2 Neodynium pro audio
