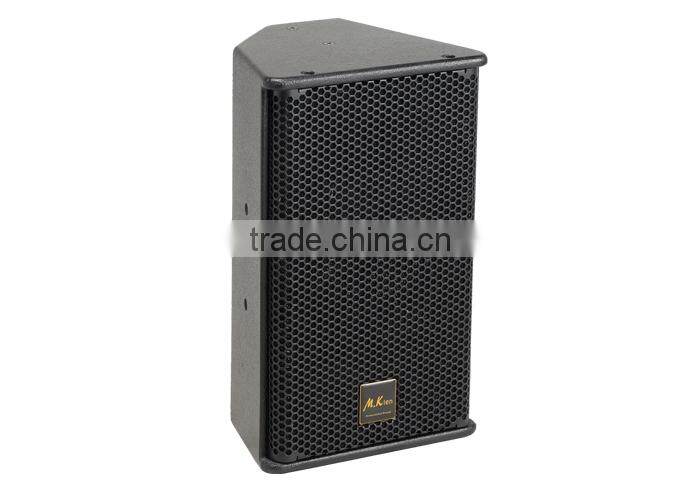

Nexo PS8-R2, Trade Assurance, 8 Inch Passive 2-way Full Range Loudspeaker, Pro Audio

FOB Price

Negotiable / Piece

10 Pieces(Min. Order)

Port Guangzhou
Payment TermsCredit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China		Brand Name	M.Klen
Model Number	PS8-R2

Product Description

[ Factory, EXW price, quickly shipment, trade assurance, 10 years of OEM ]:

PS8-R2 loudspeaker descriptions:

1. PS8-R2 is a versatile , 2-way passive system, designed to provide exceptional club sound reinforcement and stage monitoring from a very compact enclosure.

2. It features a powerful 8''(200mm) low frequency driver and a 1''(25mm) HF compression driver mounted on a constant directivity 100° x 50° horn.

3. Depending on the application, the HF horn can be rotated to allow the multi-angle enclosure to be used in either its vertical or horizontal orientation.

PS8-R2 loudspeaker features:

1.Versatile, passive 2-way full range system, 1x8''LF + 1x1.4''HF, 200W - 400W.

2. Full sound, powerful bass, low distortion, pure and natural tone quality, light weight, easy to install and safely.

3. Best chioce for nightclubs, bars, Disco, theaters, concert halls, Band, stage performance, wedding, touring performance, etc.

4. This model is outstanding used in the slow rock bars, which displys very full voices, and the bass is powerful.

PS8-R2 loudspeaker specifications:

Frequency Response[a]	75Hz-19kHz±3dB
Usable Range@-6dB [a]	70 Hz-19kHz
Sensitivity 1W@1m[b]	98dB/w/m
Nominal Peak SRL@1m[b]	118dB to 124dB Peak (for 200 to 400W RMS Amp.)
HF Dispersion[c]	50°to 100°Hor. × 55°Vert.Rotatable Horn,4 positions
Norminal impedance	8 ohms
Rated power	200W RMS, 400W peak into 8Ω
Components	LF:1×8″(200mm)Shielded 8Ω driver, Neodymium HF: Voice coil HF driver size 1.4″(34mm), Ferrite Constant Directivity Asymmetrical Dispersion Horn.
Dimension	(H)406 x (D)219 x (W)250mm
Weight	9kg
Connectors	2×NL4MP 4-pole SPEAKON

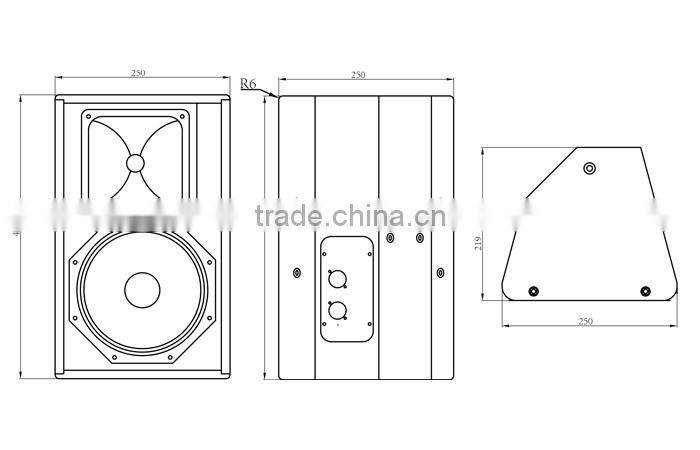

PS8-R2 loudspeaker box design:

PS8-R2 loudspeaker driver configuration:

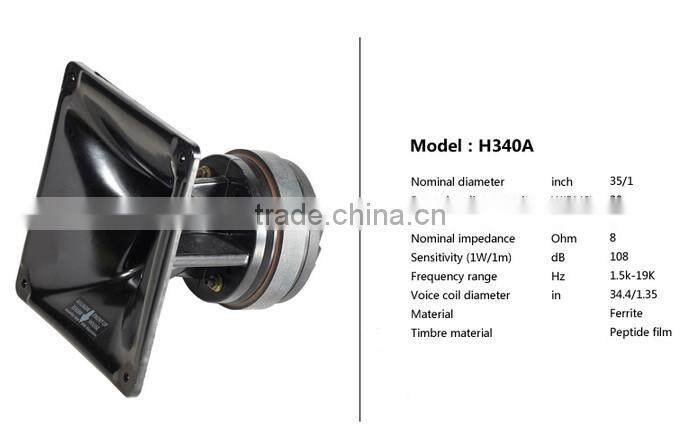

HF:

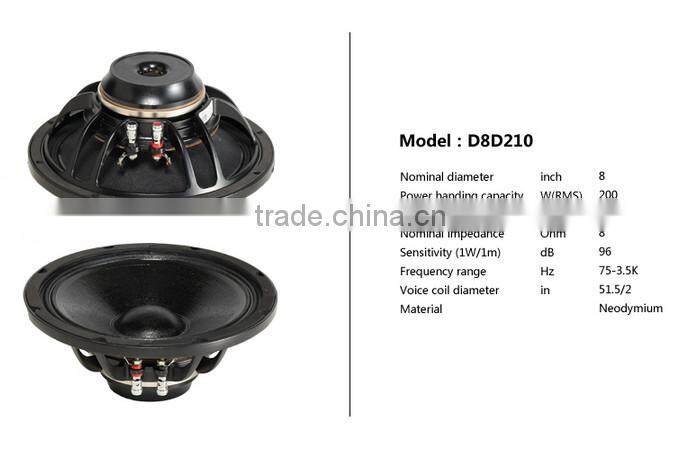

LF:

Our Services

♥ OEM /ODM orders are warmly welcome ,we can make the varied designs according to your need. Besides, we service alibaba trade assurance.

♥ All the goods are inspected before shipment, so we can ensure the best quality of products .

♥Free warranty service for one year ,within this period ,you can enjoy free maintenance service by warranty cards and invoice if a failure occurs under normal operation.

♥ If you have any problems,please feel free to let us know, by e-mail, telephone ,skype, WhatsApp or the others ,we will reply you as soon as we can.
