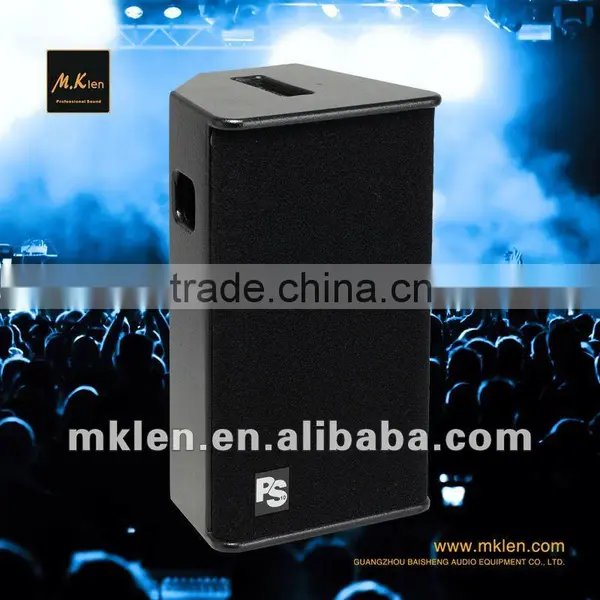

PS-10 is a versatile, 2-way passive system, designed to provide exceptional club sound reinforcement and stage monitoring from a very compact enclosure. It features a powerful 10"(250mm) low frequency driver and a 1"(25mm) HF compression driver mounted on a constant directivity 100°×50°horn. Depending on the application, the HF horn can be rotated to allow the multi-angle enclosure to be used in either its vertical or horizontal orientation.
PS10 Speaker Features:
♣ A 10" 2-way passive stage speaker, 250-500watts, with one 10" LF and one 1.4" HF drivers.
♣ Strong penetrating, high fidelity and low distortion, clear, pure and natural tone quality.
♣ With multilayer plywood, environmental smooth black painting, newest humanzied design, light weight, simple and esay for rigging.
♣ Widely used in AV application system, meeting room, stage, theater, clubs, discos ect.
PS10 Speaker Specifications:
| Frequency Response[a]: | 70Hz-20kHz±3dB |
| Usable Range@-6dB[a]: | 65Hz-20kHz |
| Sensitivity 1W@1m[b]: | 96dB/w/m |
| Nominal Peak SPL@1m[b]: | 117 to 123dB peak |
| HF Dispersion[c]: | 50° to 100°Hor.×55°Vert. Rotatable Horn |
| Nominal Impedance: | 8ohms |
| Recommended Amplifiers: | 250 to 500watts into 8Ω |
| Components: |
LF1×10"(250mm) 8Ω driver Voice coil HF driver size 1.4" (34mm) Constant Directivity Asymmetrical Dispersion Horn. |

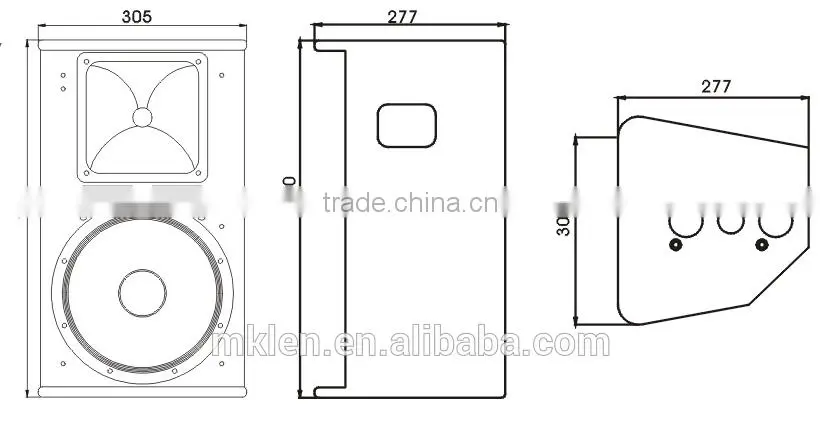

| Dimensions: | (H)520×(W)305×(D)277mm |
| Weight: | 16kg |
| Connectors: | 2ΧNL4MP 4-pole SPEAKON |
♦ Our factory supports Alibaba Trade Assurance, 100% product quality protection.
♦ OEM or ODM orders are warmly welcomed, we could produce varies speakers according to your drawings.
♦ Offer 1year free warranty, except the man-made damaged.
♦ All the products will be tested and inspected before the delivery.
PS10 Speaker driver configurations:
