PS10-R2 Speaker Features:
♣ A 10" 2-way passive stage speaker, 250-500watts, with one 10" LF Neodymium LF and one 1.4" HF drivers.
♣ Strong penetrating, high fidelity and low distortion, clear, pure and natural tone quality.
♣ With multilayer plywood, environmental protective black painting, newest humanzied design, light weight, simple and esay for rigging.

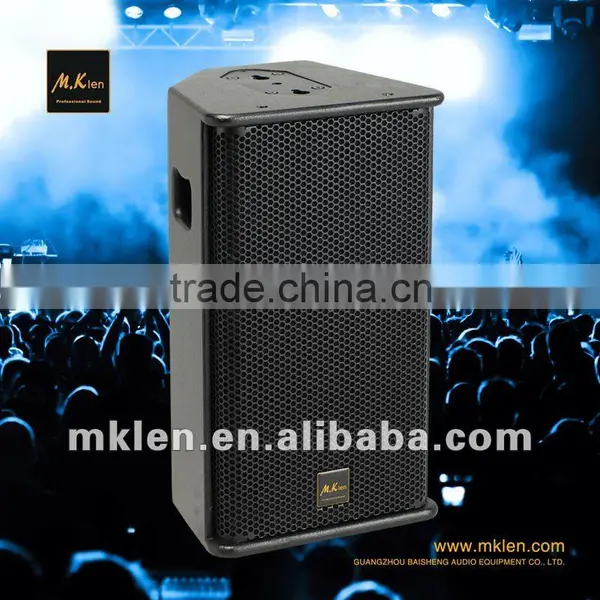

PS10-R2 is a versatile, 2-way passive system, designed to provide exceptional club sound reinforcement and stage monitoring from a very compact enclosure. It features a powerful 10″(250mm) low frequency driver and a 1″(25mm) HF compression driver mounted on a constant directivity 90°×50° horn. Depending on the application, the HF horn can be rotated to allow the multi-angle enclosure to be used in either its vertical or horizontal orientation.
PS10-R2 Speaker Specifications:
PS10-R2 | |
Frequency Response[a] |
70Hz-19kHz±3dB |
Usable Range@-6dB [a] |
65 Hz-19kHz |
Sensitivity 1W@1m[b] |
98dB |
Nominal Peak SRL@1m[b] |
125 dB Peak (for 250 to 500W RMS Amp.) |
HF Dispersion[c] |
50°to 100°Hor. × 55°Vert.Rotatable Horn |
Nominal Impedance |
8Ω |
Recommended Amplifiers |
250 to 500 Watts into 8Ω |
Components |
LF1×10″(250mm)Shielded Neodymium 8Ωdriver |
|
Voice coil HF driver size 1.4″(34mm) |
|
Constant Directivity Asymmetrical Dispersion Horn. |
Height × Width × Depth |
(H)520× (D)305 ×(W)277 mm |
Weight |
13 kg |
Connectors |
2×NL4MP 4-pole SPEAKON |
PS10-R2 Speaker Applications:
♦ Small and medium-sized theater, meeting room.
♦ Multi-functional hall, stage performance.
♦ Clubs, discos, KTV room ect.
♦ Our factory supports Alibaba Trade Assurance, 100% product quality protection.
♦ OEM or ODM orders are warmly welcomed, we could produce varies speakers according to your drawings.
♦ Offer 1year free warranty, except the man-made damaged.
♦ All the products will be tested and inspected before the delivery.

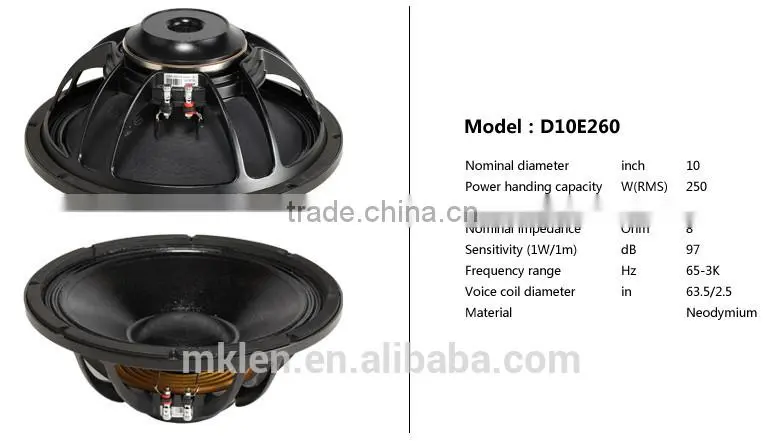

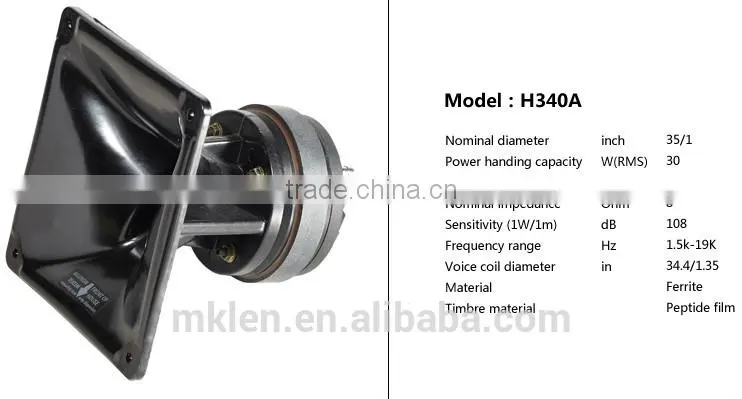

PS10-R2 Speaker driver configurations:
