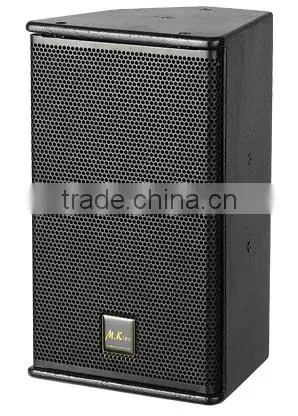

PS8 Speaker description:
1. PS-8 is a versatile, 2-way passive system, designed to provide exceptional club sound reinforcement and stage monitoring from a very compact enclosure.
2. It features a powerful 8″(200mm) low frequency driver and a 1″(25mm) HF compression driver mounted on a constant directivity 90°×50° horn.
3. Depending on the application, the HF horn can be rotated to allow the multi-angle enclosure to be used in either its vertical or horizontal orientation.
PS8 Speaker features:
♣ A 8" 2-way passive stage speaker, 200-400watts, with one 8" LF and one 1.4" HF drivers.
♣ Strong penetrating, high fidelity and low distortion, clear, pure and natural tone quality.
♣ With multilayer plywood, environmental smooth black painting, newest humanzied design, light weight, simple and esay for rigging.
♣ Widely used in AV application system, small meeting room, stage, theater, clubs, discos ect.
PS8 Speaker specification:
| Frequency Response[a] | 75Hz-20kHz±3dB |
| Usable Range@-6dB [a] | 70 Hz-20kHz |
| Sensitivity 1W@1m[b] | 96dB/w/m |
| Nominal Peak SRL@1m[b] | 122dB Peak (for 200 to 400W RMS Amp.) |
| HF Dispersion[c] | 50°to 100°Hor. × 55°Vert.Rotatable Horn,4 positions |
| Nominal Impedance | 8Ω |
| Nominal Impedance | 200 to 400 Watts into 8Ω |
|
Components |

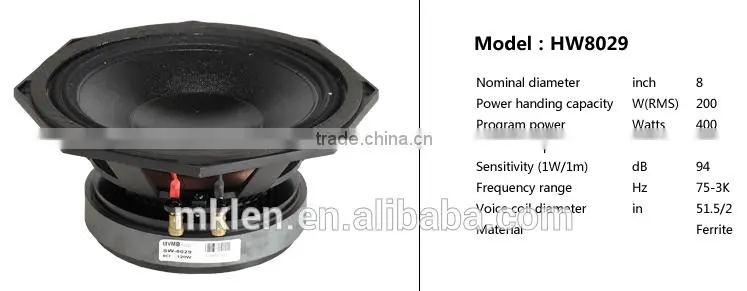

LF1×8″(200mm)Shielded 8Ωdriver |

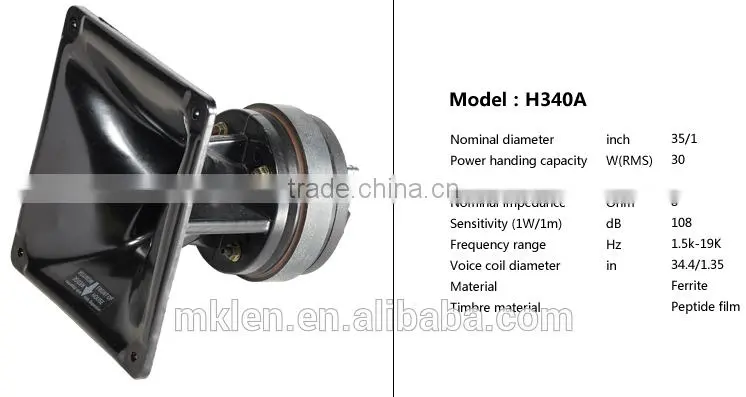

| Voice coil HF driver size 1.4″(34mm) | |
| Constant Directivity Asymmetrical Dispersion Horn. | |
| Height × Width × Depth | 406×250×219mm |
| Weight | 11kg |
| Connectors | 2×NL4MP 4-pole SPEAKON |
♦ Our factory supports Alibaba Trade Assurance, 100% product quality protection.
♦ OEM or ODM orders are warmly welcomed, we could produce varies speakers according to your drawings.
♦ Offer 1year free warranty, except the man-made damaged.
♦ All the products will be tested and inspected before the delivery.

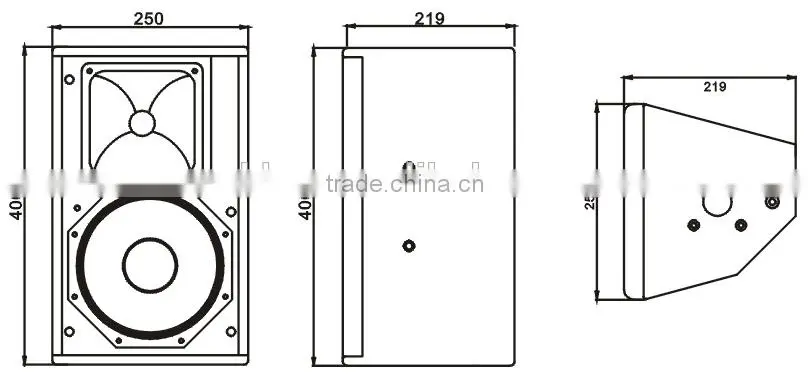

PS8 Speaker box design:
PS8 Speaker driver configuration:
