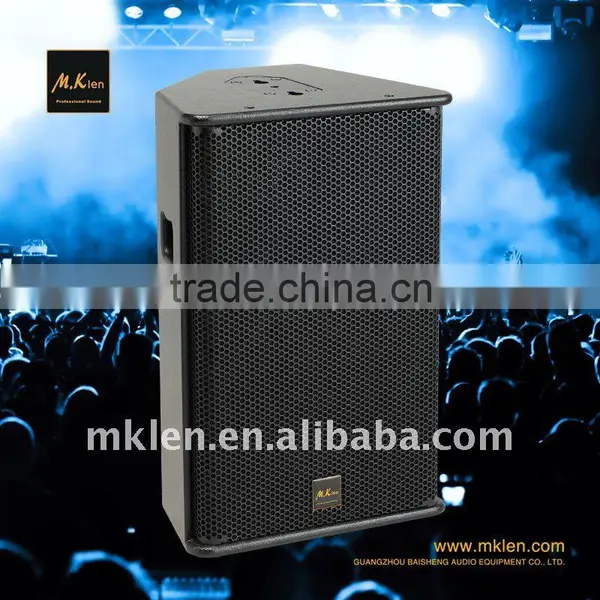

This pro audio is a 12" two-way system,it is the new model.The LF speaker components use Neodynium speakers to ensure the nice & perfect sound!
1. PS12-R2 is a versatile, 2-way passive system, designed to provide exceptional club sound reinforcement and stage monitoring from a very compact enclosure.
2. It features a powerful 12″(300mm) low frequency driver and a 1″(25mm) HF compression driver mounted on a constant directivity 90°×50° horn.
3. Depending on the application, the HF horn can be rotated to allow the multi-angle enclosure to be used in either its vertical or horizontal orientation.
PS12-R2 speaker specifications:
PS12-R2 | |
Frequency Response[a] |
65Hz-19kHz±3dB |
Usable Range@-6dB [a] |
60 Hz-19kHz |
Sensitivity 1W@1m[b] |
98dB |
Nominal Peak SRL@1m[b] |
131dB Peak (for 300 to 600W RMS Amp.) |
HF Dispersion[c] |
50°to 100°Hor. × 55°Vert.Rotatable Horn,4 Positions |
Directivity |
Q& DI [c]Q:16 Nominal DI:12dB Nominal (f>3kHz) |
Crossover Frequencies |
2kHz Passive |
Nominal Impedance |
8Ω |
Recommended Amplifiers |
300 to 600 Watts into 8Ω |
Components |
LF1×12″(300mm) 8Ωdriver |
|
Voice coil HF driver size 1.4″(34mm) |
|
Asymmetrical Dispersion Horn. |
Height × Width × Depth |
582 × 340× 394mm |
Weight |
18 kg |
Connectors |
2×NL4MP 4-pole SPEAKON |
♦ Our factory supports Alibaba Trade Assurance, 100% product quality protection.
♦ OEM or ODM orders are warmly welcomed, we could produce varies speakers according to your drawings.
♦ Offer 1year free warranty, except the man-made damaged.
♦ All the products will be tested and inspected before the delivery.
PS12-R2 speaker driver configuration:
Our assembly shop:
