PS15+ Pro speaker features:
This pro audio is 15 inch loudspeaker,with high power 600watt.It is made of high quality plywood.Tweeter use 3inch peptide film voice coil match up with good "glass fibre reinforced plastic" horn. 15inch bass speaker,600watt.High fidelity.Best choice for Disco,Hi room,slow roll room,stadium and so on.This model is high demand both domestic and overseas.
PS15+ Pro speaker specification:
| PS-15+ 600watt pro audio | |
| Frequency Response[a] | 48Hz-18kHz±3dB |
| Usable Range@-6 dB [a] | 45Hz-20kHz |
| Sensitivity 1W@1m[b] | 98dB SPL Nominal-96 dB SPL Wideband |
| Rated power | 600W AES,1200W peak |
| Nominal Peak SRL@1m[b] | 134to 137dB Peak (for 500 to1000W RMS Amp.) |
| HF Dispersion[c] | 50°to 100°Hor. × 55°Vert.Rotatable Horn |
| Directivity | Q & DI [c]Q:16 Nominal DI:12dB Nominal (f>1.5kHz) |
| Crossover Frequencies | 900Hz Passive or Active (internally switchable) |
| Nominal Impedance | Passive 8ΩActive; LF 6Ω,HF8Ω. |
| Components | LF1×15″(38cm),600w, 6Ωdriver |
| HF 1×2″ throat,3″ titanium diaphragm,driver + Low Distortion, | |
| Constant Directivity Asymmetrical Dispersion Horn. | |
| Height × Width × Depth | 675×434×369mm |
| Weight | 32kg |
| Connectors | 3×NL4MP 4-pole SPEAKON;Passive ln Passive Loop Thru,Active ln |
Our Services:
♦ Our factory supports Alibaba Trade Assurance, 100% product quality protection.
♦ OEM or ODM orders are warmly welcomed, we could produce varies speakers according to your drawings.
♦ Offer 1year free warranty, except the man-made damaged.
♦ All the products will be tested and inspected before the delivery.
PS15+ Pro speaker box design:

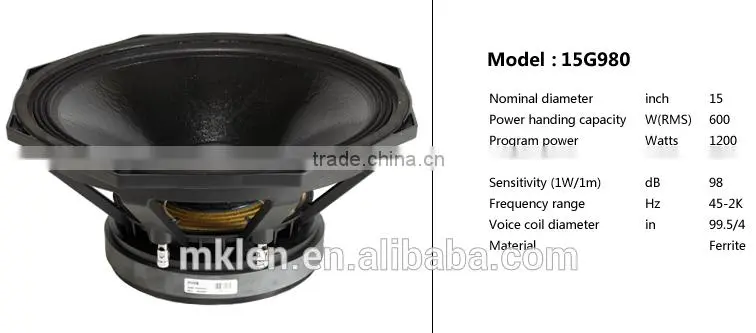

PS15+ Pro speaker driver configuration:
