High Voltage Application Insulation Sleeving SB-SGS-15 Silicone Resin Coated Fiberglass Sleeving for Alternators
1. Model
SB-SGS-15
2. Working Temperature
200°c
3. Structure

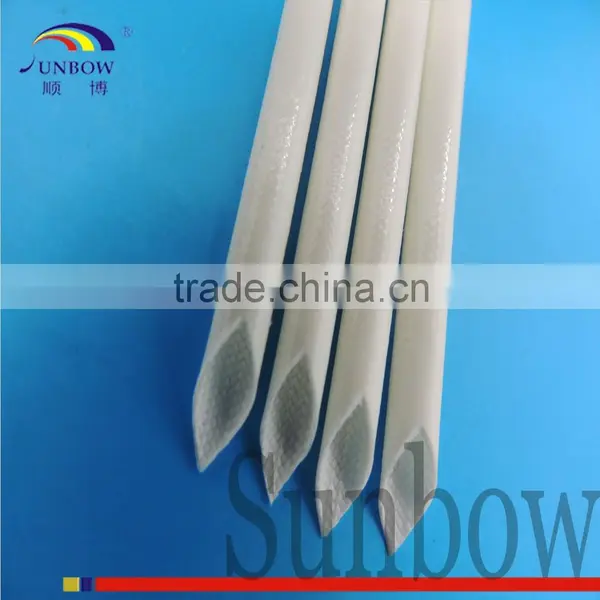

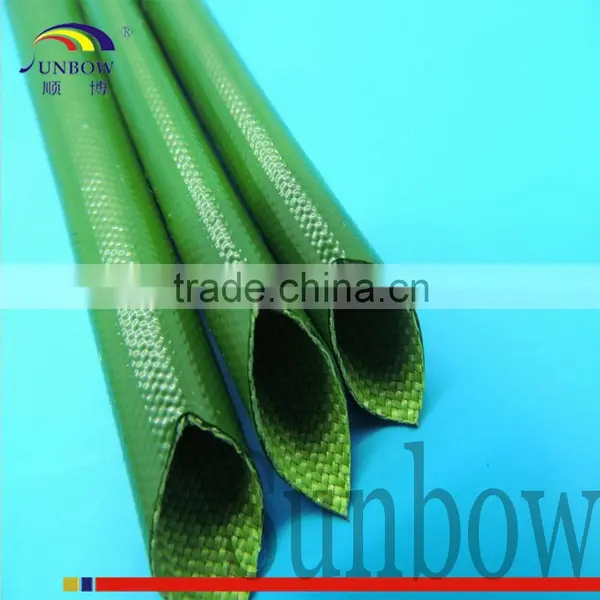

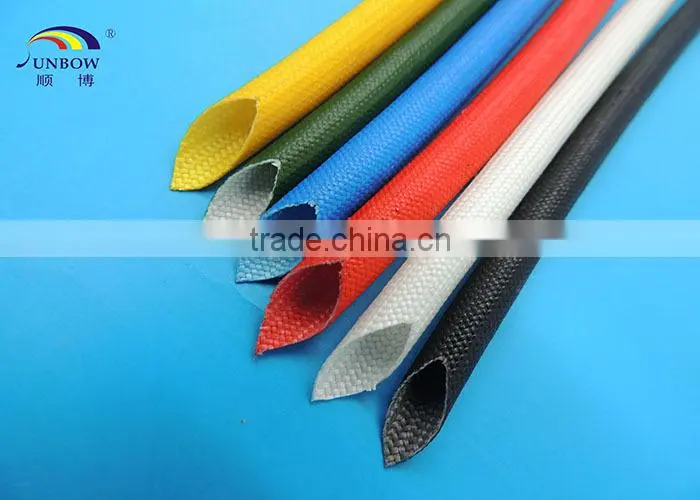

High Voltage Application Insulation Sleeving SB-SGS-15 Silicone Resin Coated Fiberglass Sleeving for Alternators is braided with non-alkali fiberglass and coated with silicone resin treated in high temperature.
4. Characteristics
1) insulation
2) good dielectric strength
3) flexibility
4) flame retardant property
5) high temperature resistance
6) VW-1 flame retardant rating
5. Specification
ITEM |
PERFORMANCE) |
NOTE |
|
|
DIELECTRIC BREAKDOWN VOLTAGE KV AC |
MINIMUM AVERAGE |
≥1.5 |
BEFORE AGED
|
MINIMUM SINGLE POINT |
≥1.0 |
||
MINIMUM AVERAGE |
≥1.0 |
6 HRS* 245±5℃ 245±5℃ 6HRS AGING |
|
MINIMUM SINGLE POINT |
≥0.7 |
||
THERMAL ENDURANCE |
NO INDICATION OF CRACK |
OK |
6 HRS* 245±5℃ 245±5℃ 6HRS AGING |
FIRE RESISTANCE |
VW-1 |
OK |
UL 1441 |
6. Dimension
INSIDE DIAMETER |
WALL THICKNESS MINIMUM (mm) |
STANDARD PACKAGE (m/roll) |
|
NOMINAL(mm) |
TOLERANCE(mm) |
||
φ0.5 |
+0.2, -0.1 |
≥0.30 |
200 |
φ1.0 |
+0.2, -0.1 |
≥0.30 |
200 |
φ1.5 |
+0.2, -0.1 |
≥0.30 |
200 |
φ2.0 |
+0.2, -0.1 |
≥0.30 |
200 |
φ2.5 |
+0.3, -0.1 |
≥0.35 |
200 |
φ3.0 |
+0.3, -0.1 |
≥0.35 |
200 |
φ4.0 |
+0.3, -0.1 |
≥0.35 |
200 |
φ4.5 |
+0.3, -0.1 |
≥0.40 |
100 |
φ5.0 |
+0.3, -0.1 |
≥0.40 |
100 |
φ6.0 |
+0.3, -0.1 |
≥0.40 |
100 |
φ7.0 |
+0.3, -0.1 |
≥0.45 |
100 |
φ8.0 |
+0.3, -0.1 |
≥0.45 |
100 |
φ9.0 |
+0.3, -0.1 |
≥0.55 |
100 |
φ10.0 |
+0.3, -0.1 |
≥0.55 |
100 |
φ12.0 |
+1.0, -1.0 |
≥0.55 |
50 |
φ14.0 |
+1.0, -1.0 |
≥0.55 |
50 |
φ16.0 |
+1.0, -1.0 |
≥0.55 |
50 |
φ18.0 |
+1.0, -1.0 |
≥0.55 |
50 |
φ20.0 |
+1.0, -1.0 |
≥0.65 |
25 |
φ25.0 |
+1.0, -1.0 |
≥0.65 |
25 |
φ30.0 |
+1.0, -1.0 |
≥0.65 |
25 |
7. Application
High Voltage Application Insulation Sleeving SB-SGS-15 Silicone Resin Coated Fiberglass Sleeving for Alternators is widely used in insulated, uninsulated or partially insulated conductors, busbars, leads and electrical components.
8. More Products to Choose

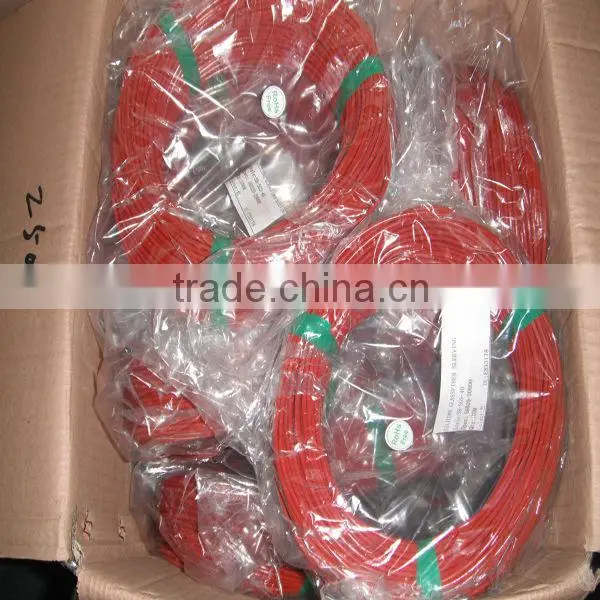

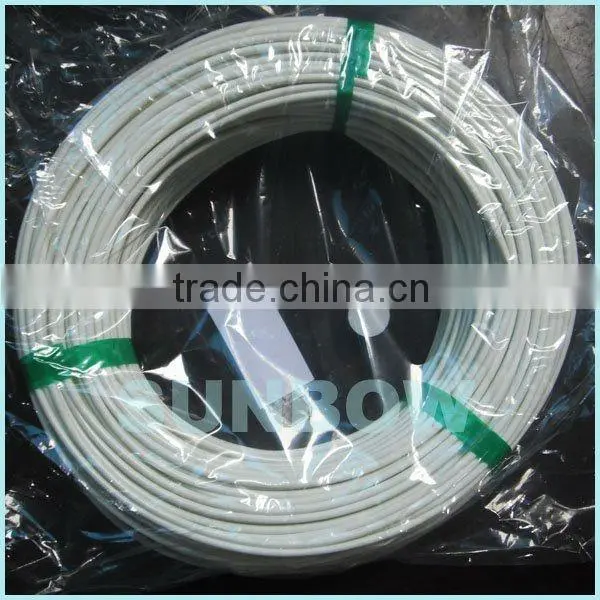

9. Packing & Shipping
0.5~1.5mm 200m/r
2.0~6.0mm 100m/r
7.0~18.0mm 50m/r
20.0~30.0mm 25m/r
All our products are packaged in cardboard boxes.
You can choose the best way you like to deliver the goods, such as DHL, FEDEX, UPS...
10. Our Services
1) 2~7 workdays of delivery
2) 2 years quality guarantee
3) prompt feedback
4) 24hrs on line service
11. Company Information About SUNBOW
Shenzhen SUNBOW Insulation Materials MFG. Co., Ltd is one of the leading insulation sleeving manufacturers in China. It was established in 2003. In 2008, due to the business expansion, it is relocated in Heshuikou SUNBOW industrial park. In 2009, we succeeded in getting ISO9001:2008 quality management system certification. We specialize in fiberglass sleevings, PE heat shrink tubes, PVC heat shrink tubes, PTFE heat shrink tubes and silicone rubber tubes. Our products have passed UL, CSA, RoHS, REACH certifications. Our business partners can be found all over the world. Some famous partners are:
SEB, Philips, Zoppas, Toshiba, Sanyo, SAMSUNG, Midea, HOT, IKEA, Breville, Panasonic, Tescon, Tiger, Emerson, Conair....
12. Some Certifications We've Got
13. Other Services
Free samples can be provided for your trial.
14. Other Models
SB-SGS-12(for 1.2kv silicone fiberglass sleeving)
SB-SGS-25(for 2.5kv silicone fiberglass sleeving)
SB-SGS-40(for 4.0kv silicone fiberglass sleeving)
SB-SGS-70(for 7.0kv silicone fiberlgass sleeving)
SB-SGS-100(for 10.0kv silicone fiberglass sleeving)
15. Frequently Asked Q & A
Q1. You are a factory or trading company?
- We are a factory and we can provide best price and high quality products for you.
Q2. Can you accept sample orders?
- Yes, we can accept sample orders and we can also provide free samples for your test if necessary.
Q3. What is your MOQ?
- Normally, 2000m per size.
Q4. What are your payment terms?
- T/T 100%
Q5. How can I get my order? How can I know you sent the goods?
We will send the goods by UPS, DHL, FedEx or sea shipment. After we sent the goods , we will give you the tracking number or other relative files for your check.
Q6. How about your quality?
- Try a small order, and then you can judge.
Q7. Have you passed any certificates?
- Yes. We are an ISO9001:2008 quality management system certificated manufacturer. Our products have passed UL, ROHS, REACH certifications. If necessary, we can send you relative files.
Q8. Are there any advantages to choose your products?
- Factory direct sales, quality assurance and competitive price
- UL, ROHS, REACH certificated
- Philips, Toshiba, Media etc. well-known partners
- An extensive line of high quality products (silicone fiberglass sleeving, various heat shrink tubes, pvc tube, ptfe tube, FDA compliance silicone rubber tube…)
