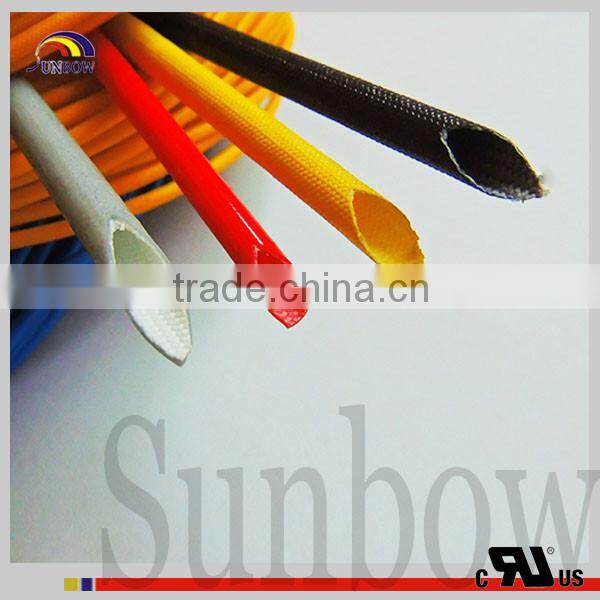

1500V Flexible silicone Glassfiber insulation sleeving For electrical components #SB-SGS-15
- 100000 Meter / Meters per Month
- Shenzhen
- T/T Credit Card
-
Wenzhou Yika 7.2KV High Voltage Fuse 63 Amp
-
3240 Epoxy Board, High-quality Insulation Material, Flexible Customization, Widely Applicable 3240 Epoxy Sheet
-
Chinese Factory Electrical Insulation Brown 3025 Phenolic Bakelite Resin Cotton Cloth Fabric Laminate Board Sheet Phenolic Board
-
4x8 fiberglass sheets g10 epoxy glass fiber board g10 material
-
Factory Price Bakelite Decorative HPL Press plates bakelite sheet
-
Black G10 Sheet - High Quality Carbon Fiber G10 FR4 Sheets - Precision-made PCB Materials
Product Details
| Place of Origin: | Guangdong, China | Brand Name: | SUNBOW | Model Number: | SB-SGS-15 |
| Type: | Insulation Sleeving | Material: | Fiberglass | Application: | High Voltage |
| Rated Voltage: | 1.5KV | Tensile Strength: | Excellent |
Product Description

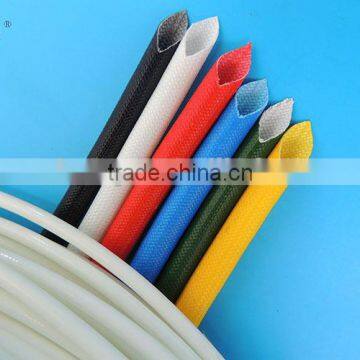

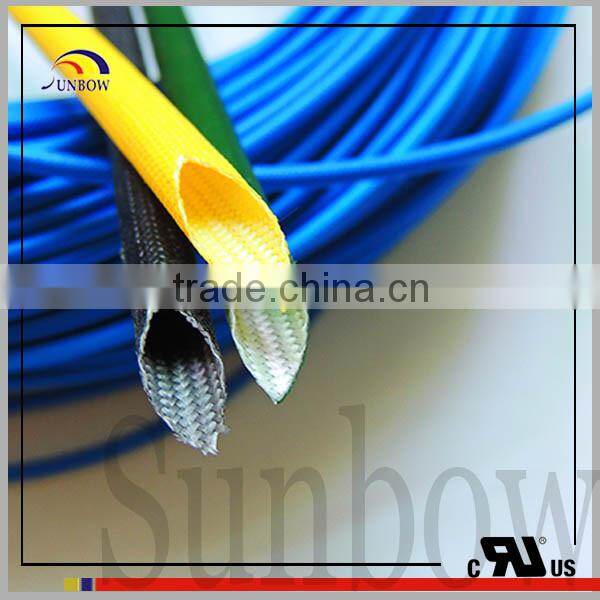

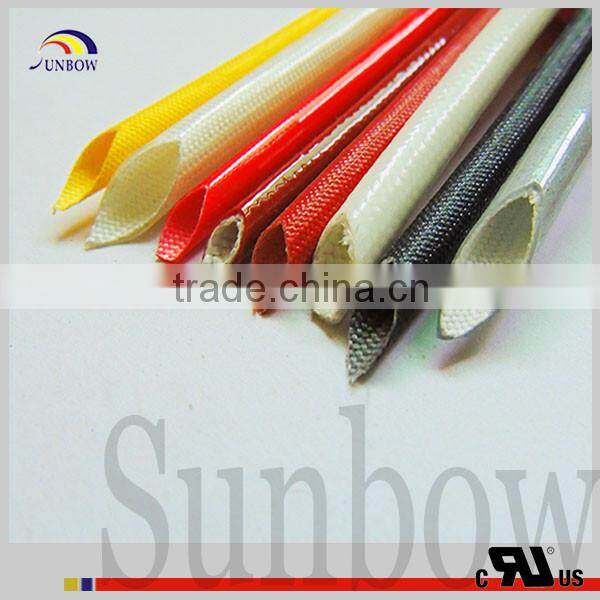

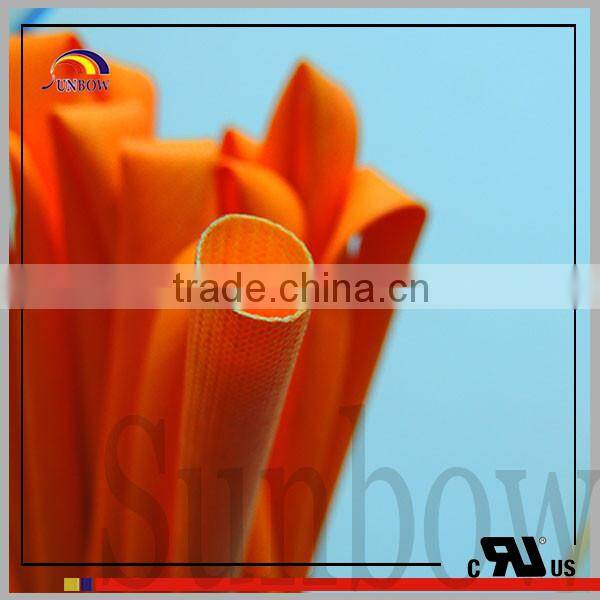

1500V Flexible silicone Glassfiber insulation sleeving For electrical components #SB-SGS-15
Model Number: SB-SGS-15
Working temperature: 200 degree
Structure
The materia is Non-Alkali Fiberglass braided then coated with silicone resin and treated in high temperature.
Usage
Widely used in insulated or partially insulated conductors,bus bars,componet leads,or assemlies or electrical componets etc.
Specification
| Item | Performance | Note | |
| Dielectric breakdown voltage KV AC | Minimum average | ≥1.2 | Before aged |
| Minimum single point | ≥2.0 | ||
| Minimum average | ≥1.5 | 6 HRS* 245±5°C 245±5°C 6 HRS Aging | |
| Minimum single point | ≥1.0 | ||
| Thermal endurance | NO Indication of crack | OK | HRS* 245±5°C 245±5°C 6 HRS Aging |
| Fire resistance | VW-1 | OK | UL1441 |
Dimension
| Inside diameter | Wall Thickness (mm) | Standard Package m/roll | |
| Nominal(mm) | Tolerance(mm) | ||
| ∅0.5 | +0.2, -0.1 | ≥0.27 | 200 |
| ∅1.0 | +0.2, -0.1 | ≥0.27 | 200 |
| ∅1.5 | +0.2, -0.1 | ≥0.27 | 200 |
| ∅2.0 | +0.2, -0.1 | ≥0.27 | 200 |
| ∅2.5 | +0.3, -0.1 | ≥0.32 | 200 |
| ∅3.0 | +0.3, -0.1 | ≥0.32 | 200 |
| ∅4.0 | +0.3, -0.1 | ≥0.37 | 200 |
| ∅4.5 | +0.3, -0.1 | ≥0.37 | 100 |
| ∅5.0 | +0.3, -0.1 | ≥0.37 | 100 |
| ∅6.0 | +0.3, -0.1 | ≥0.37 | 100 |
| ∅7.0 | +0.3, -0.1 | ≥0.42 | 100 |
| ∅8.0 | +0.3, -0.1 | ≥0.42 | 100 |
| ∅9.0 | +0.3, -0.1 | ≥0.42 | 100 |
| ∅10.0 | +0.3, -0.1 | ≥0.42 | 100 |
| ∅12.0 | +1.0, -1.0 | ≥0.52 | 50 |
| ∅14.0 | +1.0, -1.0 | ≥0.52 | 50 |
| ∅16.0 | +1.0, -1.0 | ≥0.52 | 50 |
| ∅18.0 | +1.0, -1.0 | ≥0.52 | 50 |
| ∅20.0 | +1.0, -1.0 | ≥0.62 | 25 |
| ∅25.0 | +1.0, -1.0 | ≥0.65 | 25 |
| ∅30.0 | +1.0, -1.0 | ≥0.65 | 25 |

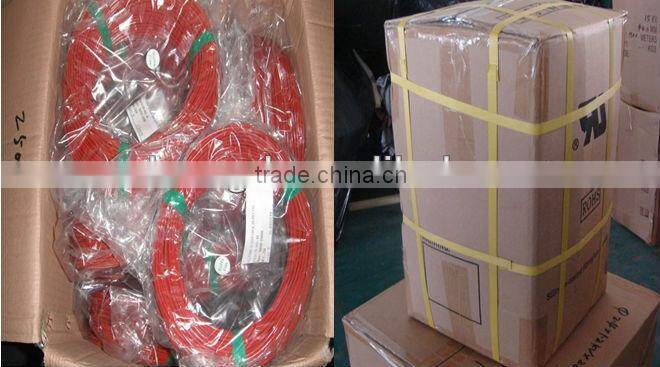

Packing is by rolls or cut upon request. 5 rolls per ctn.

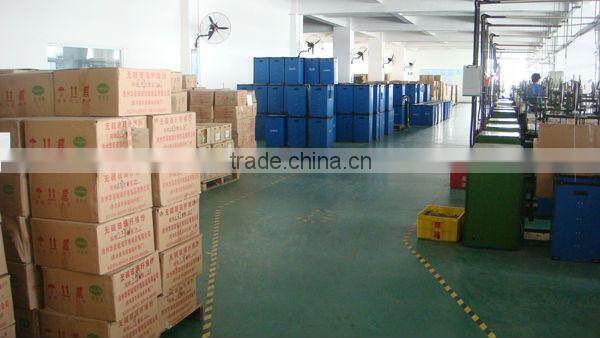

Shenzhen Sunbow insulation Materials MFG Co.,Ltd, established in 2003,mainly engaged in the research& development ,manufacture and sales of various insulation sleeving.

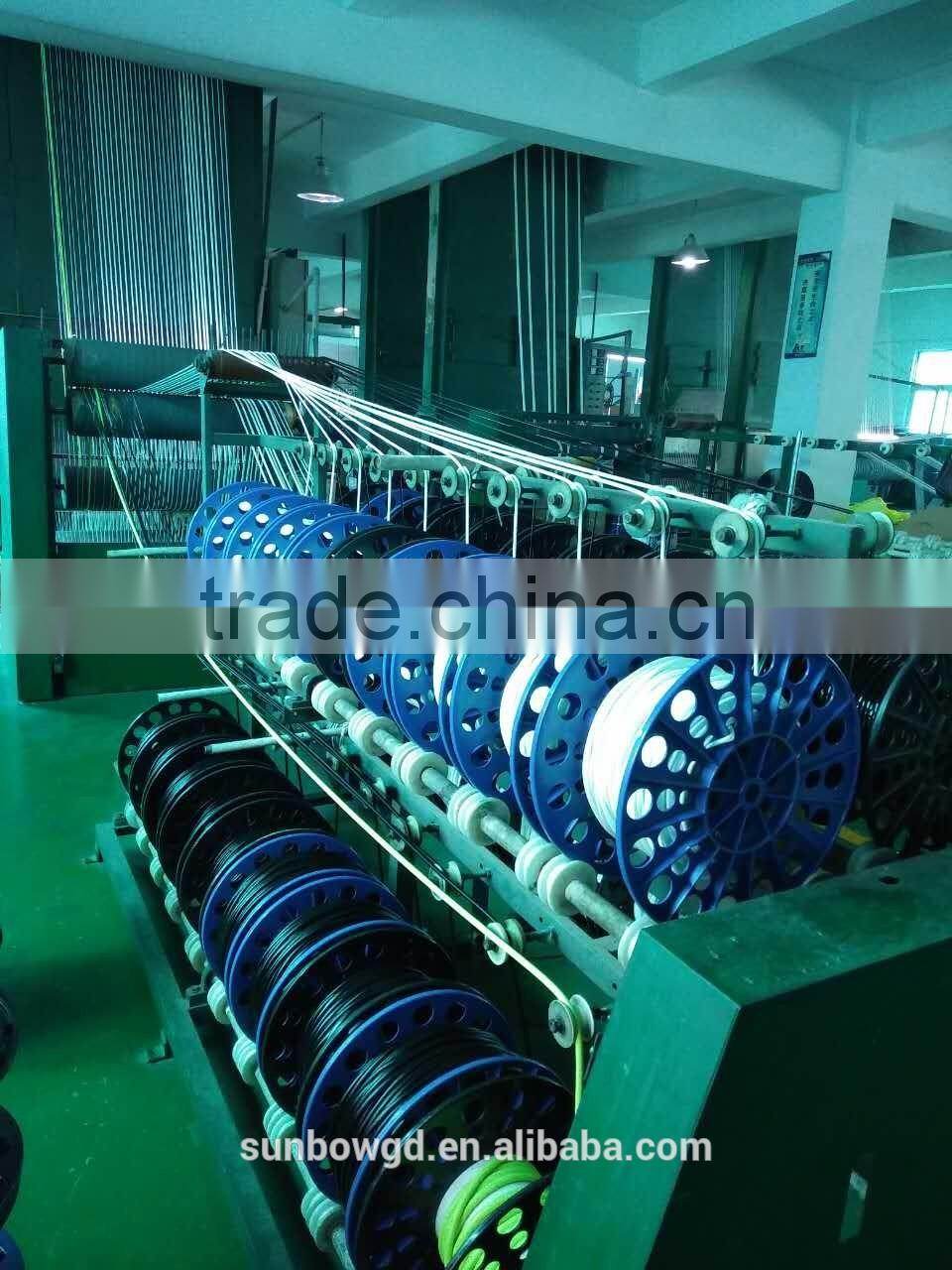

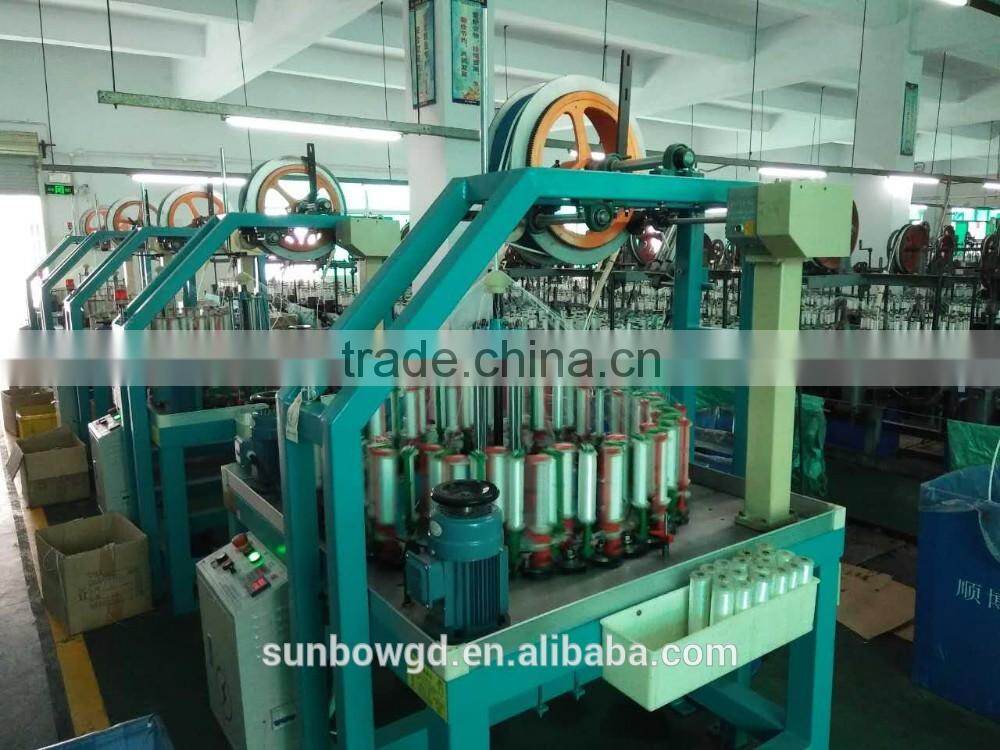

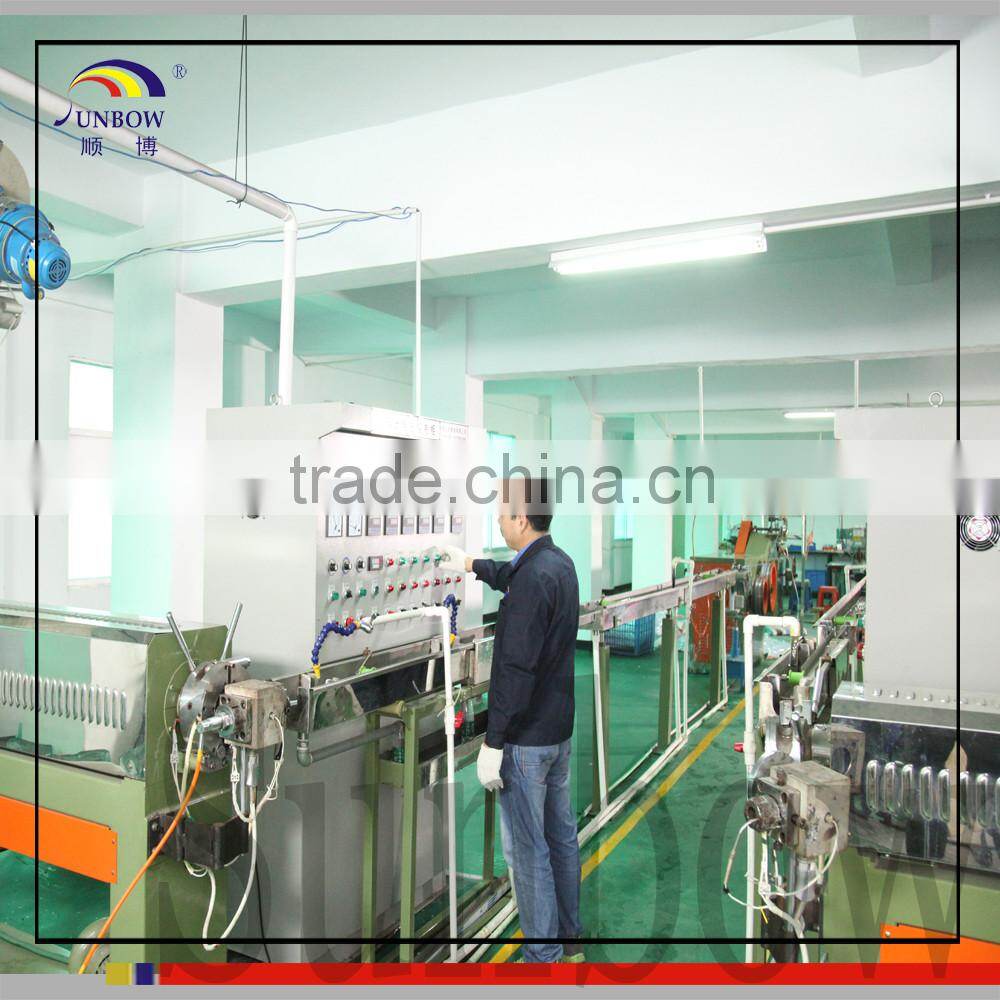

With occupied area 10000 squre meters,we had R&D engineers,had a batch of advantageous equipment and testing instruments.Now we have excess of 10 independent patents,gained high-tech enterprise in Shenzhen.
1. Why choose us?
We are the No.1 fibeglass sleeve coated silicone resin in China.
2. What material do you use?
Fiberglass yarn and silicone resin,PVC,silicone,PE,PET

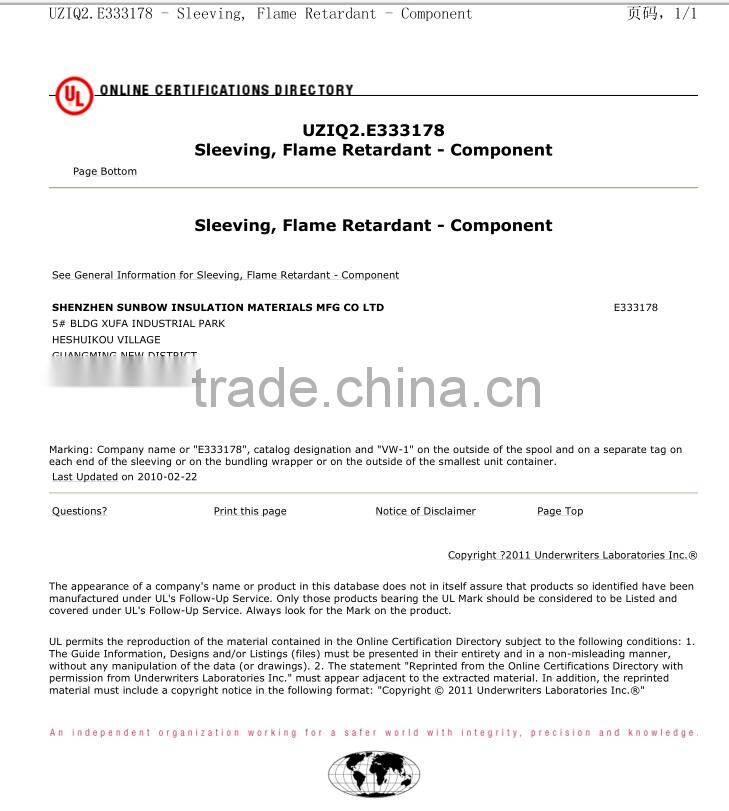

Rohos,Reach,UL certificated

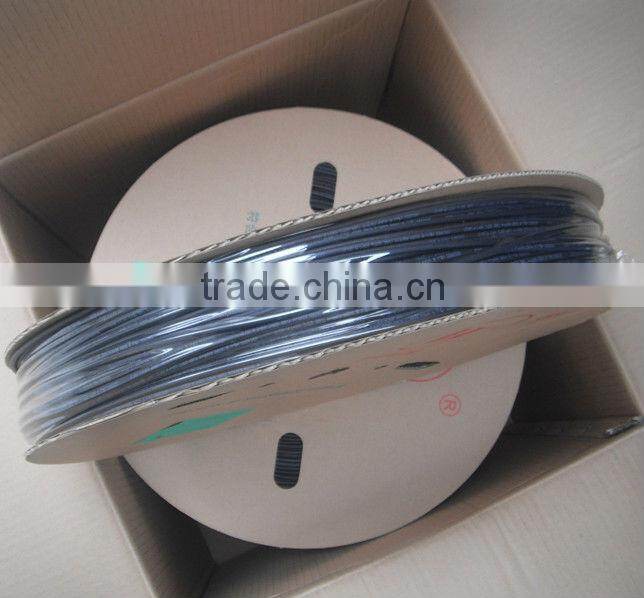

3. How's the package?
Packed by roll then rolls by carton. Also can cut and pack as requested.
4. Where is your factory?
In Shenzhen. The loading port here is Yantian or Shekou.
5. How many employees are there in your company?
More than 100.
6. How many people are there in your R&D department?
More than 10 desingers,.
7. How do you control the quality?
We have 10 QC team.
Each process has one QC. We check carefully before shipment.
8. What’s your quality guarantee?
2 years.
9. What’s your sample lead time?
can ship right now if in the stock.5 working days if the items are in stock.
10. Is the sample free charge?
Yes,it is free but the express fee should be paid by buyer.
11.What’s your mass production lead time?
2-7 working days.
12. What’s your payment terms?
L/C at sight, T/T in advance,Western Union,Paypal.
Shenzhen Sunbow Insulation Materials MFG Co.,Ltd.(Head Office)
ADD:Sunbow industrial Park ,No.8,2 second Industrial Park,Xiacun
Community,Gonming,Guangming New District,Shenzhen
Tel:+86 755 27160885/27160865
FAX:+86 755 27160896
Email:sales at
