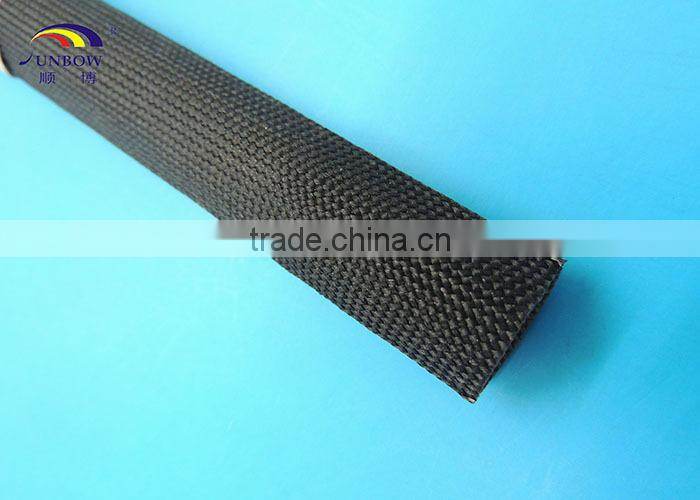

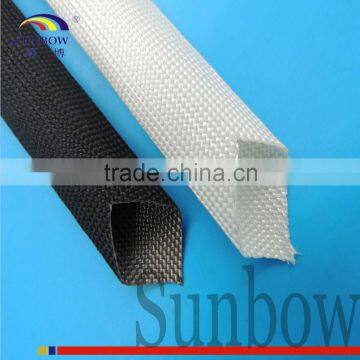

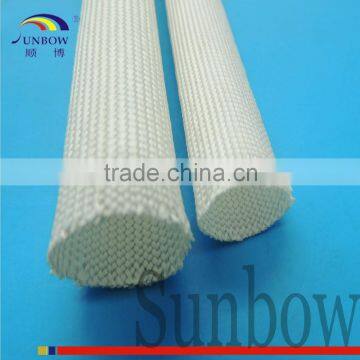

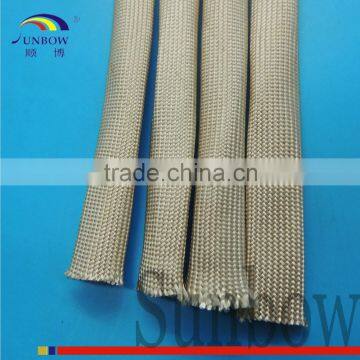

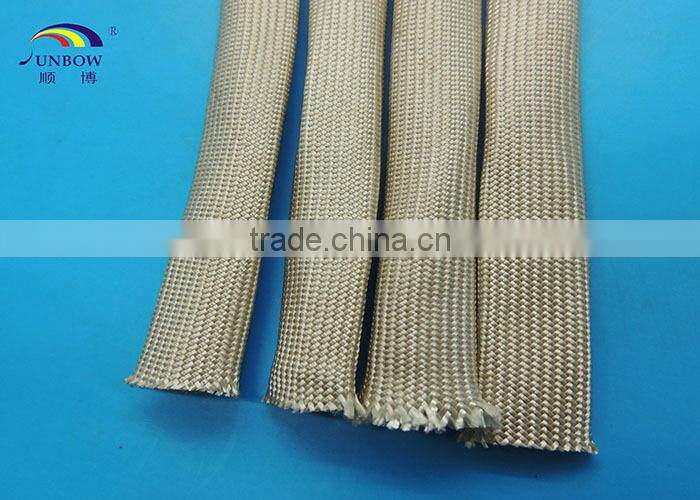

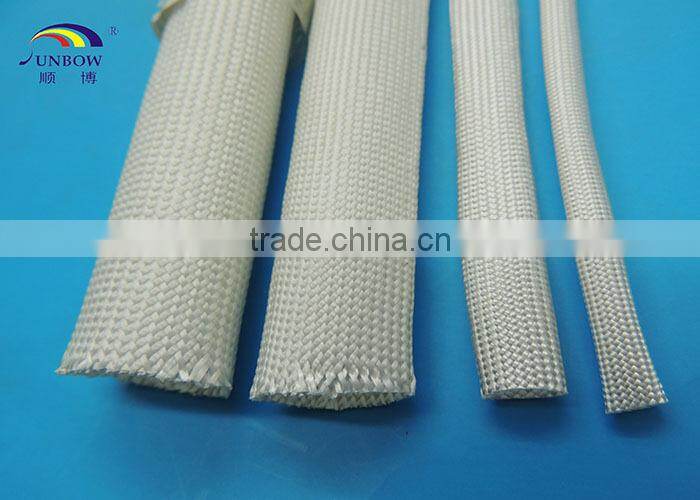

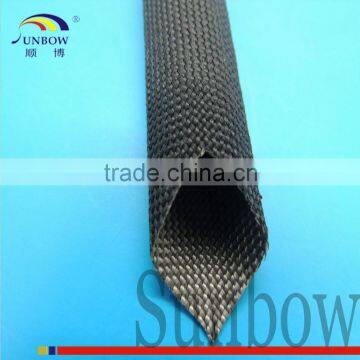

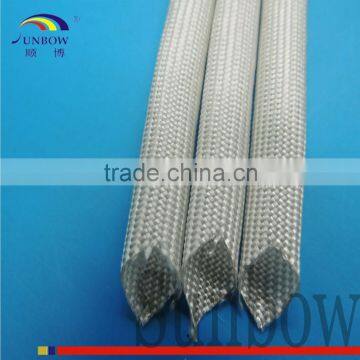

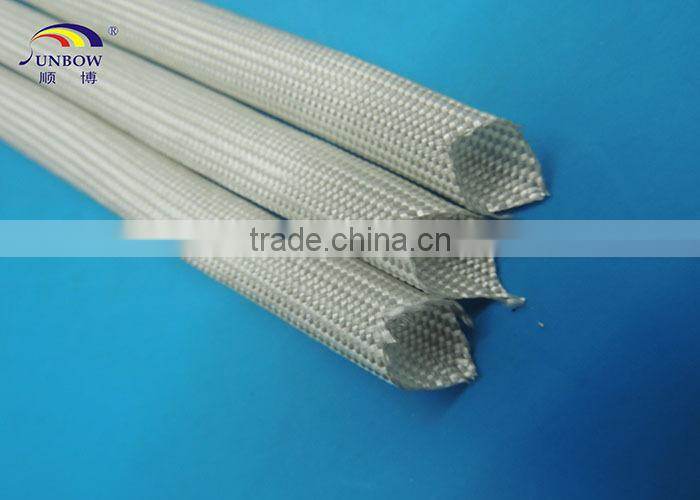

High Temperature Resistant Flexible Flame Retardant E-glass Uncoated Fiberglass Sleeving
1. Model
SB-TGS-1S
2. Working Temperature
400C
3. Structure
High Temperature Resistant Flexible Flame Retardant E-glass Uncoated Fiberglass Sleeving is braided with fiberglass processed in high temperature.
4. Characteristics
1) excellent insulated high temperature resistant property
2) flexibility
3) resistance property
4) working temperature: 400C
5) RoHS, REACH, SGS, MSDS
5. Specification
ITEM |
PERFORMANCE |
NOTE |
|
|
THERMAL ENDURANCE
|
NO INDICATION OF CRACK |
OK |
6 HRS* 400±5℃ 245±5℃ 6HRS AGING |
FIRE RESISTANCE |
VW-1 |
OK |
UL 1441 |
6. Dimension
INSIDE DIAMETER |
WALL THICKNESS (mm) |
STANDARD PACKAGE (m/roll) |
|
NOMINAL(mm) |
TOLERANCE(mm) |
||
φ0.5 |
+0.2, -0.1 |
≥0.25mm |
200 |
φ1.0 |
+0.2, -0.1 |
≥0.25mm |
200 |
φ1.5 |
+0.2, -0.1 |
≥0.25mm |
200 |
φ2.0 |
+0.2, -0.1 |
≥0.25mm |
200 |
φ2.5 |
+0.3, -0.1. |
≥0.30mm |
200 |
φ3.0 |
+0.3, -0.1. |
≥0.30mm |
200 |
φ4.0 |
+0.3, -0.1 |
≥0.30mm |
200 |
φ4.5 |
+0.3, -0.1 |
≥0.35mm |
100 |
φ5.0 |
+0.3, -0.1 |
≥0.35mm |
100 |
φ6.0 |
+0.3, -0.1 |
≥0.35mm |
100 |
φ7.0 |
+0.3, -0.1 |
≥0.40mm |
100 |
φ8.0 |
+0.3, -0.1 |
≥0.40mm |
100 |
φ9.0 |
+0.3, -0.1 |
≥0.45mm |
100 |
φ10.0 |
+0.3, -0..1 |
≥0.45mm |
100 |
φ12.0 |
+1.0, -1.0 |
≥0.45mm |
50 |
φ14.0 |
+1.0, -1.0 |
≥0.45mm |
50 |
φ16.0 |
+1.0, -1.0 |
≥0.45mm |
50 |
φ18.0 |
+1.0, -1.0 |
≥0.45mm |
50 |
φ20.0 |
+1.0, -1.0 |
≥0.50mm |
25 |
φ25.0 |
+1.0, -1.0 |
≥0.50mm |
25 |
φ30.0 |
+1.0, -1.0 |
≥0.50mm |
25 |
7. Application
High Temperature Resistant Flexible Flame Retardant E-glass Uncoated Fiberglass Sleeving has excellent insulated and high temperature resistance property, flexibility and resistance property. It is widely used in insulated, uninsulated and partially insulated conductors, busbars, leads and electrical components.
8. About SUNBOW

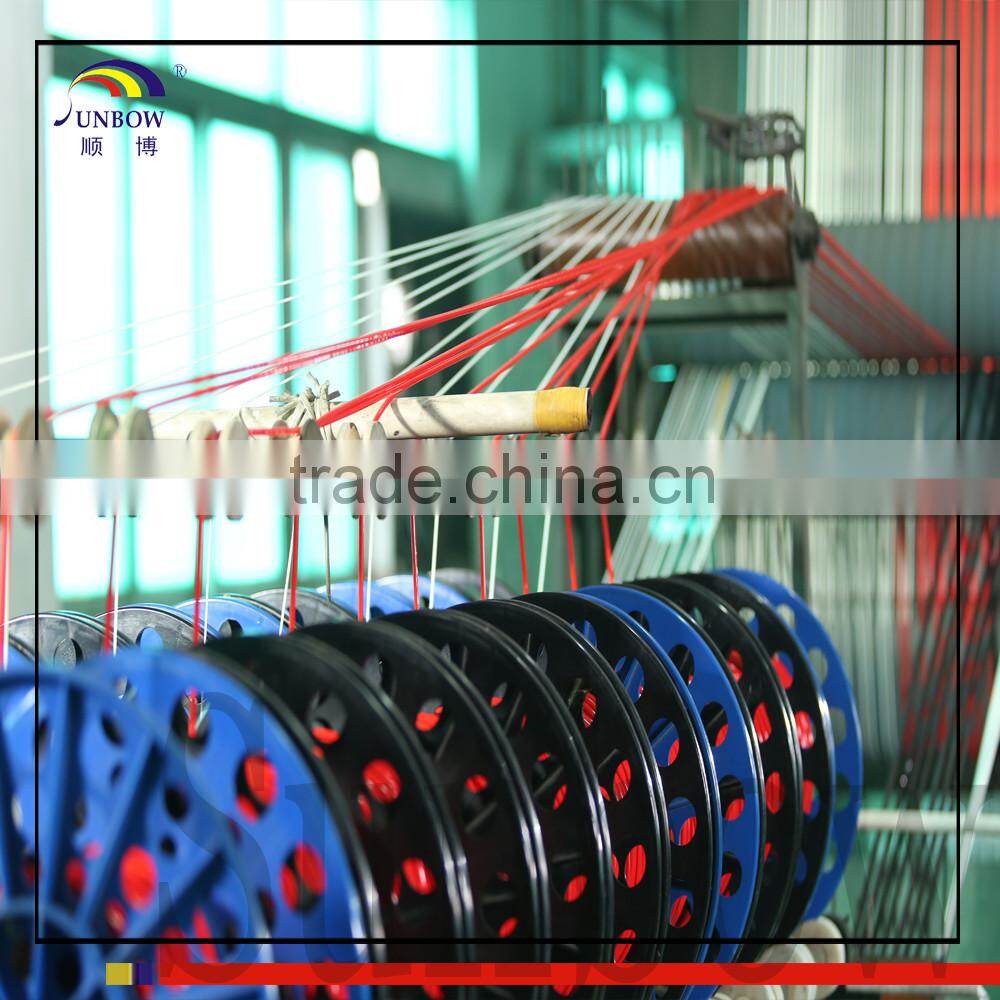

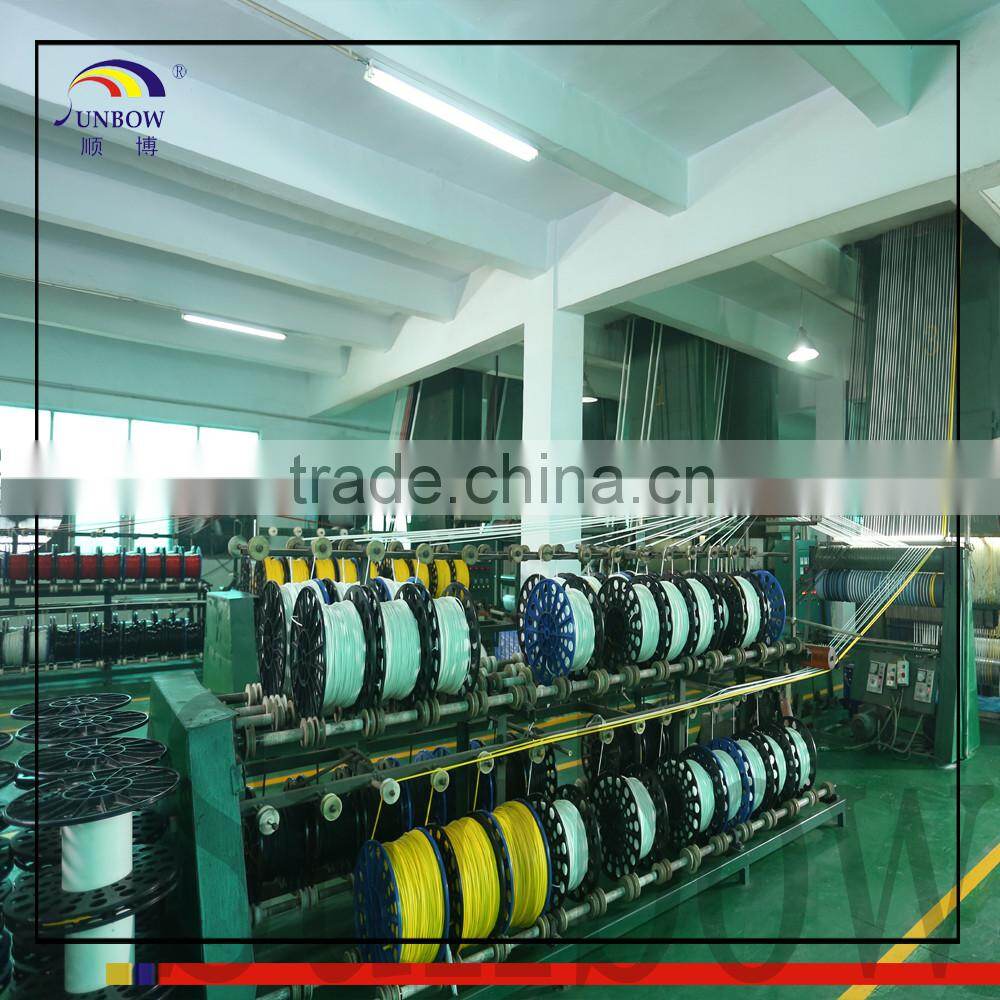

Shenzhen Sunbow Insulation Materials MFG. Co., Ltd, established in 2003, mainly engaged in the research & development, manufacture and sale of various insulation sleeving. And we had leading R&D engineers, had a batch of advantageous equipment and testing instruments. Now we had excess of 10 independent patents, gained high-tech enterprise in Shenzhen.
Our main products include fiberglass sleeving, silicone rubber tube, PVC tube, heat shrink tube, PTFE/FEP tube and so on. All our fiberglass sleeving had been obtained the UL and CSA certificates in 2010 (Cert No: E333178--UZIQ2, VW-1 for flame resistance requirement & E333177--UZFT2/8, 200C, 600V for thermal resistance requirement); Our heat shrink tube, silicone rubber tube and PTFE tube had been obtained UL certificate in 2013 (Cert. No. E360625); PVC tube had been obtained the UL certificates In in Apr.2014 (Cert.No.E467953); In May. 2012, our products successfully had been passed CQC test (Certificate No. CQC12134072554). It provides security for domestic and foreign home appliance supplier in Chinese mainland market. Till now, we are the only one fiberglass sleeving manufacturer which obtained UL, CSA, and CQC certificates. Also we are the only one manufacturer which can provide certificates for all color and maximum size range (from 0.55mm to 25.4mm). Also all our products are in conformance with the European RoHS requirements, furthermore, based on European new requirements, we re-applied and obtained German PFOA and PFOS certificates and European Reach report.
