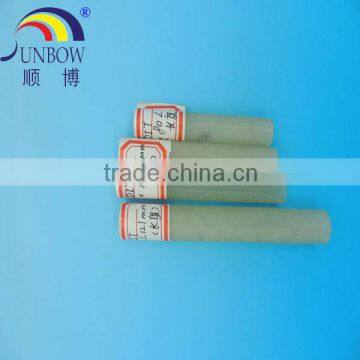

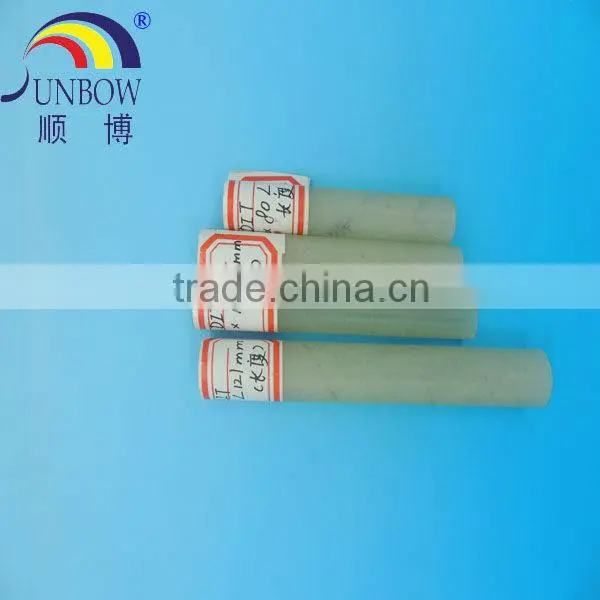

Wonderful Quality for Telescoping Fiberglass Tube

Wonderful quality for telescoping fiberglass tube

Grade: SB-DIT

Operating temperature:-40 °C~125 °C

Structure

Double unsulation tubing is manufactured with glassfiber and thermal plastic epoxyresin.It is braided by glassfiber in high pressure. It adopts reasonable helical angle and suitable tensile strength.To make sure the pressure is equal to every strand and form a stable structure. UL and ROHS compliant.

Usage

Widely applied to dynamoelectric tool, home appliances, park tool and other electricity equipments..

Product Characteristics

1.Compressing and assisting tool

2.Tube can be compressed, the other material can reuse

3.Flexible design and size

4.Low power,Reduce changing time , Environmental

Property

Dielectric withstand 14kV/mm                                Longitudinal strength: 144MPa
5000 V high voltage test for 6 seconds.                Water absorption is less than 0.1% in 24 hours

Density hits 1.85 g/m3                                           Volume resistivity:10¹⁵

Softening point:240C                                             NFW-G-10
Insulation grade H                                                  Min thickness: 0.074 mm

Temperature: 180°C                                              UL 94 Flammability is  94HB

Standard tolerance:   ID: ±0.0010” ±0.025mm        Length±0.010” ±0.25mm
                                     OD±0.0005” ±0.0125mm       Concentricity: (TIR) 0.004” 0.10mm
