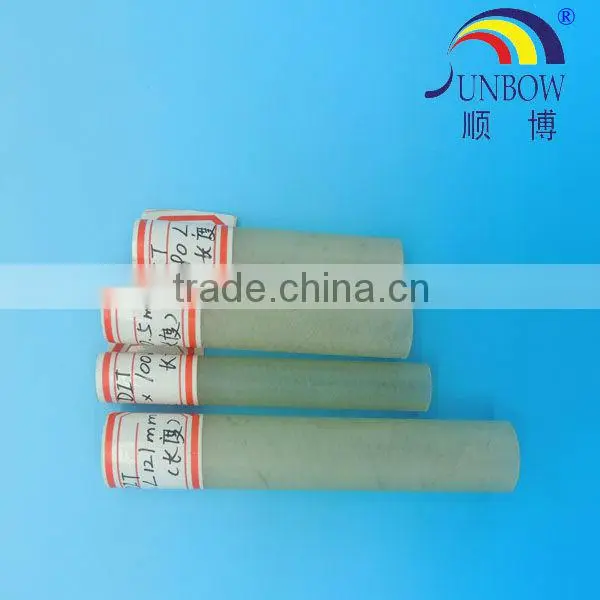

SUNBOW High Quality Glass Fiber and Epoxy Resin Double Insulation Sleeve
Grade: SB-DIT
Operating temperature:-40 °C~125 °C
Structure
SUNBOW High Quality Glass Fiber and Epoxy Resin Double Insulation Sleeve is manufactured with glassfiber and thermal plastic epoxyresin.It is braided by glassfiber in high pressure. It adopts reasonable helical angle and suitable tensile strength.To make sure the pressure is equal to every strand and form a stable structure. UL and ROHS compliant.
Usage
Widely applied to dynamoelectric tool, home appliances, park tool and other electricity equipments..
Product Characteristics
1.Compressing and assisting tool
2.Tube can be compressed, the other material can reuse
3.Flexible design and size
4.Low power,Reduce changing time , Environmental
Property
Dielectric withstand 14kV/mm Longitudinal strength: 144MPa
5000 V high voltage test for 6 seconds. Water absorption is less than 0.1% in 24 hours
Density hits 1.85 g/m3 Volume resistivity:1015
Softening point:240C NFW-G-10
Insulation grade H Min thickness: 0.074 mm
Temperature: 180°C UL 94 Flammability is 94HB
Standard tolerance: ID: ±0.0010” ±0.025mm Length±0.010” ±0.25mm
OD±0.0005” ±0.0125mm Concentricity: (TIR) 0.004” 0.10mm
