5 axis waterjet CNC waterjet for marble stone waterjet cutter machine
Waterjet Specification (including 4 parts):

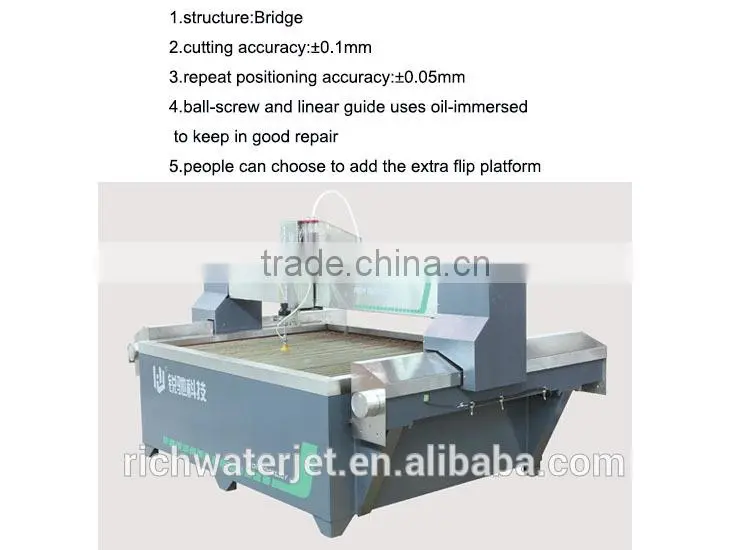

1.(Bridge)Water jet cutting working table
Item |
5 axis waterjet CNC waterjet for marble stone waterjet cutter machine |
|
Model |
RC2515 |
|
Structure |
Bridge |
|
Cutting table size |
2600*1600mm |
|
Stroke |
X-axis |
2500mm |
|
Y-axis |
1500mm |
|
Z-axis |
130mm |
CNC Controller |
Step System / AC Servo System |
|
Accuracy |
±0.1mm |
|
Cutting |
Repeatability |
±0.05mm |
|
Traverse speed |
6500/15000 mm/min |
Power supply |
220V/380VAC,50Hz |
|

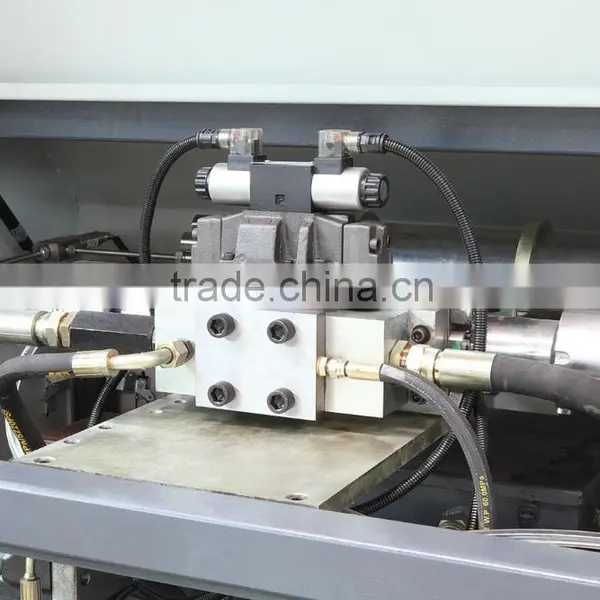

2.supercharger cabinet
Supercharger cabinet parameters | |
Item |
CNC waterjet cutting machine |
Model |
450B |
Maximum pressure |
450Mpa |
Normal operating pressure |
350-380Mpa |
Main motor power |
37KW |
Oil pump |
Variable |
Cooling |
Wind/Water |
High-pressure cylinder |
Imported |
Inlet valve |
Imported |
Ceramic rod |
Imported |
Accumulator |
Single taper |
Power supply |
415/380/220V AC 3P |
3.CNC controller
4.Automatic abrasive delivery system
Bridge waterjet cutting machine feature :
1.Adopt servo drive configuration Taiwan ball screw,linear guide can achieve seamless movement, to ensure smooth operation. To ensure the smooth transmission of the whole machine.
2.Steel base, beams imported high quality seamless steel pipe, and then empty the true heat treatment, invisible change.
3.A full range of cutting capacity, any plane curve cutting.
4.Specially reinforced bed structure, so that the cutting head does not produce vibration during high-speed operation, the machine runs smoothly, cutting speed, high precision machining.
5.The screw and guide provided by the well-known Taiwan manufacturers, X, Y-axis is the original oil-immersed screw rail lubrication, plus a waterprooof, dust-proof structure to ensure that the machining accuracy of CNC cutting platform, and maximize the service life of the screw guide.
Cutting Sample (RICH Waterjet) :
Certification (CE & SGS):
Foshan RICH Waterjet Cutting Machine Co., Ltd. is a professional manufactory for waterjet cutting machine and spare parts. We're specialized in producing waterjet cutting machine and spare parts more than 8 years, and rich maintain experience. We could offer any spare parts of waterjet cutting machine. As a professional manufacture, we can meet all your requirements with the good quality and competitive price. We will use professional efficiency to create value for you.
1. We are assure that the equipment is completely brand-new and will conform to the technical specifications.
2. The machanical guarantee on machinery and equipment shall be 12 months after the acceptance data(Vulnerable parts excluded).
3.We can offer overseas service for our client.
4.The client can send two workers to our factory for 10 days free training every year.
