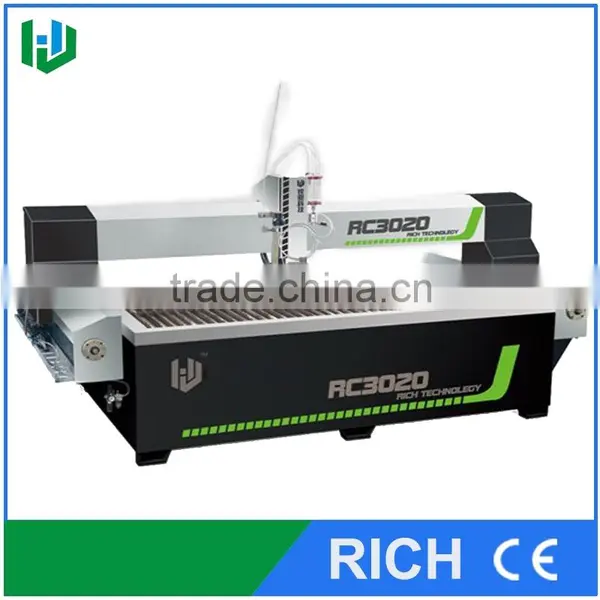

CNC water jet machinery for granite
1.(Bridge)Water jet cutting working table
2.Intensifier made in usa
3.Yaskawa servo control

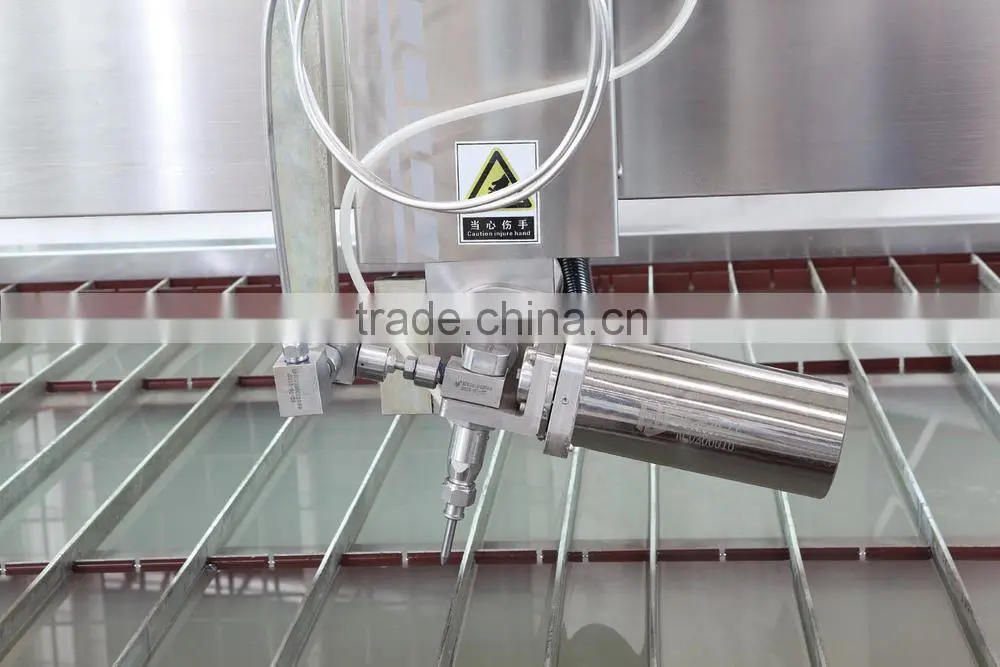

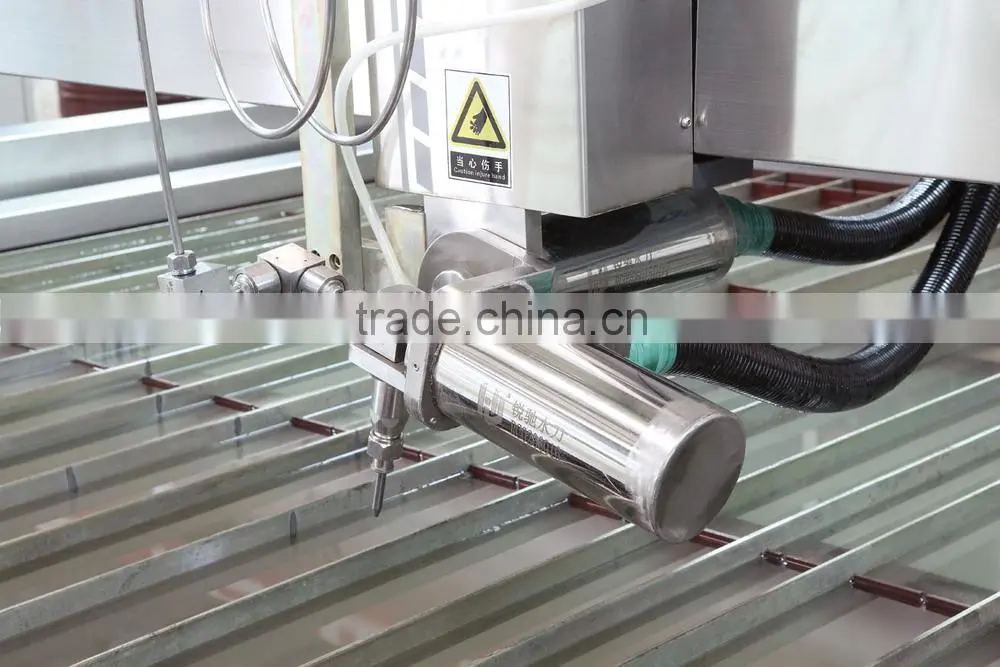

4.Waterjet cutting head
5.Automatic abrasive delivery system
Item |
CNC water jet machinery for garnite tile |
|
Model |
RC3020 |
|
Structure |
Bridge |
|
Cutting table size |
3100*2100mm |
|
Stroke |
X-axis |
3000mm |
|
Y-axis |
2000mm |
|
Z-axis |
130mm |
CNC Controller |
Step System / AC Servo System |
|
Accuracy |
±0.1mm |
|
Cutting |
Repeatability |
±0.05mm |
|
Traverse speed |
6500/15000 mm/min |
Power supply |
220V/380VAC,50Hz |
|
Turbocharger parameters | |
Item |
CNC water jet machinery for garnite tile |
Model |
450A |
Maximum pressure |
450Mpa |
Normal operating pressure |
350-380Mpa |
Main motor power |
37KW |
Oil pump |
Variable |
Cooling |
The plate cooling |
High-pressure cylinder |
Imported |
Inlet valve |
Imported |
Ceramic rod |
Imported |
Accumulator |
Single taper |
Power supply |
415/380/220V AC 3P |
Bridge feature:
1.Adopt servo drive configuration Taiwan ball screw,linear guide can achieve seamless movement, to ensure smooth operation. To ensure the smooth transmission of the whole machine.
2.Steel base, beams imported high quality seamless steel pipe, and then empty the true heat treatment, invisible change.
3.A full range of cutting capacity, any plane curve cutting.
4.Specially reinforced bed structure, so that the cutting head does not produce vibration during high-speed operation, so that the machine runs smoothly.
5.The screw and guide provided by the well-known Taiwan manufacturers, X, Y-axis is the original oil-immersed screw rail lubrication, plus a waterprooof, dust-proof structure to ensure that the machining accuracy of CNC cutting platform, and maximize the service life of the screw guide.
6.Cutting head is equipped with reliable pneumatic high-pressure water switch control device, improve production efficiency.
7.Unique sand valve design, simple structure,the flow of sand smooth, easy to repair.
8.All stainless steel protective cover, dustproof, waterproof, anti-rust, anti-corrosion, easy to use water to clean, maintain the cutting platform perennial burnished as new.
Foshan Rich Waterjet Cutting Machine Co., Ltd. is a professional manufactory for waterjet cutting machine and spare parts. We're specialized in producing waterjet cutting machine and spare parts more than 8 years, and rich maintain experience. We could offer any spare parts of waterjet cutting machine. As a professional manufacture, we can meet all your requirements with the good quality and competitive price. We will use professional efficiency to create value for you.
After-sale service commitment
A. We are assure that the equipment is completely brand-new and will conform to the technical specifications.
B. The machanical guarantee on machinery and equipment shall be 12 months after the acceptance data(Vulnerable parts excluded).
C. The damages are due to faults in design or workmanship, We will replace or repair it base on the follow situation.(Vulnerable parts excluded)
D.Installation and training: we can send technician to your place for the complete installation and training. The buyer must paid in advance for all the expense include travelling, visa, hotel, and meals etc.
Why choose RICH Waterjet Cutting Machine
A. High Quality: The accessories we use are imported from famous and high lever suppliers, that ensure a long lifetime of our machine. The no troubleshorting working time can be over 1500 hours.
B. Customize Design: Our cutting machine could be designed as customers requirement, such as the cutting head and the cutting table size.
C. Good Service: Professional waterjet cutting machine maintance manual for our clients to slove the regual maintenance. Professional service team and 24 hours online to solve your problem.
D. RICH experience and professional in waterjet cutting machine: We are the manufactory, which only specialized in producing waterjet cutting machine and spare parts for 8 years. With the rich and professional experience, we the best expert of you and your waterjet cutting machine.
E. Profession on Export: Authorized import & export license, A professional oversea sell team to service our vip clients.
F. Fast & Cheap Delivery: We have long-term cooperation forwarder, who can deliver our equipment to every corner of the world with competitive freight.
1.Skype:kittywu12201
2.Phone:+86 13827785699
