Specifications
Video Camera Laser Cutting Machine Model GLS-1080V1..DPS controlling system
2..Widely used in embroidery label industry

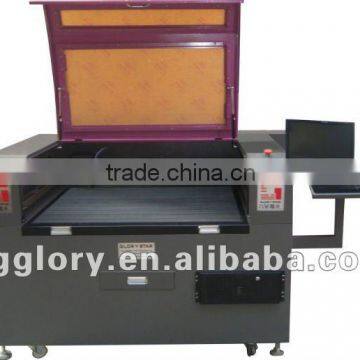

Video Camera Laser Cutting Machine Model GLS-1080V
Product Features
Glorystar has committed to new product innovation and development, hereby makes one automatically intelligent models, which adopts Panosonic 6.40 M CCD camera to automatically cut the products outline. This Camera laser cutting machine can cut efficiently and perfectly the abnormal woven or printing trademarks. This series laser machines use the best quality parts to ensure the cutting precision. This series laser cutting machines adopts DSP controlling
System, 128M saving stock, stepping motor imported from Germany, 6.40M CCD Industrial Camera, Industrial Water cooling system, six-balanced straight line guide originally imported from Japan, 70W CO2 laser made in China. Anti-Jam Industrial Computer, Image catching software and precise high resolution optical meter, 2.0USB data transferring, LCD panel.
Applicable Industry
Widely applied in computerized woven labels, irregular embroidery badges and embroideries crafts for fine and precise positioning cutting.
Applicable Material
Wood, paper, leather, choth, organic, glass, resin, acrylic, wollens, plastic, rubber, ceramic tille, crystal bowlder bamoo and other non-metal material.
Product Data
| Model | GLS-1080V |
| Laser type | Sealed CO2 laser tube |
| Laser power | 60w/70w/80w/100W/130W/150W |
| Engraving area | 1000mmx800mm |
| Engraving speed | 0-1500mm/s |
| Cutting spees | 0-800mm/s |
| Repeating lacating | ±0.05mm |
| Moving system | CNC control system |
| CCD reslolution ratio | 6.40Mpixels |
| Cooling mode | Water-cooling and protection system |
| Whole power | ≤1250w |
| Working voltage | 220±10% 50Hz(60Hz) |
| Operating temperature | 0~45ºC |
| Prerating humidity | 5%-95% |
| Controlling sofeware | Glorystar laser software |
| Graphic format supported | CAD BMP,JPG,PNG,TIF,PCX,TAG,IOO,GIF,PLT |
| Gross weight | 480KG |
