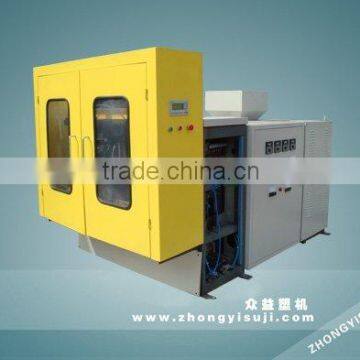

Fully Automatic Blow Molding Machine
- xingang tianjin
You May Like
Product Details
| Application | Bottle | Plastic Processed | PE | |
| Blow Moulding Type | Extrusion Blow Moulding | Automatic | Yes | |
| Place of Origin | Hebei, China | Brand Name | zhongyi | |
| Model Number | wsj-5-1 wsj-5-2 |
Product Description
Specifications
1 .fast-speed 2. save energy 3,simple operation 4, the price is cheapblow molding machines:
We have the patent: 1. rotary-type automatic plastic blow mold machine patent number: ZL 2006 2 0160012.1 2.automatic plastic blow mold machine s device of cutting the material folder within the mould. Patent number: ZL 2005 2 0123986.8
Parameter | Wsj-51 | Wsj-52 |
Single die head | Double die head | |
Max volume of product L | 2.5 | 1 |
Cieculation without material Time/hr | 700×2 | 700×4 |
Diameter of screw mm | 55/65 | 55/65 |
Ratio of L/D of screw L/D | 25: 1 | 25: 1 |
Motor power for screw kw | 7.5/15 | 7.5/15 |
Heating section of screw ZONE | 3-4 | 3-4 |
Quantity of extrusion PE Kg/hr | 40/60 | 40/60 |
Journey of opening and closing of mould mm | 160 | 160 |
Max dimension of mould mm | 160×240×280 | 160×240×280 |
Distance of the centers of the double mould head mm | 120 | |
Pressure of gass blowing Mpa | 0.6 | 0.6 |
Gas consumption m3/min | 0.8 | 0.8 |
Appearance dimension of machine mm | 2500×1500×1700 | 2500×1500×1700 |
Weight of machine kg | 1500 | 1700 |
Method of adjusting the speed | Frequency conwersion | |
Method of control | PLC computer control | |
