Specifications
plastic machine:ours is a manufacture company
1. fast-speed
2. save energy
3. simple operation and the price is cheap.
plastic machine:
We have the patent: 1. rotary-type automatic plastic blow mold machine patent number: ZL 2006 2 0160012.1 2.automatic plastic blow mold machine s device of cutting the material folder within the mould. Patent number: ZL 2005 2 0123986.8
brand |
zhongyi |
product |

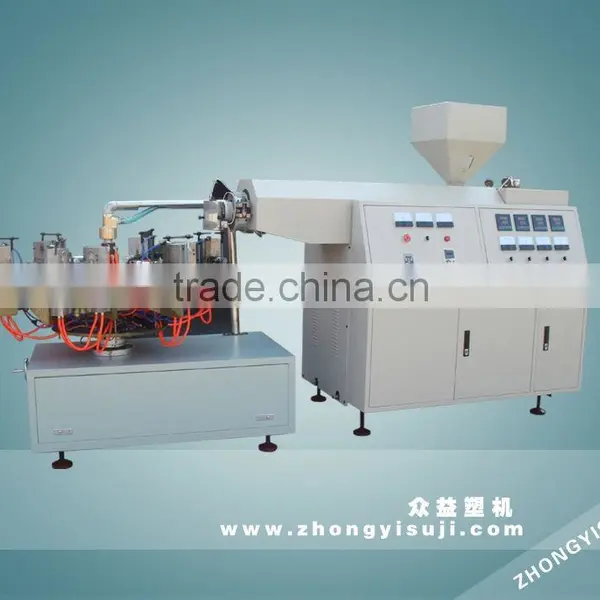

Fully automatic plastic blow molding machine |
type |
Xsj-1 |
advantages |
Fast-speed, simple operation, save energy and the price is cheap |
The composition |
Extrusion, molding, orifice-cutting, removing the tailing |
What goods it can product |
Middle-hollow bottles such as square milk bottles,round milk bottles, popsicle bottles, jelly bottles, medical medicine bottles, pesticide bottles, cosmetic bottles, huoxiangzhengqi water bottles, eyedrop bottles, test-tube, straw, plastic straw etc. |
Extruder Technical Parameter List | |
Screw diameter mm |
55 |
Long-radius rate |
1:25 |
Extrusion electric machinery power kw |
7.5 |
Screw rotation speed rpm |
20~65 |
Plasticizing capacity kg/h |
35 |
Heating power kw |
8.8 |
Molding Machine Technical Parameter List | |
Lock mould type |
Pneumatic lock mould |
Max moulding strength kg |
700 |
Mould plate dimension(width*height) mm |
130*200 |
Width between mould plate mm |
120 |
Max diameter of the machine |
80 |
Production capacity PCS/day |
30000~80000 |
Blowing pressure Mpa |
0.4 |
Cooling water pressure Mpa |
0.2~0.3 |
Gas consumption quantity m3/min |
0.4 |
Electric machinery power kw |
0.75 |
| |
