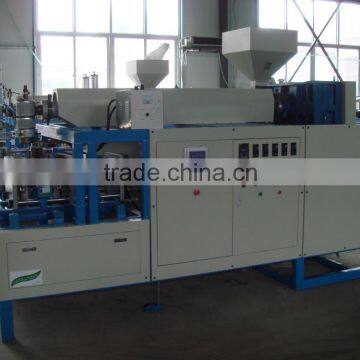

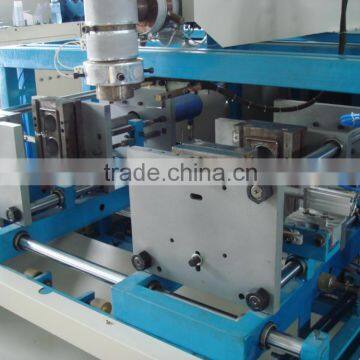

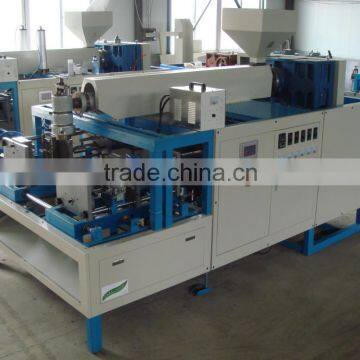

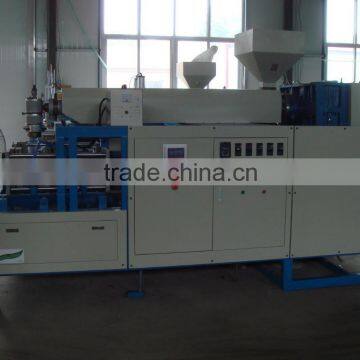

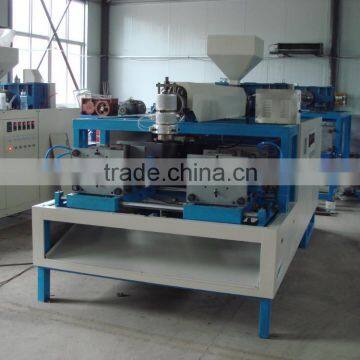

Cricket Ball Extrusion Blow Molding Machine

Name: Cricket Ball Extrusion Blow Molding Machine
Brand: zhongyi
SKU: 100593185
Availability: InStock

US$ 8,500 - 12,500 MOQ: 1 Set

Key Specifications

Condition:

New

Application:

Other, plastic cricket ball

Plastic Processed:

Cangzhou Zhongyi Plastic Machinery Company Limited

Payment & Shipping

Payment Methods:

Port of Shipment:

xingang

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Application Other, plastic cricket ball

Plastic Processed PP

Blow Moulding Type Extrusion Blow Moulding

Automatic Yes

Place of Origin Hebei, China

Brand Name zhongyi

Model Number wsj-6

Voltage 380V

Power(W) 20KW

Dimension(L*W*H) 3300mm*1650mm*1700mm

Weight 1500KG

Certification patent

Warranty one year

After-sales Service Provided Engineers available to service machinery overseas

Specifications

cricket ball extrusion blow molding machine:
1.ours is a manufacture company
2.simple operation
3.save energy
4.fast-speed

cricket ball extrusion blow molding machine:

Type	WSJ-6
The volume of the product L	≤4
The quantity of the mouth of the mould	1
The quantity of the moulds(set)	2 3 cavity each one mould
Production capacity pcs /hour	about 1800
Screw diameter mm	65
Long radius rate L/D	1:25
The max plasticizing capacity of LDPE kg/h	55
Clamping method	Hydraulic
The diameter of clamping cylinder mm	125
The mothed of cutting the pipe of material	Hot cutting knife
Journey of opening and closing of mould mm	250
Max dimension of the mould(D×W×H)mm	230×270×350
Blowing pressure Mpa	0.5-0.7
Gas consumption m3/min	0.6
The pressure of cooling water Mpa	0.2-0.3
The diameter of water circulation pipe mm	14
The electric machinery power of extruder machine kw	11
The heating power of extruder machine kw	10.5
Total power KW	21.5
Appearance dimension of machine mm(L X W X H )	3400×1750×1700
Weight kg	1200
Method of control	PLC computer control
The suitable raw material	PE/PP/PS
