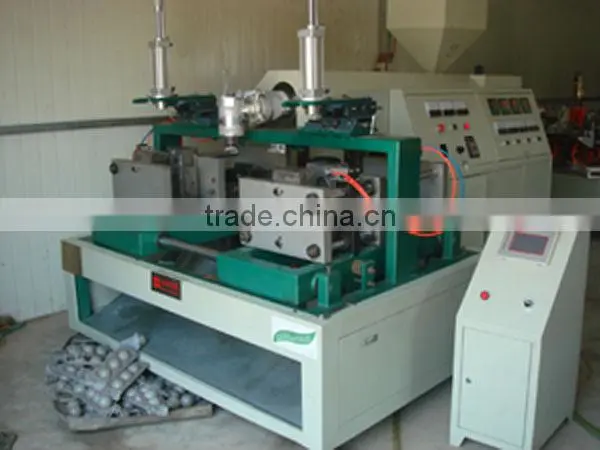

PP Hollow Ball Blow Moulding Machine

Name: PP Hollow Ball Blow Moulding Machine
Brand: zhongyi
SKU: 100592915

US$ 12,000 - 15,000 MOQ: 1 Set

Key Specifications

Condition:

New

Application:

Other, plastic ball

Plastic Processed:

Cangzhou Zhongyi Plastic Machinery Company Limited

Payment & Shipping

Payment Methods:

Port of Shipment:

xingang port tianjin

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Application Other, plastic ball

Plastic Processed PP

Screw Design Single-screw

Automatic Grade automatic

Place of Origin Hebei, China

Brand Name zhongyi

Model Number xsj-1

Power(W) 17KW

Dimension(L*W*H) 3300*1200*1500

Weight 1800KG

Certification patent

After-sales Service Provided Engineers available to service machinery overseas

Specifications

PP hollow ball blow moulding machine:
1. ours is a manufacture company
2. fast-speed
3. save energy
4. simple operation

PP hollow ball blow moulding machine:

The technology feature:

the machine adopt advaced blowing machine design ,fully automatic plastic bottle blowing equipment with micro-computer ,use the separate control cabinet from the main machine ,and reach PLC interface between operator and machine .
the adjusting speed system is frequency conversion ,besides it suit with the full-hardened decelerator box ,steady speed,low noise,durable.
efficient plasticizing screw,it can ensure the plastic plasticizing abundant and uniform .
clamping mould ,transfer mode system,adopt beam arm,three-bit,use linear ball bearings,high precision ,small resistance ,fast speed .
blowing needle holder ,adopt “hand style platform clamp “ method ,easy and precise to adjust ,stable performance.

Type	WSJ-6B-Y
the diameter of plastic sea balls mm	38-120
The quantity of die head	1/2
the center distance of the die head mm	120
The quantity of the mould ( set )	2
Production capacity( without material ) pcs/hour	720
Screw diameter mm	65
long radius rate L/D	1:25
The max plasticizing capacity of HDPE kg/h	55
clamping method	Hydraulic
The mothed of cutting the pipe of material	Hot cutting knife
Journey of opening and closing of mould mm	200-450
The max dimension of the mould (T×W×H)mm	200×270×350
The adjustment range of the thickness of the mould mm	160-200
Blowing pressure Mpa	0.6
Gas consumption m3/min	0.3
Hydraulic power KW	4
The electric machinery power of extruder machine KW	7.5
The heating power of extruder machine KW	8.5
Appearance dimension mm(LXWXH)	3300×1650×1700
Total weight kg	1500
method of control	PLC computer control
the suitable raw material	PE/PP
