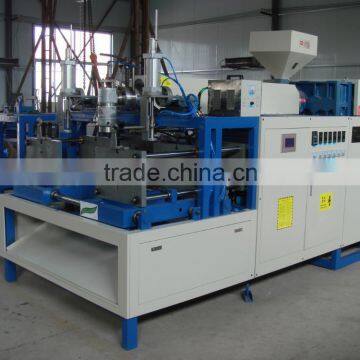

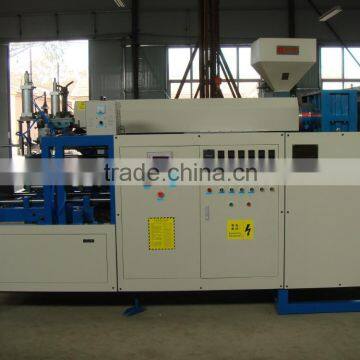

5L HDPE Pot Blow Moulding Machine

Name: 5L HDPE Pot Blow Moulding Machine
Brand: zhongyi
SKU: 100592391
Availability: InStock

US$ 10,000 - 13,000 MOQ: 1 Set

Key Specifications

Condition:

New

Application:

Bottle

Plastic Processed:

Cangzhou Zhongyi Plastic Machinery Company Limited

Payment & Shipping

Payment Methods:

Port of Shipment:

xingang port

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Application Bottle

Plastic Processed PE

Blow Moulding Type Extrusion Blow Moulding

Automatic Yes

Place of Origin Hebei, China

Brand Name zhongyi

Model Number wsj-6

Voltage 380V

Power(W) 16KW

Dimension(L*W*H) 3100*1400*1600mm

Weight 900KG

Certification patent

Warranty one year

After-sales Service Provided Engineers available to service machinery overseas

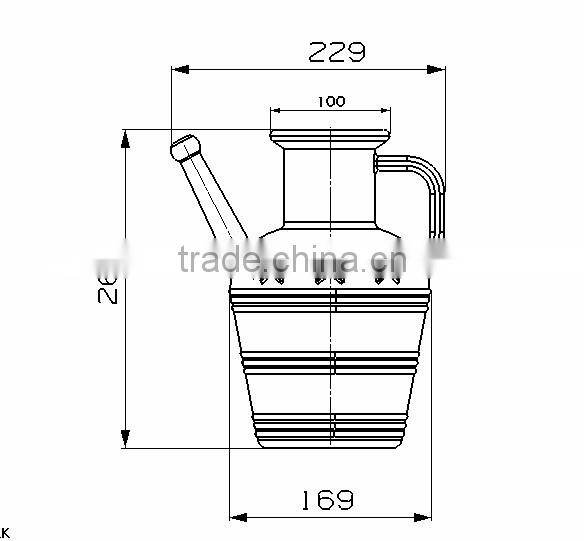

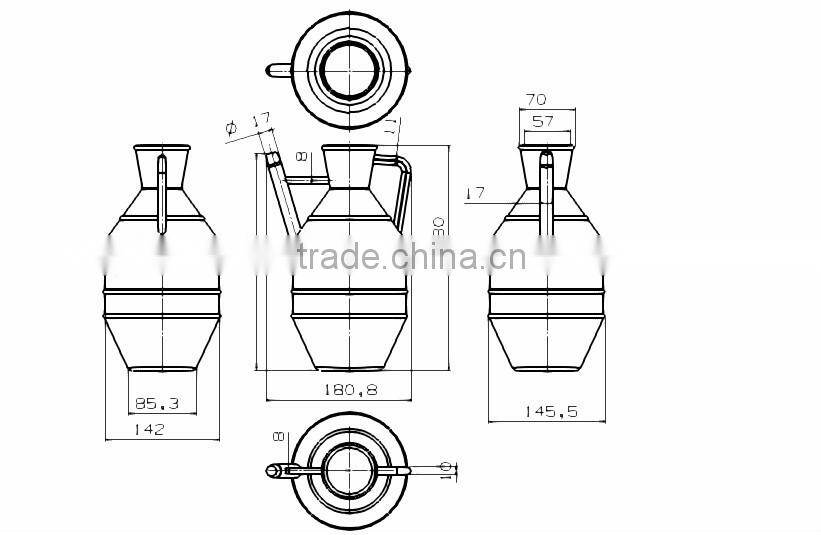

5L HDPE pot blow moulding machine:

Type	WSJ-5	WSJ-6	WSJ-7
The max volume of the product L	1.5	5	10
The quantity of the die head	1/2/3/4
The quantity of the moulds(set)	2
Production capacity(without material)pcs/h	1500	1200	1000
Screw diameter mm	55	65	80
Long radius rate L/D	1:25	1:25	1:25
The max plasticizing capacity of HDPE kg/h	40	55	70
Clamping method	hydraulic /booster cylinder
The mothed of cutting the pipe of material	Hot cutting knife
Journey of opening and closing of mould mm	160-360	200-430	230-480
The max dimension of the mould(T×W×H)mm	160×210×300	200×270×350	230×310×400
The adjustment range of the thickness of the mould mm	120-160	160-200	190-230
Blowing pressure Mpa	0.4-0.6	0.4-0.6	0.5-0.7
The electric machinery power of extruder machine KW	7.5	11	15
The heating power of extruder machine KW	8.5	10.5	13
Appearance dimension mm(LXWXH)	3100×1400×1600	3300×1650×1700	3400×1750×1700
Total weight kg	900	1100	1200
Method of control	PLC computer control
The suitable raw material	PE/PP/PS/PVC
