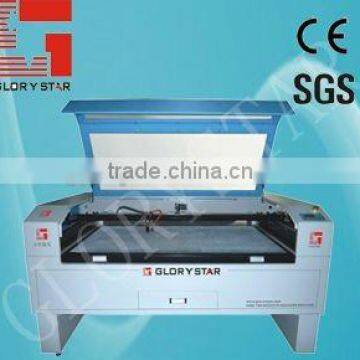

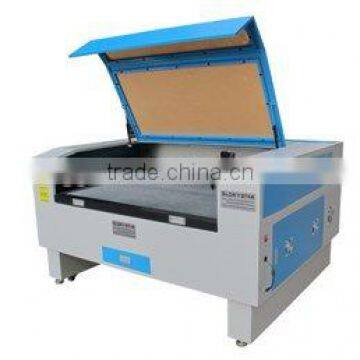

1290/1490/1610 acrylic, leather, glass laser cutting and engraving machine price
CO2 Laser cutting/engraving machines series are very popular in the market around the world. They has the high spped, high cutting accuracy and high stability. The quality and price ratio is very high. laser cutting machine
This series laser cutting/engraving machines is our general and mature model, use optimized controlling software, operation is easy and human friendly controlling panel. Customized according to customer's requirements.
Main Configuration
1.Co2 laser tube( 60w/70w/80w/100w/130/150w/200w/300w)
2.laser power supply
3.cpu board
4.leadshine stepper motor
5.driver
6.lens and mirror
7.water chiller
8.air compressor
9.exhaust blower
10.belt outer guide rail
Applicable industry
Widely applied on costume accessories, food and drink packaging, garment and cloth leather, crafts, rubber, electronic parts, nameplates, construction ceramic, pharmaceutical packaging.
Applicable Materials
wood, paper, cloth ,fabric, plastic, leather, pu leather, glass, acrylic, ceramic, rubber, crystal, jade, bamboo and other non-metal materials.
Technical Data
|
Parameter |
Model | GLC-6040 | GLC-9060 | GLC-1080 | GLC-1290 | GLC-1490 | GLC-1610 |
| Working area(mm) | 600*400 | 900*600 | 1000*800 | 1200*900 | 1400*900 | 1600*1000 | |
| Laser power | 60W/80W/100W/130W/150W | ||||||
| Laser type | CO2 glass tube | ||||||
| Control system | DSP | ||||||
| Drive mode | Stepping Motor Microstep drive | ||||||
| Cooling mode | Water-cooling and protection system | ||||||
| Working speed | 0-1000(mm/s) | ||||||
| Graphics mode | Plt, Dxf, Bmp, Pcx, Dst, etc | ||||||
| Platform types | Honeycomb table, blade strip table (Optional) | ||||||
| Repeatability precision | ≤ 0.02mm | ||||||
| Working voltage | AC 220± 10%/50-60Hz | ||||||
| Overall power consumption | ≤ 1250w | ||||||
| N. W. | 200KG | 220KG | 340KG | 400KG | 500KG | 530KG | |
| G. W. | 290KG | 320KG | 440KG | 520KG | 600KG | 660KG | |
| Package Dimension(mm) | 1630*960*1270 | 1850*1250*1270 | 1700*1500*1270 | 1900*1600*1270 | 2100*1600*1270 | 2240*1660*1270 | |
| Body configurations | Optical design | Adopting the imported lens and mirros to ensure long lifetime of laser tube and high cutting efficiency | |||||
| Mechanical design | 1. The patented body adopts the most solid design which can ensure no deformation long time operation and transportation. | ||||||
| 2. Adopts imported stepping motor and driver with its unique high speed outer guide rail. | |||||||
| Software design | 1. Adopts International advanced DSP control technology, ensure high cutting engraving speed, high accuracy and high stability. | ||||||
| 2. The machine system can be commanded by U disk without PC connection. | |||||||
| 3. Can be directly support Autocad, Coreldraw software or their output, the documents like PLT, PCX, DXF, BMP etc., | |||||||
| Working Environment | Operating Humidity | 5%-95% | |||||
| Operating Temperature | 0-45º C | ||||||
| Applications | Applicable industry | Applicable for the garment, toy, handbag, glove industries, also inclusive of precise cutting and engraving like acrylic and MDF board, mold, advertisements, decoration, electrical appliance and plastic industries. | |||||
| Materials | Wood, paper, leather, cloth, organic glass, resin, acrylic, woolens, plastic, rubber, bamboo, and other non metal materials |
||||||
sample show
1- 13 Years experience in manufacturing laser equipments.
2- Glory Laser exports to over 70 countries & regions .
3- Hold "NATIONAL HI-TECH Enterprise" certificate from China.
4- Optical Research Base Of Nanyang University.
our workshop
------( fiber laser cutting machine ) related honor certifications
NATIONAL HI-TECH enterprise
National software enterprise
Europe CE Safety certified
Passed ISO9001:2000 international quality system
SGS approved
United States FDA appoved
Possess multiple patent certificates and software copyright
Optical research base of Beijing university
OUR exhibition
Customer Visiting
warmly welcome you to visit our company, and sincerely waiting for your join
