Home > Products > fruit jelly bottle blowing machine > Rotary Soft Fruit Jelly Bottles Blowing Machine

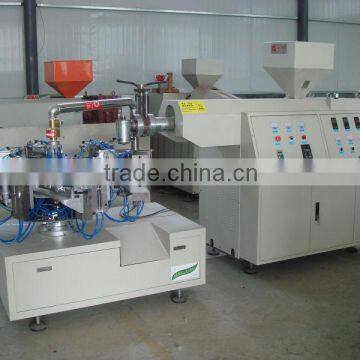

Rotary Soft Fruit Jelly Bottles Blowing Machine
- XINGANG TIANJIN
- T/T
You May Like
Product Details
| Condition | New | Application | Bottle | |
| Plastic Processed | PP | Blow Moulding Type | Extrusion Blow Moulding | |
| Automatic | Yes | Place of Origin | Hebei, China | |
| Brand Name | zhongyi | Model Number | xsj-1, xsj-2 ,xsj-3 | |
| Voltage | 380V | Power(W) | 17KW | |
| Dimension(L*W*H) | 3300*1200*1500mm | Weight | 1800KG | |
| Certification | patent | Warranty | one year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
rotary soft fruit jelly bottes blowing machine:1.ours is a manufacture company
2.fast-speed
3.simple operation
4save energy
rotary soft fruit jelly bottles blowing machine:
We have the patent: 1. rotary-type automatic plastic blow mold machine patent number: ZL 2006 2 0160012.1 2.automatic plastic blow mold machine s device of cutting the material folder within the mould. Patent number: ZL 2005 2 0123986.8 |
Technical parameter | XSJ-1 | XSJ-2 | XSJ-3 |
Equipment composition | 6-working-position blow machine with55 extruder machine
| 4-working-position blow machine with-45 extruder machine
| 8-working-position blow machine with 65 extruder machine
|
Max volume of the product ml | 1200 | 800 | 1500 |
Max diameter of the product mm | 100 | 80 | 110 |
Mould dimension (L*W*H) mm | 120×118×300 | 120×118×300 | 120×118×300 |
Production capacity PCS/day | 20000-120000 | 15000-80000 | 20000-160000 |
Gas consumption quantity m3/min | 0.4 | ||
Screw diameter mm | 55 | 45 | 65 |
Long radius rate | 251 | ||
