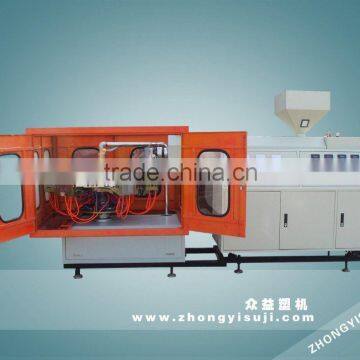

Reagent Bottles Blow Molding Machine

Name: Reagent Bottles Blow Molding Machine
Brand: zhongyi
SKU: 100590151
Availability: InStock

US$ 8,000 - 12,000 MOQ: 1 Set

Key Specifications

Condition:

New

Application:

Other, bottle

Plastic Processed:

Cangzhou Zhongyi Plastic Machinery Company Limited

Payment & Shipping

Payment Methods:

Port of Shipment:

xingang port tianjin

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Application Other, bottle

Plastic Processed PE

Screw Design Single-screw

Automatic Grade automatic

Place of Origin Hebei, China

Brand Name zhongyi

Model Number xsj-1

Power(W) 17KW

Dimension(L*W*H) 3300*1200*1500

Weight 1800KG

Certification patent

After-sales Service Provided Engineers available to service machinery overseas

Specifications

reagent bottles blow molding machine:
1. ours is a manufacture company
2. fast-speed
3. simple operation
4. save energy

reagent bottles blow molding machine:

Technical parameter	XSJ-1	XSJ-2	XSJ-3
Equipment composition	6-working-position blow machine with 55 extruder machine	4-working-position blow machine with 45 extruder machine	8-working-position blow machine with 65 extruder machine
Max volume of the product ml	1200	800	1500
Max diameter of the product mm	100	80	110
Mould dimension ( L* W * H ) mm	120×118×300	120×118×300	120×118×300
Production capacity PCS / day	20000-120000	15000-80000	20000-160000
Gas consumption quantity m3 / min	0.4
Screw diameter mm	55	45	65
Long radius rate	25 : 1
Plasticizing capacity kg / h	40	25	60
Electric machinery power kw	7.5	5.5	11
Total power kw	17	14	22
Weight kg	1800	1500	2000
Appearance dimension ( L * W * H ) mm	3300×1200×1500	3000×1200×1500	3400×1300×1600
The suitable raw material	PE / PP / PS / PVC
The method of adjusting the speed	Frequency conversion
