Help CenterHigh Efficient RV Series Combine Harvester Gearbox With Stirling Motor
Related Products
-
RV Series Worm Gearbox(RV25-RV150)/small Worm Gearbox for Drill HeadNegotiableMOQ: 1 Set -
China 2015 Greatly Welcomed Speed Reducer RV Small Worm Mini Sewing MachineNegotiableMOQ: 1 Set
-
Changzhou Machinery Competitive Price Gearbox rv Series Worm Drive Gear ReducerNegotiableMOQ: 1 Set
-
Changzhou Machinery Industrial Power Transmission Mechanical RV Series Worm Motor Gearbox With Output FlangeNegotiableMOQ: 1 Set
-
Changzhou Machinery RV Series Worm Gearbox With FlangeNegotiableMOQ: 1 Set
Type: |
Worm Gear Speed Reducer gearbox |
Model: |
NMRV25-150 |
Ratio: |
1:7.5,10,15,20,25,30,40,50,60,80,100 |
Color: |
Blue/Silver Or On Customer Request |
Material: |
Housing: Die-Cast Aluminum Alloy |
Worm Gear-Copper-10-3# | |
Worm-20CrMn Ti with carburizing and quenching, surface harness is 56-62HRC | |
Shaft-chromium steel-45# | |
Packing: |
Carton and Wooden Case |
Bearing: |
C&U Bearing |
Seal: |
NAK SKF |
Warranty: |
1 Year |
Input Power: |
0.06KW,0.09KW,0.12KW,0.18KW,0.22KW,0.25KW,0.37KW,0.55KW, 0.75KW,1.1KW,1.5KW,2.2KW,4KW,5.5KW,7.5KW |
Usages: |
Industrial Machine: Food Stuff, Ceramics, CHEMICAL, Packing, Dyeing, |
IEC Flange: |
56B5,56B14,63B5,63B14,71B5,71B14,80B5,80B14,90B5,90B14,100B5, 100B14,112B5,112B14 |
Lubricant: |
Synthetic & Mineral |
Advantages:
1.Small size, compact, lightweight, right angle for mounting
2.Housing is made of die-cast iron or aluminumn alloy
3. Worm box adopts square box shape, appearance attractive, structure compact
4. Runs steadily with low noise
5.High reliability and high efficiency
6.Specification: 25-150 ten types totally (25-90 are aluminum alloy housing, others are casting iron housing)
7.Transmission ratio: 7.5-100 (specification 25 without 80, 100 transmission ratio, specification 30 without 100 transmission ratio)

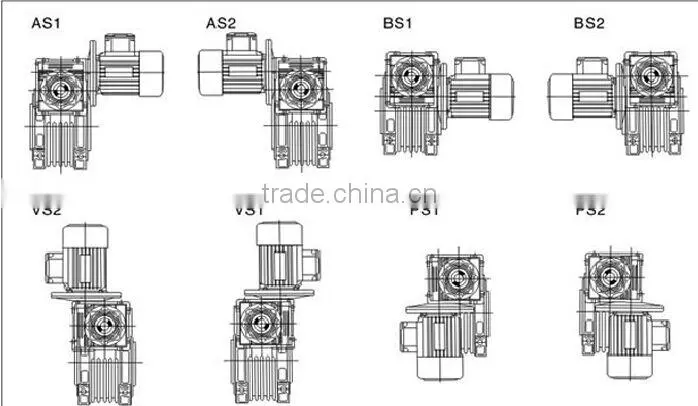

8. Output shaft: Hollow shaft, solid shaft, involute solid shaft, involute hollow shaft, worm can also be output shaft.
9. Input mode: Input shaft, directly-mounted motor and input flange worm speed reducer motor
10.High radiating efficiency.
11.Good-looking appearance, durable service life.
12.CE and ISO9001:2008 certifications
other products
OUR ADVANTAGES
-High performance
-high carrying capacity
-transmit smoothly
-low noise
Changzhou Mingdi machinery Co.,Ltd. is local at the most prosperous area ---JIANGSU Changzhou city. We near to Shanghai just 1 hour train from Shanghai to our city. Here is the focus of Gearbox and Gears production. We produce cylindrial gearbox and the gears. We have complete processing equipment, strong technical team to ensure our products with stability, low noise characteristic. Our products supply to electrical machinery, plastic extrusion machinery, railway engineering machinery and metalurgical machinery which are OEM manufacturers. Also,we welcome your customized requirment.
1. We provide kinds series of bevel gears, series of Gearboxes, series of Reducers.
2. We provide OEM products, and we also like to produce products according to your drawings, or your parameter.
3. The peroid of our warranty is 1 year.
4. FOB, CIF, EX-WORKS delivery term based on your choice.
5. Advantage processing equipments and test equipments ensure our quality.
Q: What's your business type?
A: We are a manufacturer, and also have import & export trading right.
Q: What's your main products?
A: Power transmission gearboxes and gears.
Such as: industrial HB gearbox, worm/helical/bevel/planetary gearbox, heavy duty gearbox, gearbox for crane/extruder/excavator/rolling mill/cement mill, etc.
Q: What about your warranty?
A:12 to 18 months warranty according to different products and lifetime service.
Q: What's your MOQ?
A: 1 set for different kinds of gearboxes, and 5 pcs for gears.
Q: Can you supply customized gearboxes or gears?
A: Yes, we can customize any kinds of gear and gearbox as per your requirement or drawings.
Q: What information should be given, if I want to buy gearbox?
A: Gearbox ratio, gear type, speed ratio, input / output speed, rated power, mounting position, More details will be welcomed
