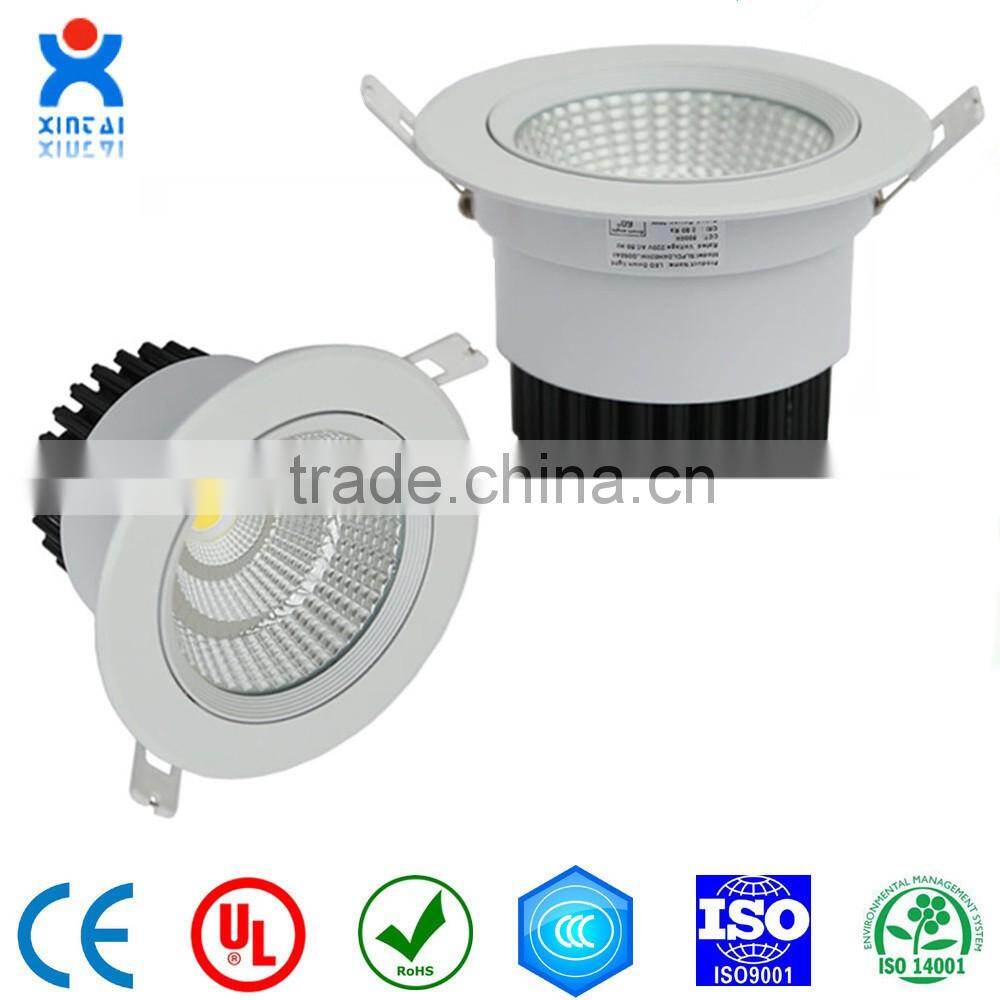

High Quality Round Shape 5 inch 12W/15W/20W LED Downlight
1.Product features:
1, LED Type:COB LED Chip,using the latest technology for chip package, high grade silicone heat transfer compound. High luminous flux, Low thermal resistance, long lifespan 50000 hours.
2, LED Driver:LED constant current driving power supply, wide input voltageAC85-265V, applied to global country’s electricity voltage. High reliability, quick star, star time<0.5S, no flicking, that protect humen eyes.
3, Heat dissipation: Adopt integrated heat processed aluminum radiator, safe and reliable, high thermal conductive,surface treated by powder coated, compact appearance and won’t fade.
4, Lamp body:Use high purity aluminum, having excellent heat dissipation
5,Optical:High color rendering index (Ra>80),showing the most intuitive and clear lighting effects, no flicking, adjustable angle.
6, Environment-Friendly: No mecury,no lead,no UV, no IR radiation
7, Energy saving:More than 60% energy saving over traditional fluorescent lamp.
2.Technical Parameters
|
Model No Description |
XT-DB-012 |
XT-DB-015 |
XT-DB-020 |
Power(W) |
12W±10% |
15W±10% |
20W±10% |
Input voltage(V) |
AC90-260 50/60Hz |
AC90-260 50/60Hz |
AC90-260 50/60Hz |
Power factor (PFC) |
>0.95 |
>0.95 |
>0.95 |
Initial luminous(LM) |
>840 |
>1050 |
>1400 |
Light efficiency(LM/W) |
>70 |
>70 |
>70 |
Beam angle(Θ) |
15,24,38,60 |
15,24,38,60 |
15,24,38,60 |
CCT(K) |
2700-6500K |
2700-6500K |
2700-6500K |
CRI(Ra) |
>80 |
>80 |
>80 |
Color of lamp body |
White / White+black |
White / White+black |
White / White+black |
Angle adjustable |
12º adjustable |
12º adjustable |
12º adjustable |
Dimmable |
---- |
---- |
---- |
Materials |
Aluminum |
Aluminum |
Aluminum |
IP Rate |
IP20 |
IP20 |
IP20 |
Lamp size(mm) |
Φ138*H93 |
Φ138*H93 |
Φ138*H117 |
Cut hole(mm) |
Φ120 |
Φ120 |
Φ120 |
Working temperature |
-25°~+45° |
-25°~+45° |
-25°~+45° |
Storage temperature |
-30°~+50° |
-30°~+50° |
-30°~+50° |
Warranty |
3 years |
3 years |
3 years |

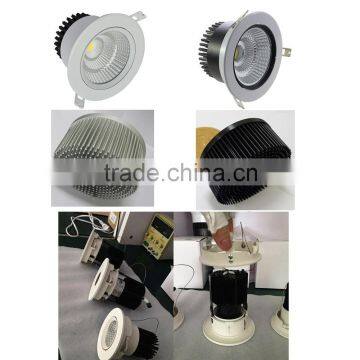

3.Product Photo

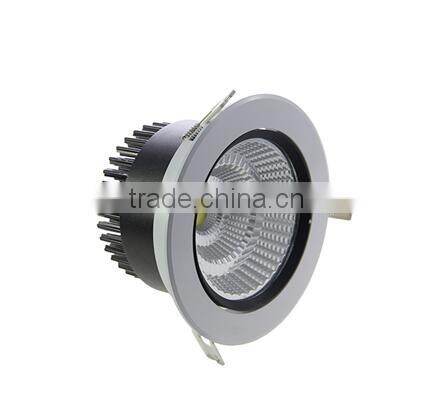

Black Color

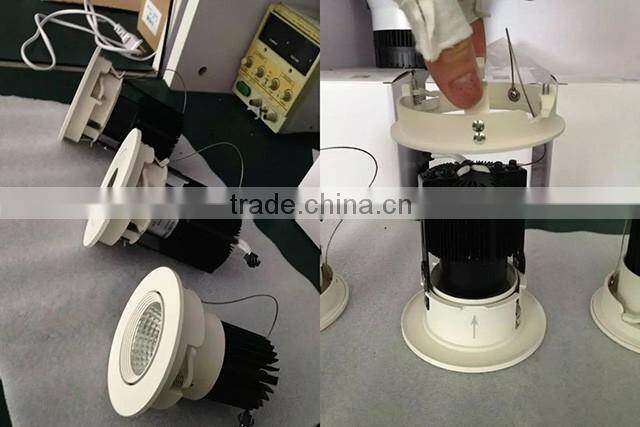

Cold forging radiator

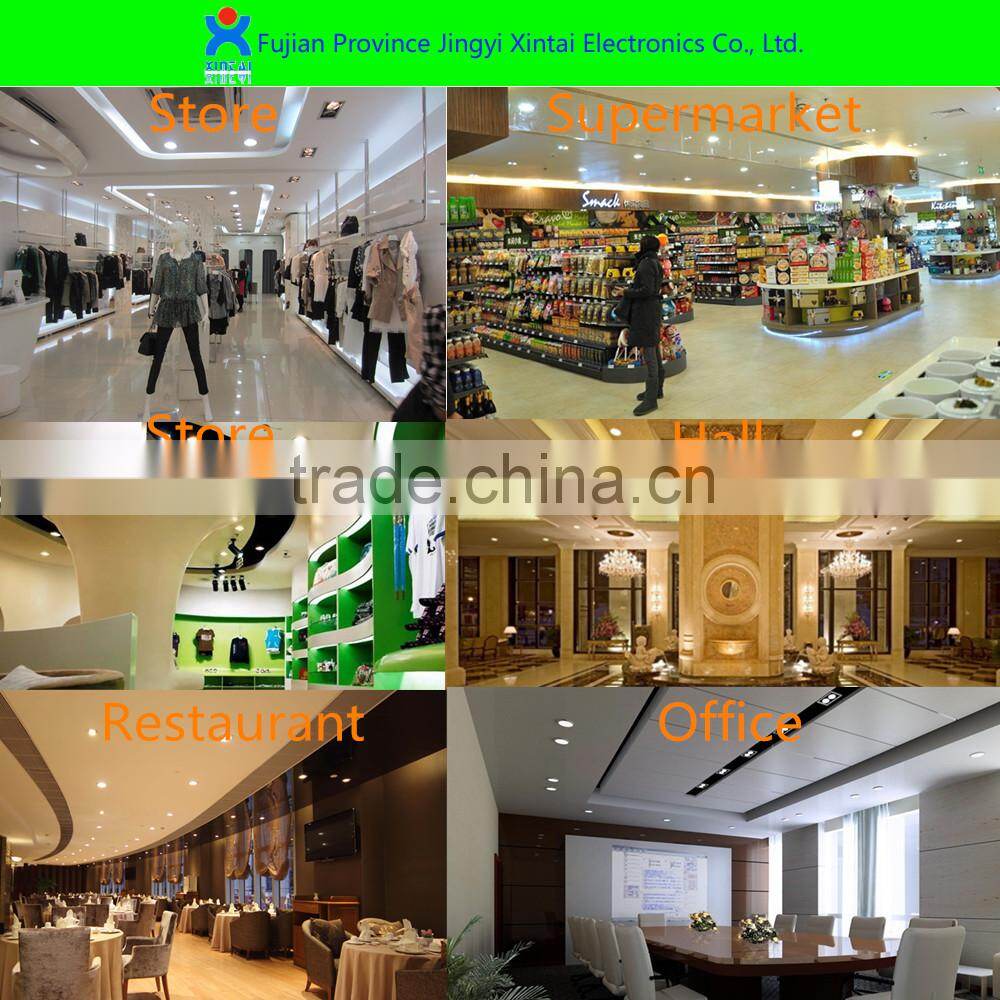

4.Application area
ideal for exhibition, museum, office, shopping mall, hotel,household, jewellery, garments and display
5. Package
|
Model No Description |
XT-DB-012 |
XT-DB-015 |
XT-DB-020 |
Net weight(g/pcs) |
569 |
569 |
769 |
Gross weight(g/Box) |
639 |
639 |
839 |
Inner Box(mm) |
L:170*W:150*H:120 |
L:170*W:150*H:120 |
L:170*W:150*H:150 |
Outer carton(mm) |
L:530*W:470*H:378 |
L:530*W:470*H:378 |
L:530*W:470*H:470 |
Quantity(PCS/CTN) |
27 |
27 |
27 |
Gross weight(Kg/CTN) |
18.4 |
18.4 |
23.7 |
CBM(m³/CTN) |
0.094 |
0.094 |
0.117 |

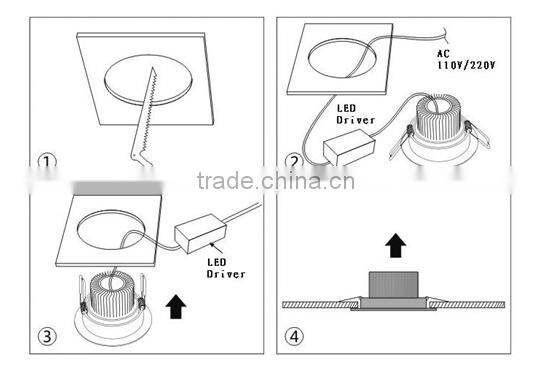

5.Installation:
1,Tools to open the appropriate holes at the ceiling ;
2,Connect input and output wire with electric supply and light fixture, make well protection;
3,Make the spring clasp upward and push the light fixture into the hole;
4,Adjust lighting angle, power on and test.(Please refer to below diagram)

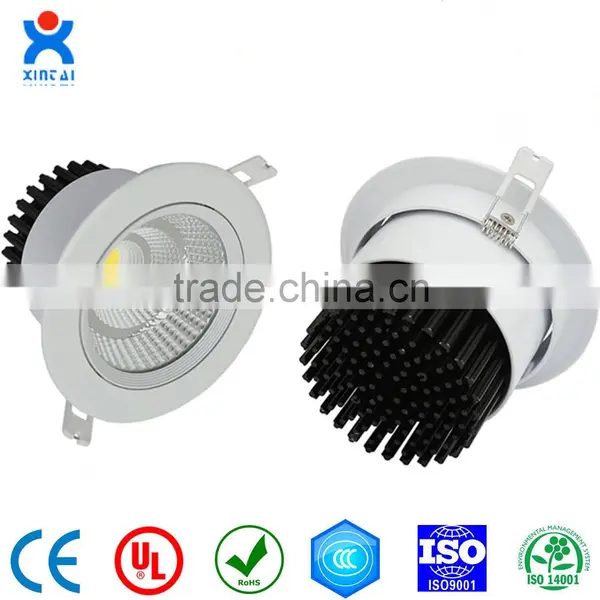

Certification
| 5.Our Services |
|
1). OEM/ODM Service Our strong and professional R&D dept. can develop different products for different target prices and different requirements.
|
|
2). Free sample service Samples can be free. The cost for any samples can be deducted from the amount in quantity order.
|
|
3). Direct factory, Competitive price We are the real manufacturer.Factory price, various products we can make for you.
|
|
4). Quality control We have a strict quality control system, Professional QC team.
|
|
5). Custom packaging service No matter the inner packing or the outer carton. We can design as your request.
|
|
6). Quick response All requests will be reply within 12 hours.
|
|
"Quality, Honesty, Service and Innovation" is our core value
Warmly welcome to visit our factory.
|
