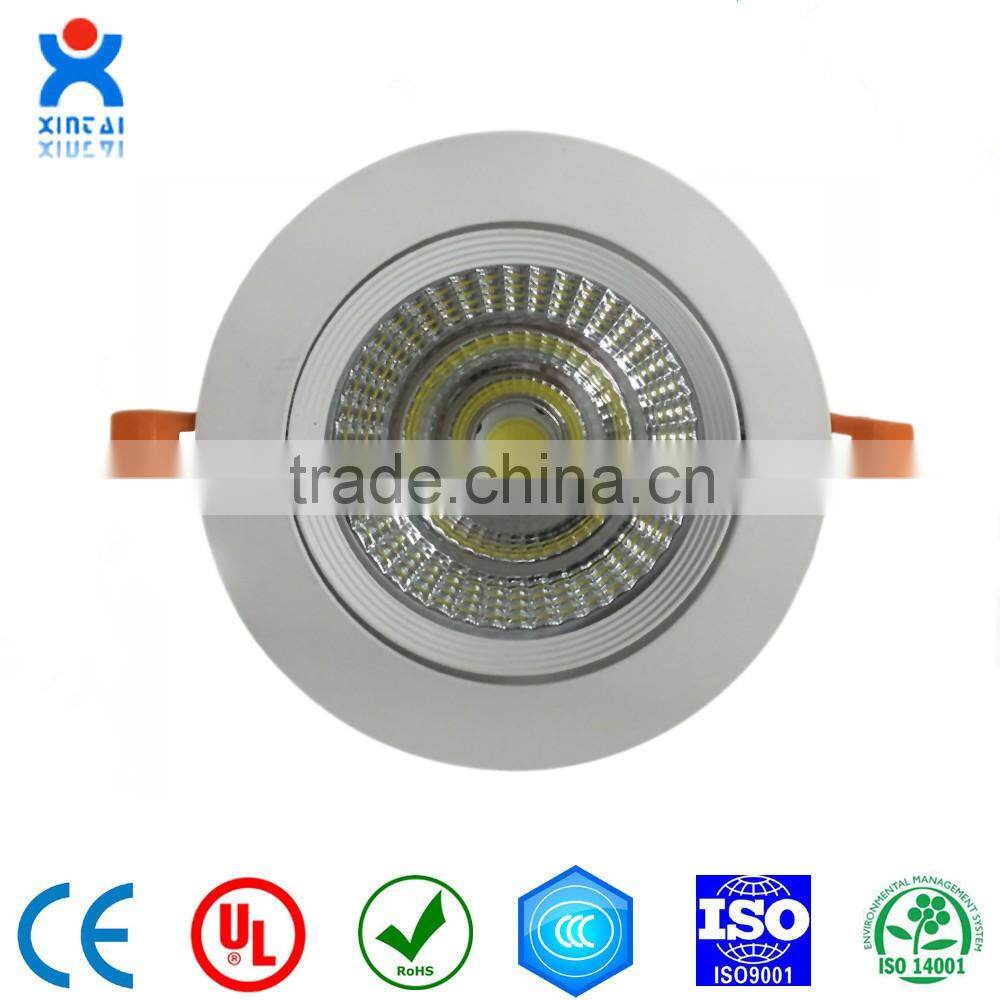

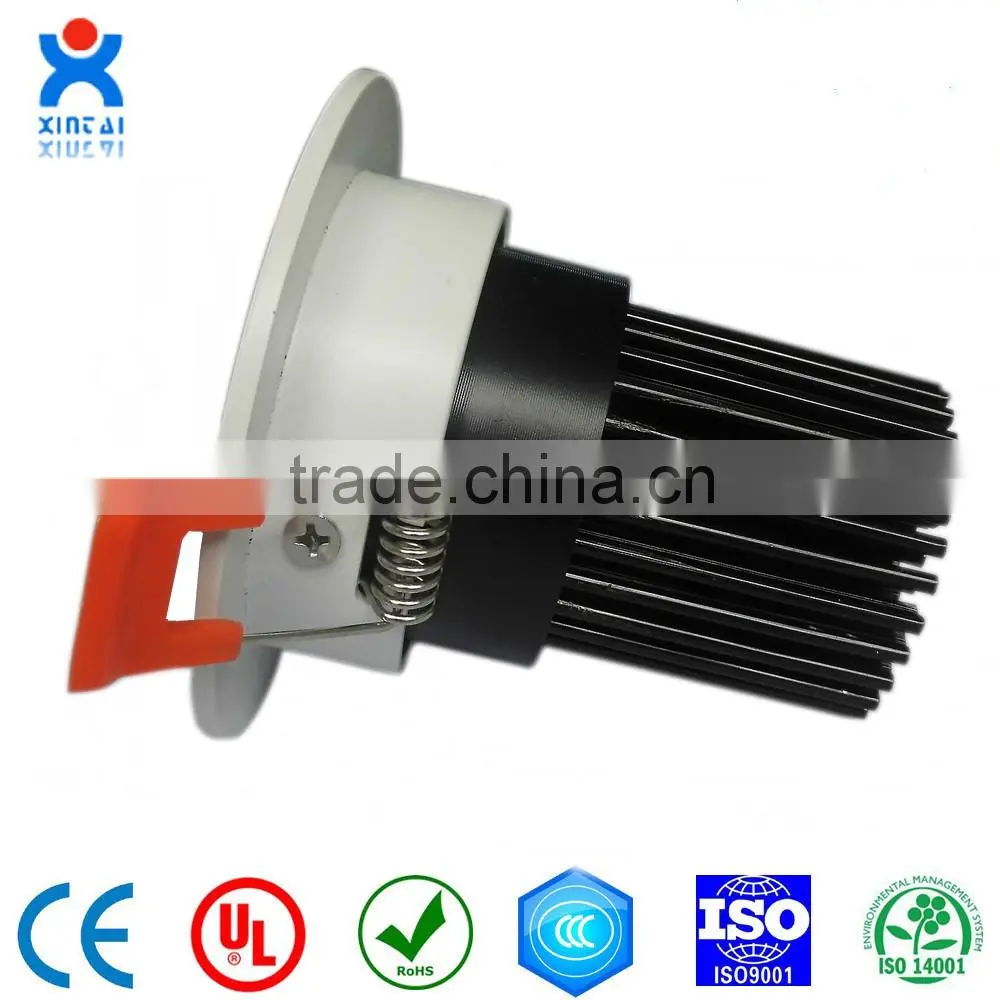

1. High power 3 years warranty surface mounted LED Downlight
Product features:
1. Use die-casting aluminum alloy as the material of main-body.
2. Use high transparent PMMA as lens.
3. Unique and beautiful looking design.
4. Excellent heat dissipation performance.
5. Isolated driver, ensure the long life span.
6.Energy-saving and high efficient LED driver.
Technical Parameters
|
Model No Description |
XT-DB-012 |
XT-DB-015 |
Power(W) |
12W±10% |
20W±10% |
Input voltage(V) |
AC90-260 50/60Hz |
AC90-260 50/60Hz |
Power factor (PFC) |
>0.95 |
>0.95 |
Initial luminous(LM) |
>840 |
>1050 |
Light efficiency(LM/W) |
>7 |
>70 |
Beam angle(Θ) |
15,24,38,60 |
15,24,38,60 |
CCT(K) |
2700-6500K |
2700-6500K |
CRI(Ra) |
>80 |
>80 |
Color of lamp body |
White / White+black |
White / White+black |
Angle adjustable |
12º adjustable |
12º adjustable |
Dimmable |
---- |
---- |
Materials |
Aluminum |
Aluminum |
IP Rate |
IP20 |
IP20 |
Lamp size(mm) |
Φ89*H85 |
Φ138*H125 |
Cut hole(mm) |
Φ54 |
Φ100 |
Working temperature |
-25°~+45° |
-25°~+45° |
Storage temperature |
-30°~+50° |
-30°~+50° |
Warranty |
3 years |
3 years |
Application area
suggested Replacement for conventional bulb, ideal for exhibition, museum, office, shopping mall, hotel and local ligting for household. Meanwhile lighting for jewellery, garments and display case.
3. Package
4.Factory
4.Certification
| 5.Our Services |
|
1). OEM/ODM Service Our strong and professional R&D dept. can develop different products for different target prices and different requirements.
|
|
2). Free sample service Samples can be free. The cost for any samples can be deducted from the amount in quantity order.
|
|
3). Direct factory, Competitive price We are the real manufacturer.Factory price, various products we can make for you.
|
|
4). Quality control We have a strict quality control system, Professional QC team.
|
|
5). Custom packaging service No matter the inner packing or the outer carton. We can design as your request.
|
|
6). Quick response All requests will be reply within 12 hours.
|
|
"Quality, Honesty, Service and Innovation" is our core value
Warmly welcome to visit our factory.
|
