HK215 Hydraulic Crawler Excavator

Name: HK215 Hydraulic Crawler Excavator
Brand: Heking
SKU: 100551195
Availability: InStock

US$ 95,000 - 110,000 MOQ: 1 Piece

Key Specifications

Place of Origin:

Anhui, China

Brand Name:

Heking

Model Number:

HK215

Anhui Hekuang Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shanghai

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Anhui, China

Brand Name Heking

Model Number HK215

Condition New

Moving Type Crawler Excavator

Operating Weight 20900

Bucket capacity 0.95

Maximum Digging Height 9631

Maximum Digging Depth 6643

Machine Weight 20900

Max Digging Radius 9925

Specifications

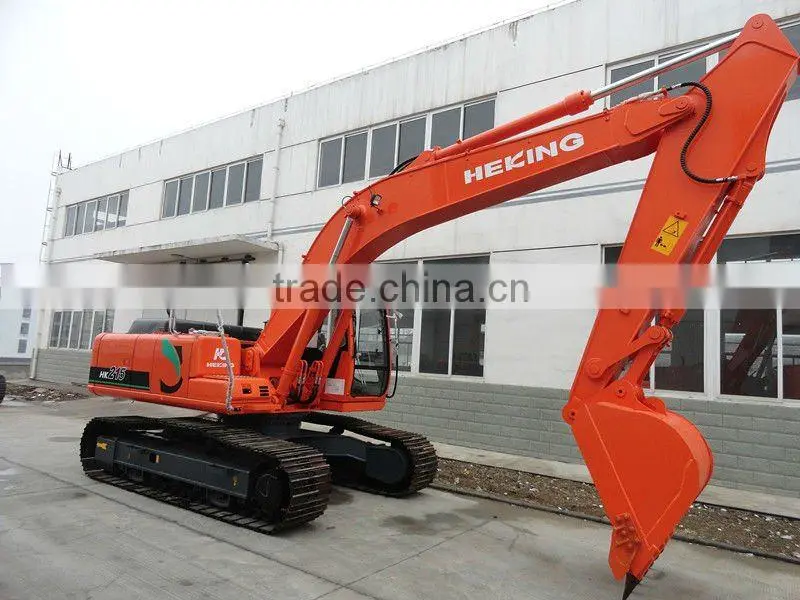

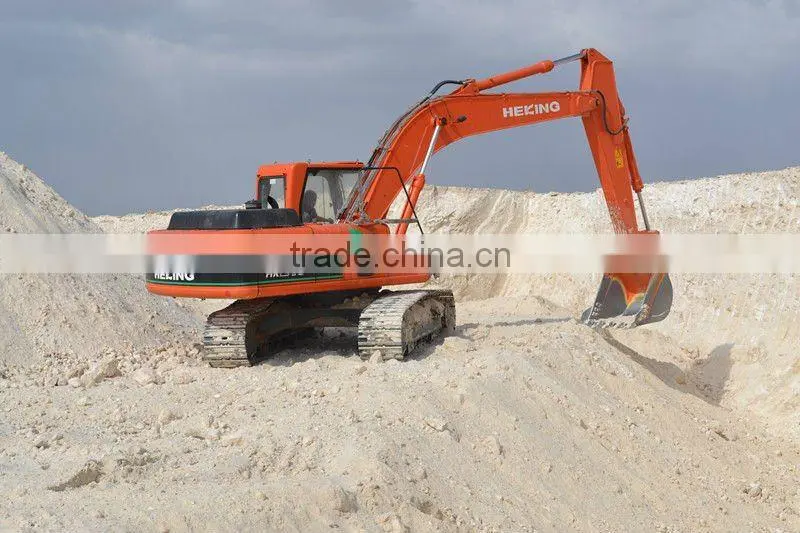

HK215 hydraulic crawler excavator
1. ISUZU engine
2.Japanese hydraulic pump valve and motor
3.variety working devices

Specification
Operating weight	20900kg
Standard bucket capacity	0.95m³
Width of track shoe	600mm
Arm length	2912mm
Engine:
Model	ISUZU 6BG1
Type	inter-cooled turbo
Power	114kW/2100rpm
Max.torque	629N m / 1600rpm
No.of cylindar	6
Displacement	6.494L
Hydraulic system
Main pump
Type	Variable plunger pump
Max.displacement	2X107cm3/r
Working pressure	32Mpa
Hydraulic motor
Slew motor	fixed plunger
Travel motor	variable plunger
Performance
Slew speed	11rpm
Min.slew radius	2828mm
Max.travel speed high/low	4.88/3.42km/h
Gradeability	35°
Tracktive effort	207kN
Max.digging force of bucket	136kN
Max.digging force of arm	100kN
Ground pressure	0.49kg/cm²
Oil tank capacity
Fuel tank capacity	376L
Hydraulic tank capacity	219L

Item	Standard(mm)
Track length	4148
Ground clearance of platform	1053
Overall length	9580
Rear swing radius	2800
Track gauge	2200
Max. width	2800
Min.ground clearance	478
Max.width of upper structure	2622
Track height	920

Item	Standard(mm)
Max.digging reach	9925
Max.digging reach on ground	9762
Max.digging depth	6643
Max.vertical digging depth	6064
Max.digging height	9631
Max.dumping height	6864
Min.front slewing radius	3554
