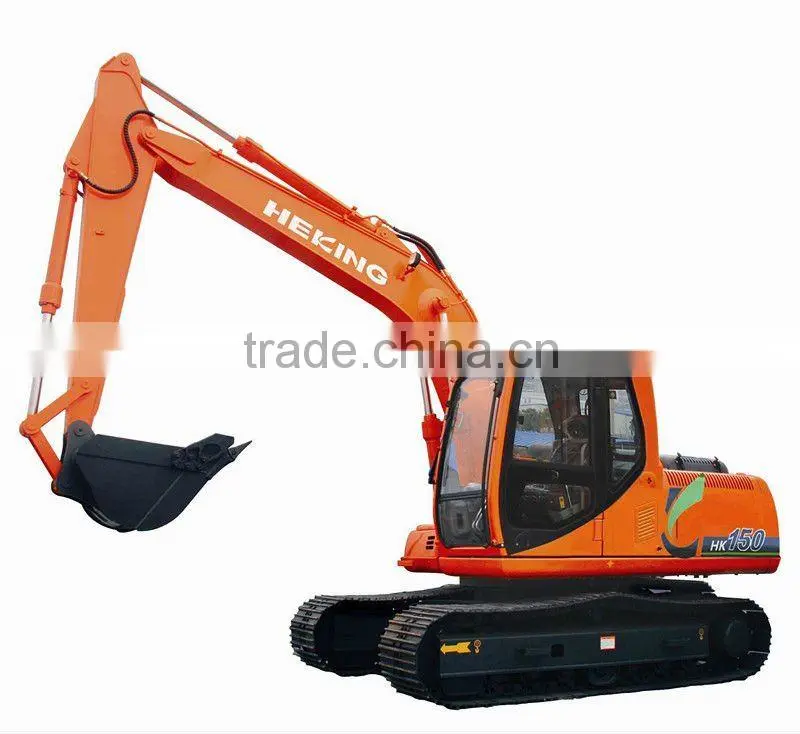

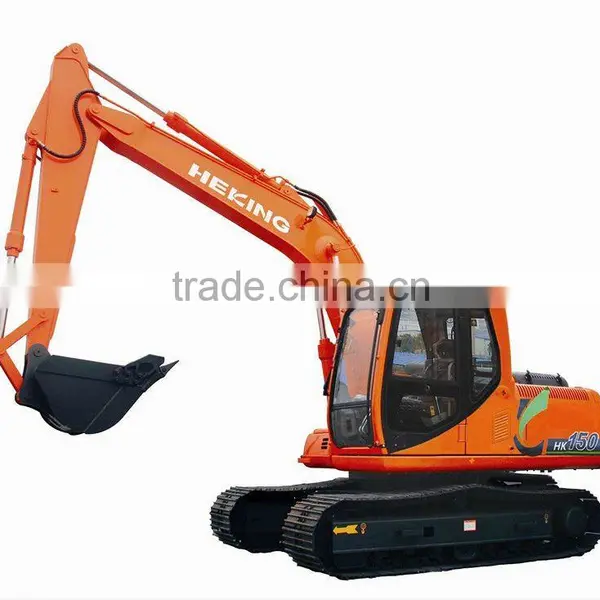

15 Ton Hydraulic Crawler Excavator

Name: 15 Ton Hydraulic Crawler Excavator
Brand: Heking oem
SKU: 100551179
Availability: InStock

US$ 79,000 - 83,000 MOQ: 1 Piece

Key Specifications

Place of Origin:

Anhui, China

Brand Name:

Heking oem

Model Number:

HK150

Anhui Hekuang Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

SHANGHAI

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Anhui, China

Brand Name Heking oem

Model Number HK150

Condition New

Moving Type Crawler Excavator

Operating Weight 13600

Bucket capacity 0.6

Maximum Digging Height 8358

Maximum Digging Depth 5953

Machine Weight 15000

Max Digging Radius 8250

Specifications

1.Isuzu engine.
2.Parker valve(America)
3.Doosan travelling motor
4.High efficiency ,stable performance ,low fuel consumption

	HK150
Specification
Operating weight	13600kg
Standard bucket capacity	0.6m³
Width of track shoe	600mm
Arm length	2500mm
Engine:
Model	ISUZU 4BG1
Type	inter-cooled turbo
Power	89.3kW/2200rpm
Max.torque	449N m / 1800rpm
No.of cylindar	4
Displacement	4.329L
Hydraulic system
Main pump
Type	Variable plunger pump
Max.displacement	2X63cm3/r
Working pressure	30Mpa
Hydraulic motor
Slew motor	fixed plunger
Travel motor	variable plunger
Performance
Slew speed	13.6rpm
Min.slew radius	2468mm
Max.travel speed high/low	5.92/3.63km/h
Gradeability	35°
Tracktive effort	151.26kN
Max.digging force of bucket	85kN
Max.digging force of arm	67kN
Ground pressure	0.412kg/cm²
Oil tank capacity
Fuel tank capacity	217L
Hydraulic tank capacity	217L

Item	Standard(mm)
Track length	3680
Ground clearance of platform	935
Overall length	7997
Rear swing radius	2319
Track gauge	2000
Max. width	2600
Min.ground clearance	481
Max.width of upper structure	2470
Track height	842

Item	Standard(mm)
Max.digging reach	8250
Max.digging reach on ground	8110
Max.digging depth	5953
Max.vertical digging depth	5520
Max.digging height	8358
Max.dumping height	6111
Min.front slewing radius	2475
