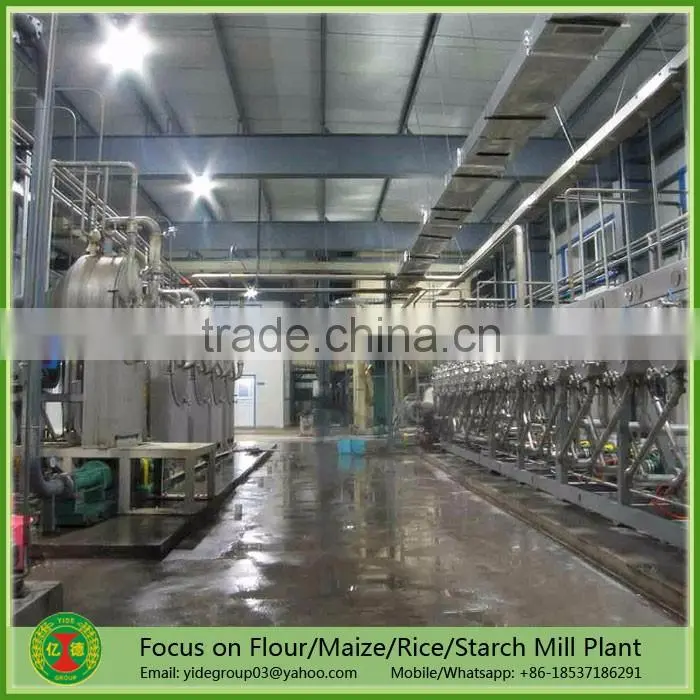

Good price complete cassava starch production line, cassava processing plant

Good price complete cassava processing plant, cassava starch production line

We provide turnkey project for cassava processing plant, cassava starch production line from 10TPD to 200TPD. First, our technicians will make the advanced process flow chart design and civil engineering design according to different throughput capacity and your special requirement, choose the best suitable machinery for your production line. The whole cassava processing plant, cassava starch production line consists of raw grain receiving, water cleaning and stone removing, crushing, centrifugal extracting, desanding, concentration and refining, vacuum dewatering, air-steam drying, packing.

The process line of cassava processing plant, cassava starch production line

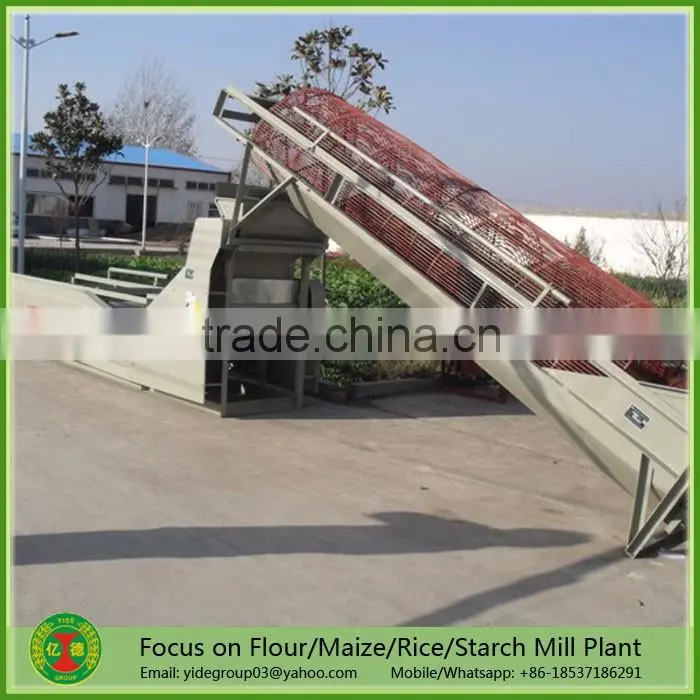

(1) Raw material receiving and screw conveying: The potato is carried and transported on the conveyer.

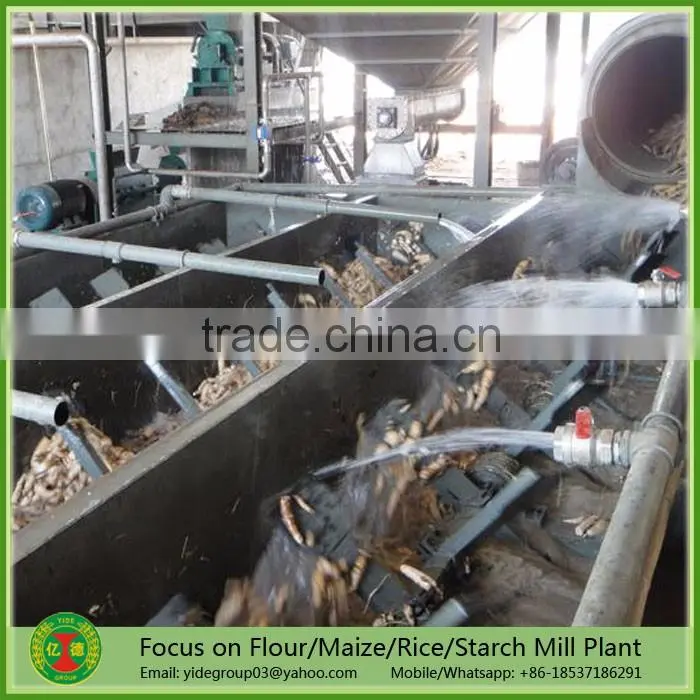

(2) Water cleaning and destoning : The water will wash the potato and destoning during the process of conveying.

(3) Crushing: The crushing unit is the most important step for extracting potato starch. Highly-efficient crushing machine will release the starch in potato at most.

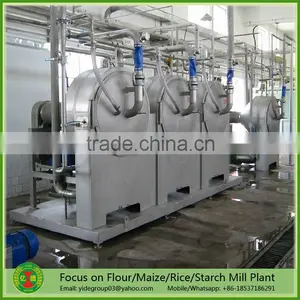

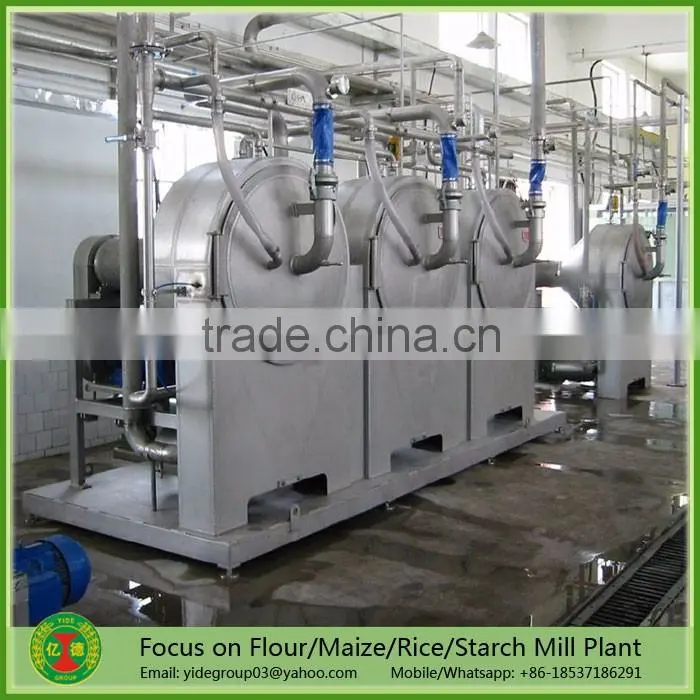

(4) Centrifugal extracting:The starch slurry and residue will be separated from the starch milk.

(5). Desanding: Removing the sand in the starch slurry.

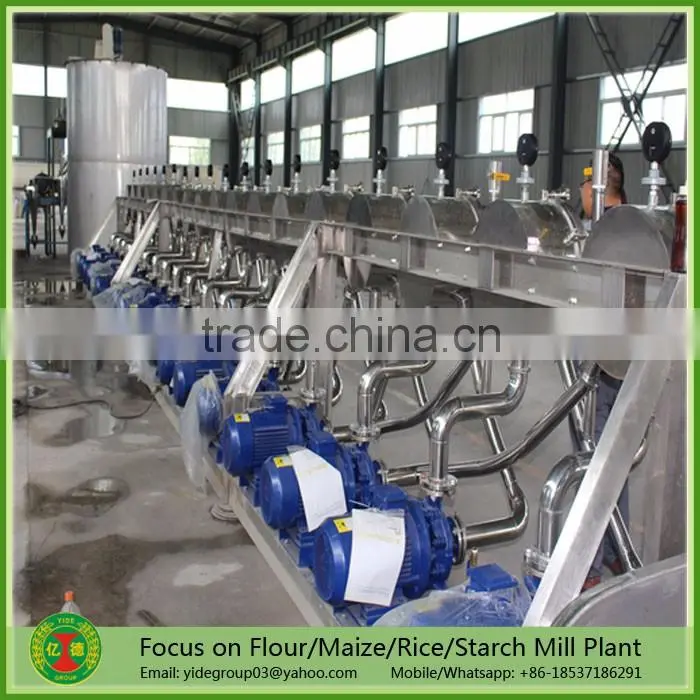

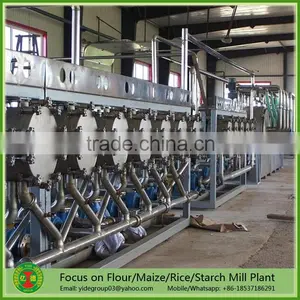

(6) Concentration and refining:Working through the hydroclone, there are 2 steps, including concentration and refining so that we can get purier starch slurry.

(7) Vacuum dewatering: The starch slurry is pumped into inlet tank of vacuum dewatering machine. Then the vacuum rotary drum will adsorb the starch on the drum surface and the filtrate is transferred out of the system by filtrate pump. The filter cake on the drum will be peeled off by peeler and then transferred to the air dryer by screw conveyor.

(8) Air-stream drying: After dewatering process, the air dryer will dry the starch to the required moisture of the commercial starch. Then starch goes into the screw conveyor

(9) Packing: Automatic weighting and packing

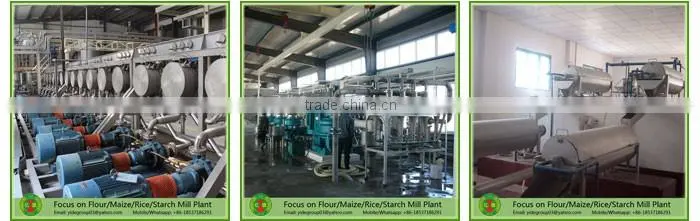

Photos for Reference:

Cassava processing plant, cassava starch production line

Cassava processing plant, cassava starch production line

Cassava processing plant, cassava starch production line

Cassava processing plant, cassava starch production line

Cassava processing plant, cassava starch production line

Cassava processing plant, cassava starch production line

Cassava processing plant, cassava starch production line

 Turnkey Project Services for cassava starch production line, cassava processing plant

           Wheat flour mill plant                                Rice mill plant                             Maize/Corn mill plant

        Wheat starch production line             Corn starch production line               Potato starch production line

About Us

Build in 2002, specilize in grain milling projects, especially in wheat flour mill, maize/corn mill, rice mill and corn starch, potato starch, wheat starch, cassava starch production line and glucose syrup, maltose syrup and fructose syrup production line. We offer superior "Turnkey Project" to all customers, including milling technological designing, civil engineering designing, machinery manufacture, installing, commissioning and after-sales services.
