Home > Packaging & Printing > Printing Machinery > Digital Printing Machine > Large Format Solvent Printer UD3286E With 508GS Printheads

Large Format Solvent Printer UD3286E With 508GS Printheads

Name: Large Format Solvent Printer UD3286E With 508GS Printheads
Brand: Phaeton
SKU: 100538533
Availability: InStock

Large Format Solvent Printer UD3286E With 508GS Printheads thumbnail-1

Large Format Solvent Printer UD3286E With 508GS Printheads photo-1

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Condition:

New, New

Plate Type:

Other, Inkjet printer

Place of Origin:

Shanghai, China

Contact Supplier Request Quote Chat Now

Yite (Guangzhou) Trade Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Guangzhou huangpu

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Plate Type Other, Inkjet printer

Place of Origin Shanghai, China

Brand Name Phaeton

Model Number UD3286E

Usage Other, Banner printer

Automatic Grade Automatic

Voltage AC220V,50Hz/60Hz

Gross Power 220V

Dimensions(L*W*H) L:4980*W1140*H1620mm

Weight 1011KGS

Certification CE

After-sales Service Provided Overseas service center available

Large format solvent printer UD3286E With 508GS Printheads

Detail information:

1.The printer with 6 spt 508gs printheads

2.The printing speed is very fast

3.This is new model

4.Suitable for vinyl/banner/polyester etc materials.

Specification:

Model	UD-3286E
Printhead SII Printek Inc.	SPT-508GS
Number of printhead	4/6 Heads
Output Quantity (m²/h)	Print Mode	Outputs(m²/h)
	Draft 2Pass	91
	Standard 3Pass	61
	Quality 4Pass	46
	High Quality 6Pass	31
	Back-lit 8Pass	23
Number of Print Head	3300mm
Maximum print width	3200mm
Printing Speed (m2/hr)	Type	Solvent or Eco-solvent
Ink	Color	(C,M,Y,K) or (C,M,Y,K,Lc,Lm)
	Volume	2 liters main tank
	Ink supply system	Ink level sensor. Auto-pumping
Media	Width	3300mm
	Type	Banner, vinyl, polyester, etc
Feeding System	Single or double feeding bar. (Max weight 80kg)

Ph. Cleaning System	Individual color purging
Heating System	Back, middle, front, and extra heater.

Clamp	Equipped
Printhead Height	Adjustable distance from 2mm~6mm.
Input Voltage	AC220V,50Hz/60Hz
Printer Dimension/Weight	L4766xW1160xH1350mm /724Kg
Package Dimension/Weight	L4980xW1140xH1620mm / 1011Kg
Requirement	Temperature:20°C-28°C Humidity:40%-60%

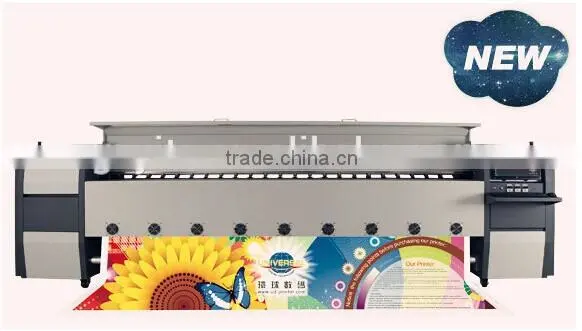

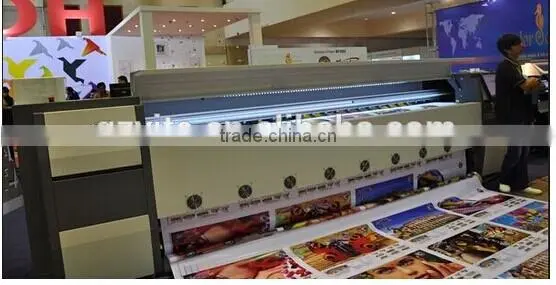

Picture show as following:

Package picture show:

Suitable solvent ink original sk1 ink:

1.Prnter warranty: 1 year.

2.Shipping information:

We will send the printer by sea.

1)All the printer delivery by sea from Guangzhou Huangpu port.And we will declare the low value on the shipping invoice to reduce your customs tax.

2)There are no shipments on weekend and public holidays.

3.Payment terms:

We usually accept T/T, Western Union, Money Gram, L/C, 30% deposit at first, then finish the balance beofre delivery.

4.Packing Terms:

All printer are new, pack by wooden case.

We will use appropriate materials for a reasonable, secure packing of your goods. If goods are damaged during the transport, please inform our service department within 3 days after goods are received.

5.Why Purchase From Us:

1)W e can delivery goods by several kinds of shipping.

2)We have many customers are from different country.

3)We offer best service to every customers.

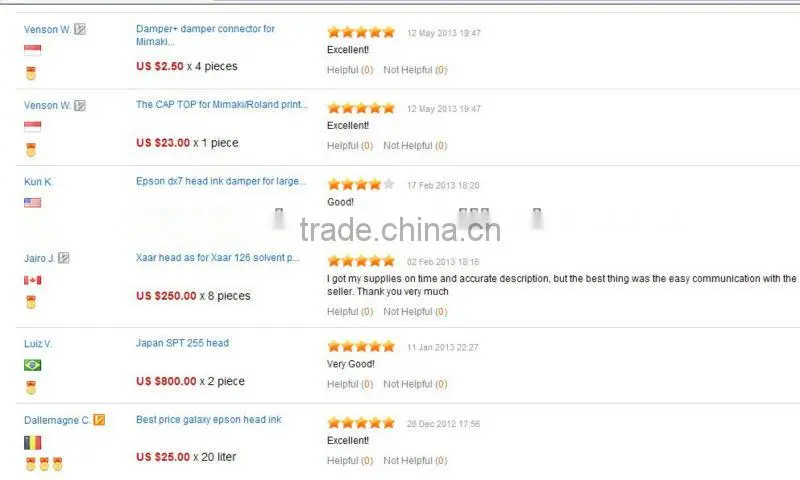

4)We have very good feedback from customers at Aliexpress:

All of our product is direct from original manufacturer, who also supplies the brand name to domestic market but with much higher price. We offer this special purchase and pass this saving direct to our customer.

We understand what you need in your business.

We can give you professional advices, suggestions and ways to further reduce your production cost in the long run.

Please feel free to contact us if you need more information.

YiTe (Guangzhou) Trade Co., Ltd use advanced ink manufacture and formulation technologies imported from the USA. Our customers are from India, Malaysia, the Philippines, Indonesia, South Korean, the UK, Brazil, and other countries and regions.

Thank you for your reading! Your satisfation is our forever pursuing!
