Galaxy Printer with DX5 Head, Phaeton UD-181LC 1.8/2.1/2.5 M
Product advantages
Equipped with DX5 print head;
1.Full aluminum platform;
2.X,Y axis AC servo motors;
3.Bearing rail is stable and long durability;
4.USB2.0 high speed data port ensure high speed and quality and long scale output printing.
Full aluminum platform / X, Y axis AC servo motors
Bearing rail, stable and long durability
1--Product advantages
Model |
UD-181LC |
UD1812LC |
UD-211LC |
UD-2112LC |
|||
Printhead |
dx5 head |
||||||
Number of print head |
1head |
2heads |
1head |
2heads |
|||
Maximum print width |
1800mm |
3200mm |
|||||
Print speed |
D 4pass |
16 |
31 |
17 |
34 |
||
S 6pass |
11 |
21 |
12 |
22 |
|||
Q 8pass |
9 |
13 |
10 |
17 |
|||
HQ 8pass |
9 |
13 |
10 |
17 |
|||
BL 12pass |
5 |
8 |
6 |
10 |
|||
ink |
Type |
Water based/ECO Solvent ink |
|||||
Color |
4 color:CMYK |
||||||
Capacity |
1L per main tank of each color |
||||||
Ink supply system |
Auto supply system |
||||||
Midia width |
Maximum 1880mm |
Maximum 2.180 |
|||||
Media type |
Vinyl,polyester,flex,back-lit film,PS board,KT board,PVC foam board,etc |
||||||
Auto media feeding system |
Equipped(Max.Media Weight 25kg |
||||||
Auto Cleaning System |
Anti-clogged Flash Function & Capping System |
||||||
Pre-heating & Drying System |
Equipped |
||||||
clamp |
Equipped |
||||||
Print interface |
USB2.0 |
||||||
Printhead Height |
2 to 10mm from media |
||||||
RIP software |
Ultraprint,maintop,Photoprint,Wasatch |
||||||
Input power |
AC220V,50Hz/60Hz |
||||||
Machine Dimension |
L3080*W990*H1,2660mm/204KG |
L3380*W990*H1,260mm/225KG |
|||||
Package Dimension |
L3190*W1100*H845mm/390KG |
L3490*W1100*H845mm/422KG |
|||||
Advantage of eco solvent printer
1. Adopt variable do printing technology. There are 8 columns of nozzles in the print head, every column contains 180nozzles, and therefore, there are a total of 1440 nozzles.
2. Self-developed automatic cleaning and capping system which makes the operation and maintenance convenient
3. AC servo motor for both X and Y direction which are stable and durable.

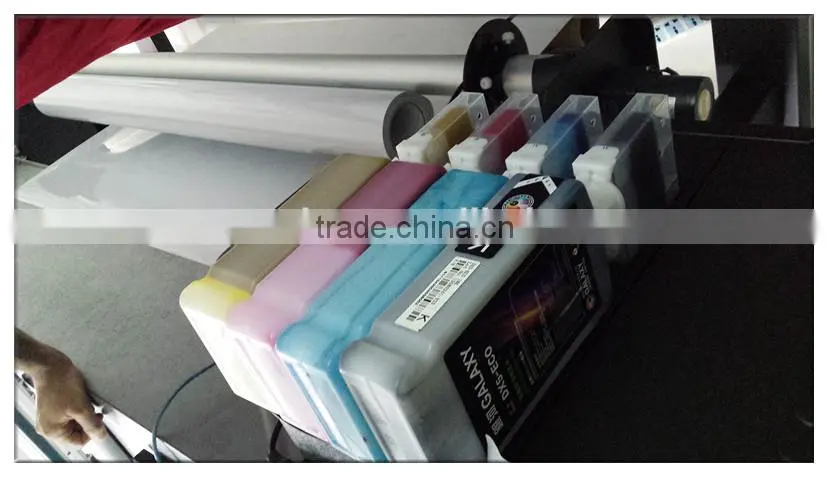

4. New designed constant pressure ink supply system with inserted ink bottle which is clean, reliable, at the same, the ink flow is more fluent.
5. Carriage height adjustable system (Max. printing height 10mm). Print directly on PS and KT board.
6. Rear, platen, and front individual heating system improve the printing quality.
7. No space between bearings and rails for the carriage movement with low noise, low resistance, and no vibration. Market approved that it is durable.
8. Fixed feeding structure which is compatible with 2 and 3 inch paper core. Equipped with take-up balancing bar which is flexible and easy to use.
1.Prnter warranty: 1 year.
2.Shipping information:
We will send the printer by sea.
1)All the printer delivery by sea from Guangzhou Huangpu port.And we will declare the low value on the shipping invoice to reduce your customs tax.
2)There are no shipments on weekend and public holidays.
3.Payment terms:
We usually accept T/T, Western Union, Money Gram, L/C, 30% deposit at first, then finish the balance beofre delivery.
4.Packing Terms:

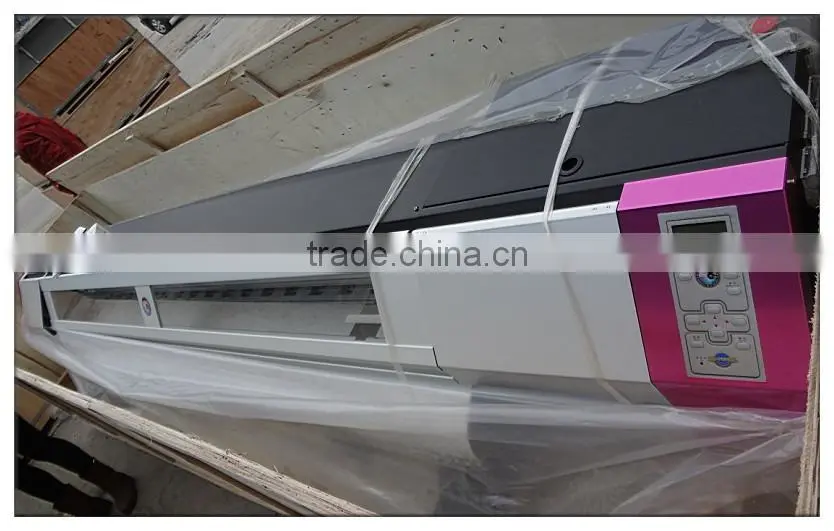

All printer are new, pack by wooden case.
We will use appropriate materials for a reasonable, secure packing of your goods. If goods are damaged during the transport, please inform our service department within 3 days after goods are received.
5.Why Purchase From Us:
1)W e can delivery goods by several kinds of shipping.
2)We have many customers are from different country.
3)We offer best service to every customers.
4)We have very good feedback from customers at Aliexpress:
-
All of our product is direct from original manufacturer, who also supplies the brand name to domestic market but with much higher price. We offer this special purchase and pass this saving direct to our customer.
We understand what you need in your business.
We can give you professional advices, suggestions and ways to further reduce your production cost in the long run.
Please feel free to contact us if you need more information.

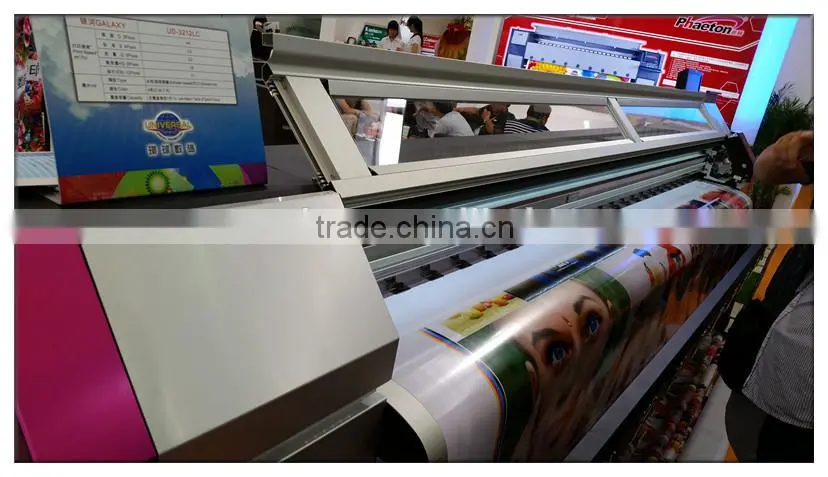

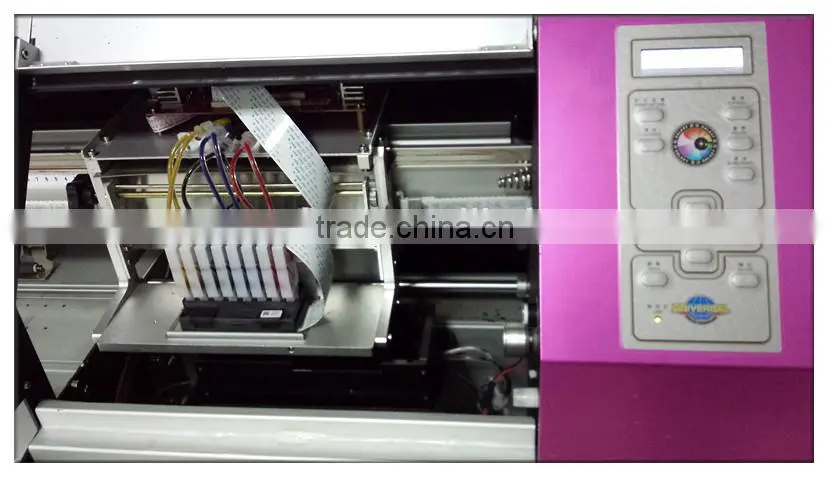

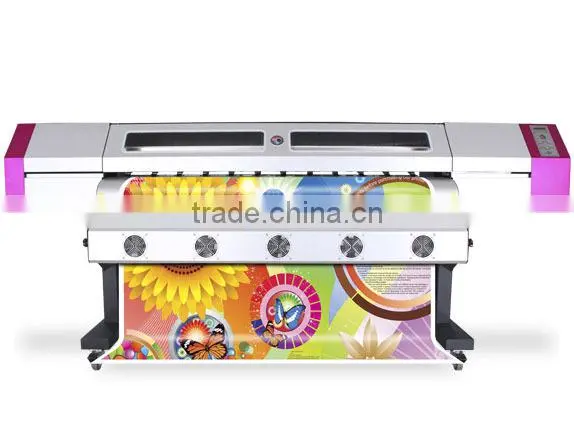

7.UD181LA ECO solvent printer pictures as followings:
YiTe (Guangzhou) Trade Co., Ltd use advanced ink manufacture and formulation technologies imported from the USA. Our customers are from India, Malaysia, the Philippines, Indonesia, South Korean, the UK, Brazil, and other countries and regions.
Trust us, we will supply the high quality product and the best sale service to you.
Thank you for your reading! Your satisfation is our forever pursuing!
