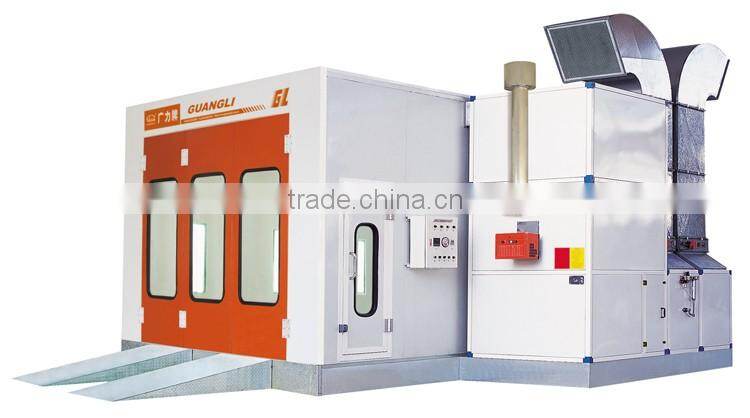

GL7 Powder Coating Booth/CE UL Approved Spray Booth Car
GuangLi Spray booth Feature
--Wall panel: Sandwich style, δ=50mm
--Basement: steel structure,full grids.
--Door: 3 pcs of front door, 1pcs of emergency door with pressure lock.
--Fuel heating.
--Spraying/baking transition damper, automatically air controlled.
-- Intake fan and Exhaust fan.
--Water soluble paint with hot-air acceleration system
--Air flow:30000m3/h.
--Full downdraft and top filtration.
--With exhaust ducts and chimney duct
--Ramp: 2 pcs of grids.

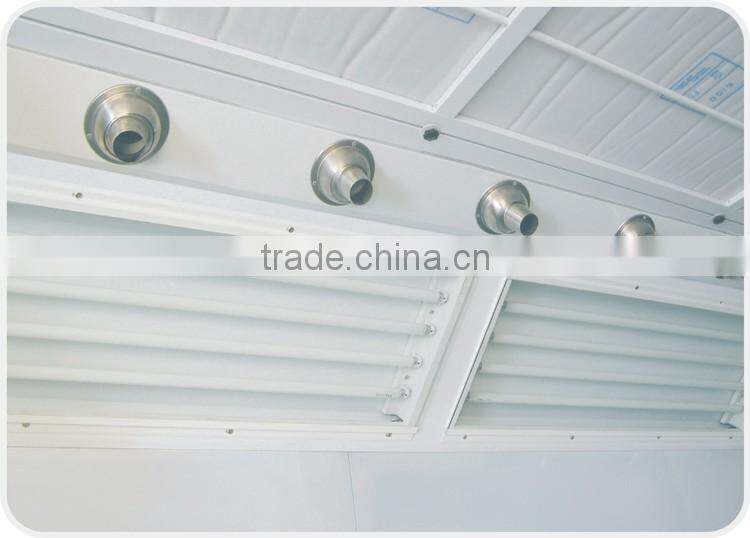

--Lighting: Upper light & Side light
--Control box: full-automatic control box,phase-lacking protection, straight driven motor. Automatically stop when preset time is up, constant temperature spraying.
| Technical Specifications | GL7-CE |
| External size(m) | 7.0×5.6×4.0 |
| Internal size(m) | 6.9×3.9×2.7 |
| Door width(m) | 3.0 |
| Door height(m) | 2.66 |
| Air flow (m3/h) | 30000 |
| Inside on-load air speed(m/s) | 0.3-0.5 |
| Power (kw) | 26 |
| Vehical suited | Saloon car |

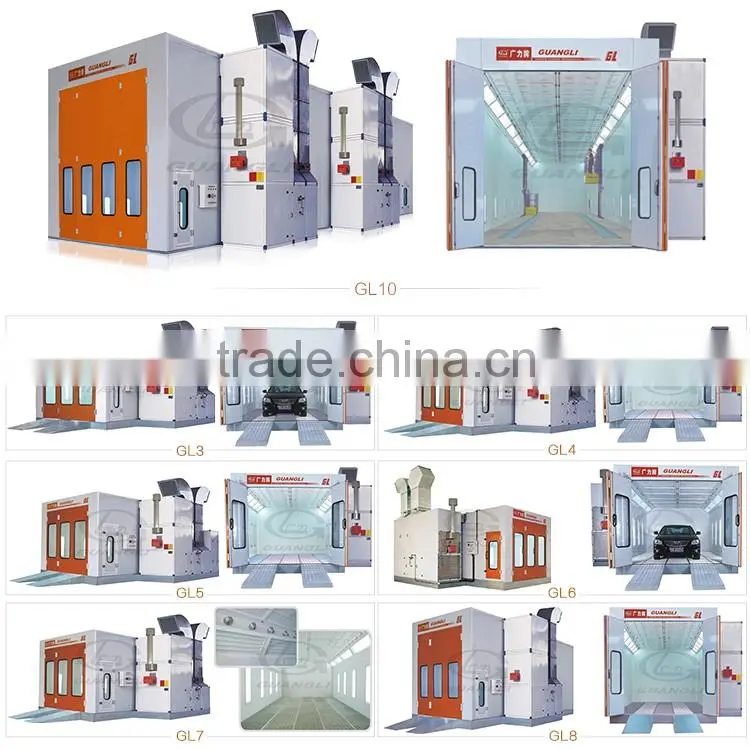

GuangLi Spray booth Show
GZ GUANGLI EFE CO.,LTD is professional prep station spray booth and car lift manufacturer in China for more than 20 years technical and production experience.
Founded in 1994, Guangli started to build our own enterprise headquarters and new factory in 2005, which covers 58000M³of grounding area and 36000M³of building area.
GZ GUANGLI EFE CO.,LTD is the first and the largest auto prep station spray booth manufacturer in China, having a good reputation among Chinese auto-maintenance enterprise. The sales volume of prep station spray booth ranks top in this field over years.
Our products prep station spray booth and car lifts have got CE certificate and our company has passed ISO9001:
We have imported a Full-auto production line and many facilities from Europe, owning the most advanced production equipment in China.
