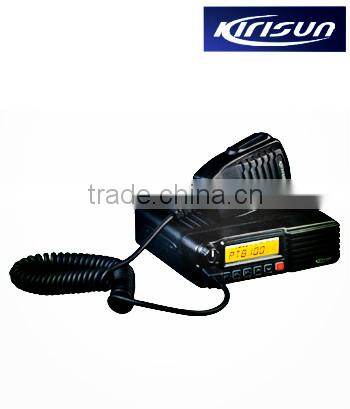

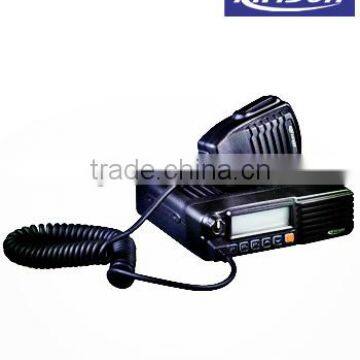

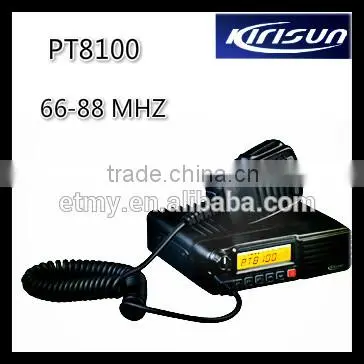

Kirisun PT8100 dmr radio Professional vhf 66-88 MHZ Mobile Radio
PT8100 with compact size is flexible to install in the vehicle when space is limited.
Enhanced Call Function
Build in 2Tone/5Tond/DTMF encode and decode to enable multiple call function for use including group call, private call, kill/active, stun/revive, silent interrogate and so on.
Wide Frequency Coverage
With wide band frequency coverage including 136-174M, 66-88M, 438-490M, 400-450M, 470-512M, it is flexible for different market use.
Easy to Use
With its 8-character alphanumeric display, 5 programmable buttons and 256 channels, this radio supports access to an expanded feature set for a large workforce.
Multiple Emergency Call
For enhanced user safety, lone work, security check is designed on this radio. It requires the user to reset at a predetermined interval, if not, the radio will automatically enter into emergency mode to ask help. During emergency, ENI & background and emergency alarm could be sent to dispatch center and partners.
Manual Dialing
With DTMF Microphone, it allows users to dial DTMF number by DTMF Microphone. It is flexible for user to dial a call.
OST Function
With OST function allow use to set CTC/DCS by programming key in each channel.
Home Channel
Home channel function enable switch to preset channel by programming key quickly. It is flexible to return channel in regular use.
Public Address
The public address feature feeds microphone audio through a powerful PA amplifier to the external speaker, offering robust, out of vehicle, audio clarity
General | |
Frequency Range |
66~88MHz,136~174MHz 400~450MHz, 438~490MHz |
Channel Capacity |
256 |
Channel Spacing |
12.5KHz/25KHz |
Operating Temperature |
-30℃~ +60℃ |
Operating Voltage |
13.6V DC ±20% |
Frequency Stability |
±2.5 ppm |
Dimension(with battery and antenna) |
150mm×131mm×43mm |
Weight(with battery and antenna) |
1310g |
Transmitter | |
RF Power Output |
25W/10W/5W(UHF) 25W/10W/5W(VHF) |
Frequency modulation |
16K φ F3E / 11K φ F3E |
Antenna Impedance |
50Ω |
Modulation Limiting |
±2.5KHz 12.5KHz, ±5KHz 25KHz |
Radiated Spurious Emission |
-36dBm < 1GHz |
FM Noise |
45dB 25KHz |
Modulation Distortion |
< 3% |
Receiver | |
Reference Sensitivity |
0.28μV 12.5KHz |
Adjacent channel Selectivity |
60dB 12.5KHz |
Intermodulation Rejection TIA |
70 dB |
Spurious Response Rejection |
70 dB |
Rated Audio Output |
4W |
S/N |
45/40 |
Rated Audio Distortion |
≤3% |
MOQ |
2-500PCS |
OEM/ODM |
ACCEPTED |
DELIEVERY TIME |
5-7 DYAS (SAMPLE); 20-25 DAYS (MASS) |
CERTIFICATE |
CE/FCC/ROHS |
SAMPLE SUPPORT |
SAMPLE IS AVAILABLE, CHARGING COST WILL BE SPECIAL |
- Accessories
Why choose us?
Shipping terms
1-5 business days for sample order
5-10 business days for medium order
10-15 business days for OEM order
service
1. OEM & ODM serivice offered
2. Sample's fee can be refund after order reached 1000 sets.
3.Delivery can be Express:DHL,UPS, FedEx, EMS, TNT; shipping logistic etc & post office for samples
Warranty:
* Before delivery , we will check the items' quality strictly one by one .
* 12 months for radio body & 6month for accessories warranty, please contact us immediately when you get defective,thanks.
payment terms
Payment(shown on home page to customer anti cheater ): T/T, Western Union, escrow
(please do NOT believe anybody by Email say Our bank changed, thank you)
How to contact us?
Email: kelly at
Skype: ecome.gz
Trade Maneger: cn1510909062
Company information
Guangzhou Etmy Co., Ltd., founded in 2008, is a manufacturer specialized in the research, development and production of walkie-talkies. We are located in Guangzhou, with convenient transportation access. All of our products comply with international quality standards and are greatly appreciated in a variety of different markets throughout the world.
About Us
Address:No.B270 HaiSun Electrical Appliance Market No.13 simalu Dashatou GuangZhou City of China
Telphone: 86-20-83794907 Fax: 86-20-83792915
