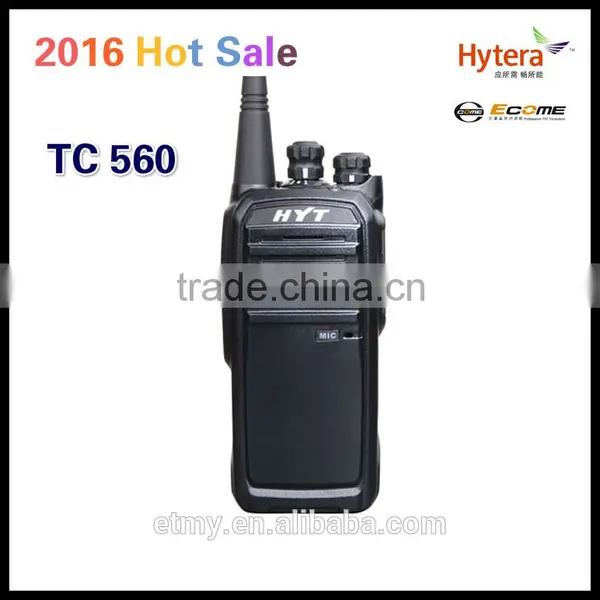

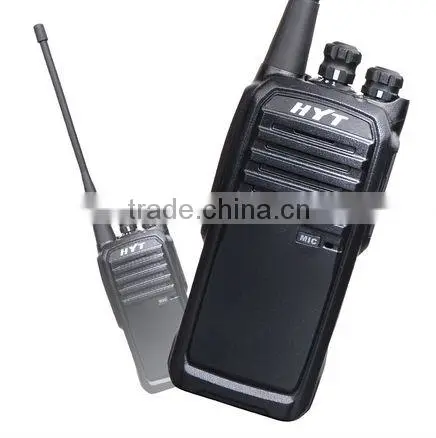

Hytera TC-560 16CH Uhf Hand Walkie Talkie

Hytera TC-560 16CH Uhf Hand Walkie Talkie thumbnail-1
Hytera TC-560 16CH Uhf Hand Walkie Talkie photo-1
US$ 200 - 300 MOQ: 2 Pieces
Key Specifications
Get Latest Price
Place of Origin:
China
Brand Name:
HYT
Model Number:
TC-560
Contact Supplier Request Quote Chat Now
Guangzhou Etmy Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
GUANGZHOU
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin China
Brand Name HYT
Model Number TC-560
Type Handheld
Dimensions 120mm*54mm*33mm
Frequency Range UHF :400-470MHz
Storage Channel 16
Talk Range 3-7km
Product Description

Hytera TC-560 16CH uhf hand walkie talkie



Specifications

strong penetrability , long distance call , wearproof material , Ultra-long Standby Time and clear timbre.

General

Frequency Range

400-470MHz

Channel Capacity

16

Channel Spacing

25 /12.5KHz

Operating Voltage

7.4V DC

Battery

1300mAh/1650mAh (Li-ion)

Battery Life(5-5-90 Duty Cycle)

More than 10/13 hrs

Frequency Stability

±2.5ppm

Operating Temperature

-20°C-+65°C

Antenna Impedance

50Ω

Dimensions (H×W×D)

(with battery, without antenna)

120mm×54mm×33mm

Weight (with antenna & battery)

282g

Transmitter

RF Power Output

4W/1W

Modulation

16KΦF3E/11KΦF3E

Spurious and Harmonics

-36dBm<1GHz

-30dBm> 1GHz

FM Noise

≥40dB/35dB

Audio Distortion

≤5 %

Receiver

Sensitivity

≤0.25/0.28 μV

Selectivity

70/50dB

Intermodulation

60dB

S/N

43dB/38dB

Rated Audio Power Output

0.8W

Rated Audio Distortion

≤5%



key feature



Long Battery Life
The 1300mAh high capacity Li-ion battery can secure a battery life up to 10 hours.



High/Low Power Switchable
For each channel, the power can be adjusted through the key pre-set as High/Low power switch. When the communication range is small, low power is of priority for battery saving.



Programmable 25 KHz /12.5 KHz Channel Spacing
For future adaptability, users can program the TC-320 channel spacing as 25KHz or 12.5KHz through programming software, no need to buy a new radio.



Monitor
This function is especially useful when receiving weak signal. Hold down MONI key, the activity in current channel can be monitored.



CTCSS/CDCSS and Squelch Tail Elimination
38 groups standard CTCSS and 83 groups standard CDCSS available. If your radio is set with CTCSS or CDCSS, both the interference from the same frequency and the squelch tail from communication termination or carrier disappearance can be eliminated.

Channel Scan
When scan is enabled, press the side key to start quick scan for all the channels in the scan list. The scan will stop or pause at the channel where a signal is detected.

Auto Battery Save
Radio enters “Battery Save” mode when no signal is received or there is no operation on the radio. This can prolong the battery life through lowering the battery consumption.

Low Battery Alert
Radio will alert users to charge the battery when it runs low.

Busy Channel Lockout(BCL)
BCL can prevent radio from receiving any unconfirmed signal and transmitting signal to any busy channel, keeping the channel clean and free of interference.

Time-out-timer (TOT)
This function is used to avoid time-out occupation of a channel. TOT restricts the maximum duration of each transmission, which not only can realize battery save and reduce the channel block time, but also can avoid the probability of channel occupation because of improper operations.



Advantages

Why choose us?

1. Alibaba assessed 7 years gold supplier.

2. We are professional supplier of walkie-talkie, and we are Motorola's authorized dealers, the Hytera six-star Wholesalers, Baofeng, KIRISUN, Icom,Ecome and other suppliers.

3. Well trained experienced staff reply all your questions.

4. Customized design is available, OEM are welcomed.

5. Fast delivery to customers all over the world after deposit.

6. 100% QC inspection before shipment.

7. One year warranty for radios, six month for accessories.

8. Excellent after-sales service.



Company Information

Guangzhou Etmy Co., Ltd., founded in 2008, is a manufacturer specialized in the research, development and production of walkie-talkies. We are located in Guangzhou, with convenient transportation access. All of our products comply with international quality standards and are greatly appreciated in a variety of different markets throughout the world.

Hytera TC-560 16CH uhf hand walkie talkieHytera TC-560 16CH uhf hand walkie talkie
