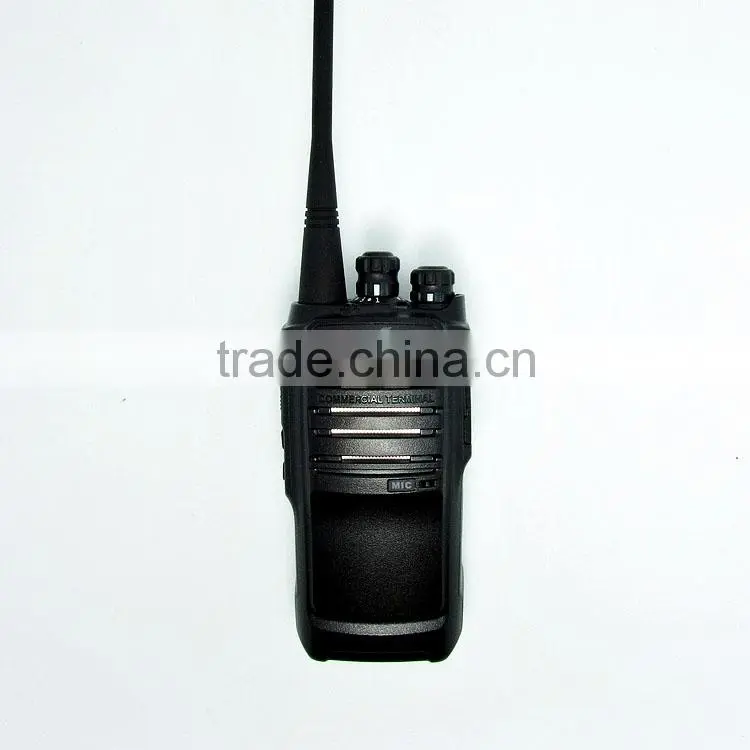

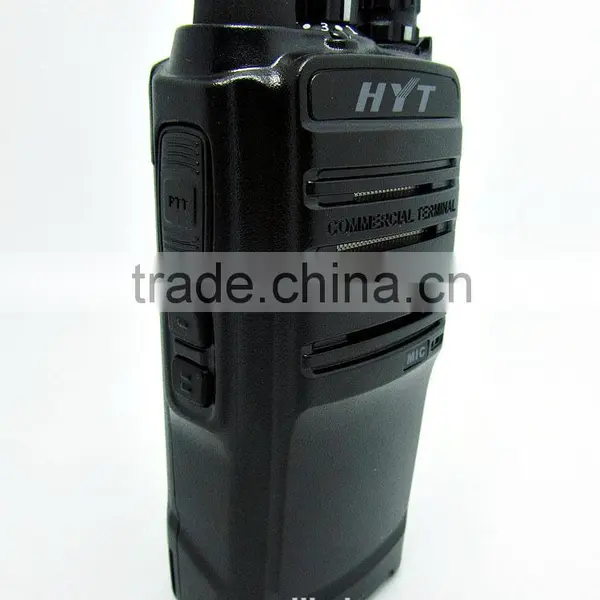

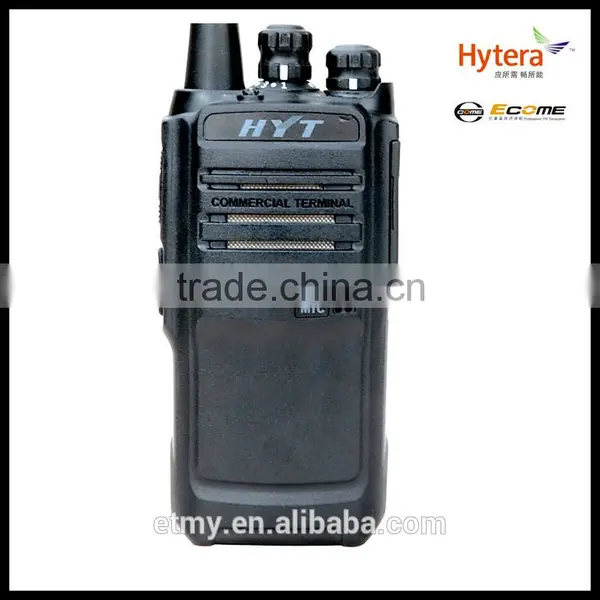

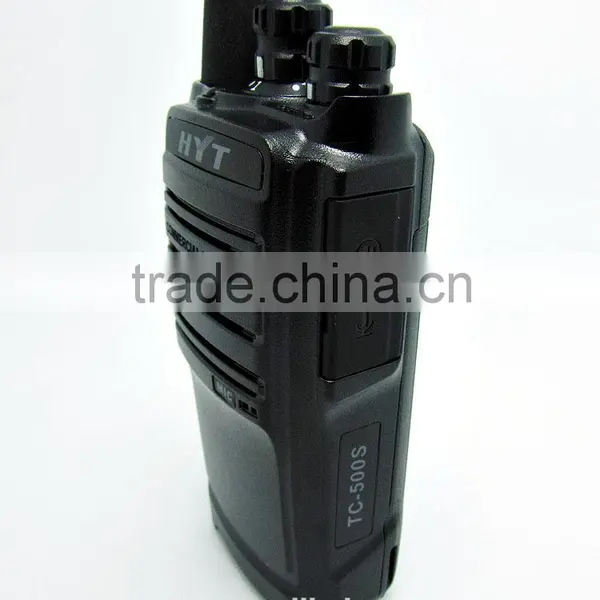

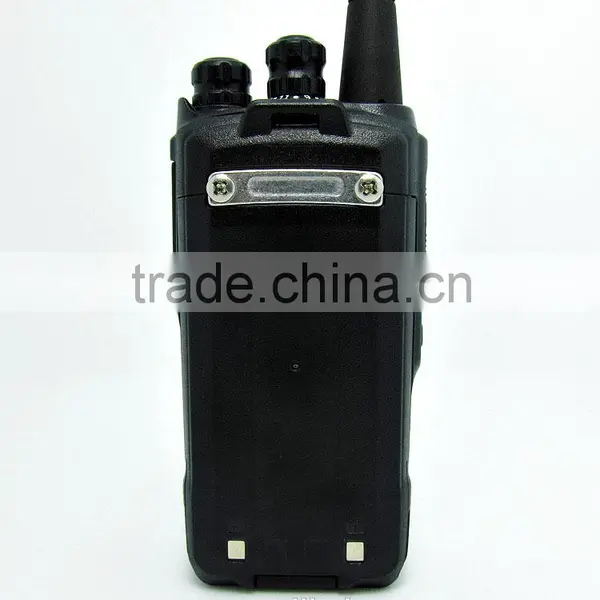

Hytera ham radio walkie talkie whisper function two way radio HYT TC500S
Features:
Tough & Light-weight
TC-508 has a light-weight but exceptionally strong body, allowing it to be carried about easily and to survive harsh conditions.
·Robust & Reliable
TC-508 is built to survive the hard knocks, drops and some tough environments of its users. It meets or exceeds the HYT 5-year ALT test.
·Longer Battery Life
TC-508 is equipped with a 1650mAh battery that enables you to transmit and receive, on a 5-5-90 basis, for up to 14 hours.
·Enhanced Voice Quality
TC-508 employs advanced voice technologies to better the sound quality during your communication.
Main Functions
·High/Low Power Switch
·Wide/Narrow Band Switch
·Monitor
·CTCSS/CDCSS and Squelch Tail
·Elimination
·Channel Scan
·Battery Save
·Low Battery Alert
·Busy Channel Lockout
·Time-out Timer (TOT)
·PC Programmable
·Wired Clone
·Squelch Levels Selectable
Applications
·Hospitality
·Manufacturing
·Retail
·Education
·Construction
·Security
Specifications:
General | |
Frequency Range |
UHF: 400-470/400-420/450-470MHz; VHF: 136-174MHz |
Channel Capacity |
16 |
Channel Spacing |
25/12.5KHz |
Operating Voltage |
7.4V |
Standard Battery |
1650mAh (Li-Ion) |
Battery Life |
14 hours |
Frequency Stability |
±2.5 ppm |
Operating Temperature |
-20℃ ~ +65℃ |
Antenna Impedance |
50Ω |
Dimensions (H×W×D) (with standard battery, without antenna) |
113x54x35mm |
Weight (with antenna & standard battery) |
280g |
Transmitter | |
RF Output Power |
5W/2W(VHF) 4W/2W(UHF) |
Modulation |
16K0F3E/11K0F3E |
Spurious and Harmonics |
≤-26dBm (<1G) |
FM Noise |
40/35dB |
Audio Distortion |
≤ 5% |
| Modulation Limiting | ≤5KHz (25KHz); ≤2.5KHz (12.5KHz) |
Receiver | |
Sensitivity |
≤0.251uV/0.282uV |
Adjacent Channel Selectivity |
70dB/60dB |
| Intermodulation | 65dB |
Spurious Response Rejection |
70dB |
S/N |
45dB/40dB |
Rated Audio Power Output |
0.5W(Speaker impedance: 16 Ohm) |
Rated Audio Distortion |
≤5% (0.5W) |
| Conducted Spurious Emission | -57dBm < 1GHz -47dBm > 1GHz |

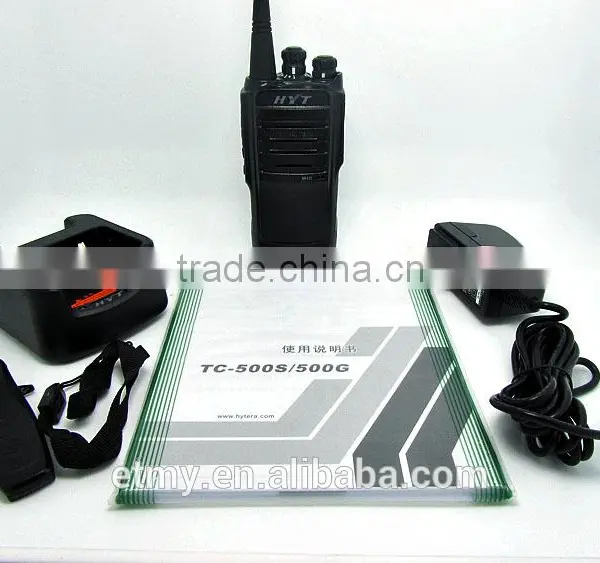

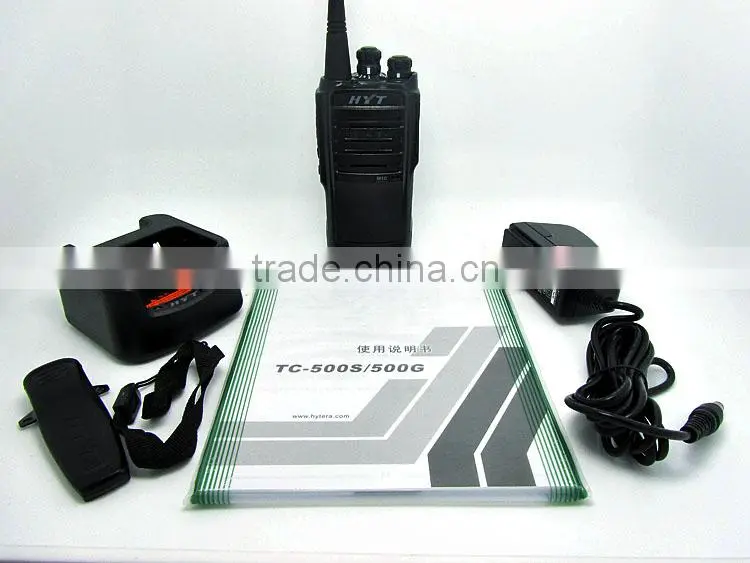

Accessories
Guangzhou Etmy Co., Ltd., founded in 2008, is a manufacturer specialized in the research, development and production of walkie-talkies. We are located in Guangzhou, with convenient transportation access. All of our products comply with international quality standards and are greatly appreciated in a variety of different markets throughout the world.
