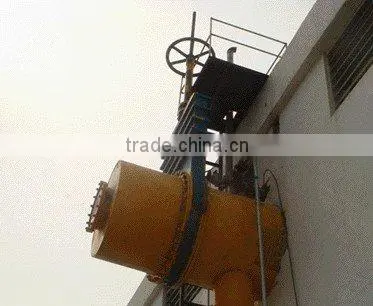

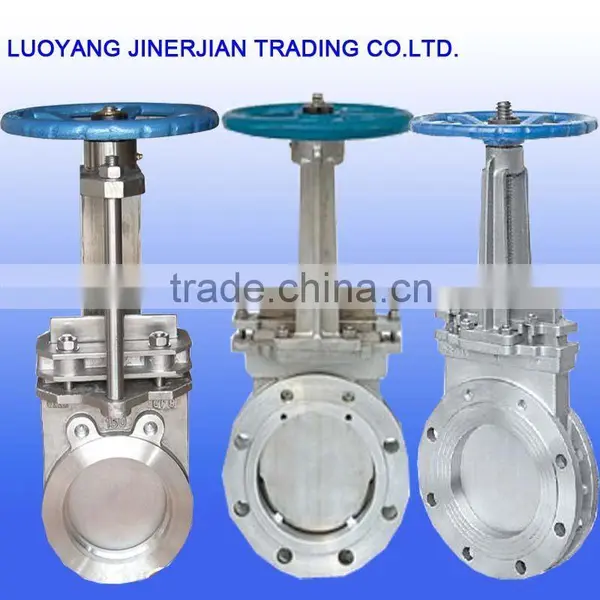

chainwheel knife gate valve
Design and manufacture: JB/T8691-1998
structural length: GB/T15188.2-94
Flange connection: GB/T9113.1-2000 JB/T79-94
testing and acceptance:GB/T13927-92
Key parts material
Valve body, upper cap |
Carbon steel, stainless steel |
Valve plate |
stainless steel |
Stem |
stainless steel |
Seal ring |
Rubber, PTFE, stainless steel,hard alloy |
Key performanceindicators
Nominal pressure |
PN |
Casing test |
1.5XPN |
Leak test |
1.1XPN |
Operating temperature |
Rubber ≤80°C, PTFE≤180°C, hard sealing ≤425°C |
Working medium |
Syrup, paper pulp, sewage, coal slurry, dust, slag-water mix |

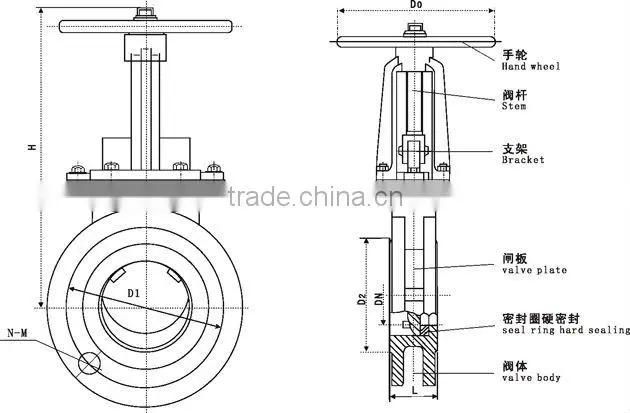

Profile and connection dimension Unit:mm
Nominal pressure(MPa) |
Nominal through diameter(mm) |
L |
D |
D1 |
D2 |
H |
N-M |
D0 |
1.0 |
50 |
48 |
160 |
125 |
100 |
285 |
4-M16 |
180 |
65 |
48 |
180 |
145 |
120 |
298 |
4-M16 |
180 |
|
80 |
50 |
195 |
160 |
135 |
315 |
4-M16 |
220 |
|
100 |
50 |
215 |
180 |
155 |
365 |
8-M16 |
220 |
|
125 |
57 |
245 |
210 |
185 |
400 |
8-M16 |
230 |
|
150 |
57 |
280 |
240 |
210 |
475 |
8-M20 |
280 |
|
200 |
70 |
335 |
295 |
265 |
540 |
8-M20 |
360 |
|
250 |
70 |
390 |
350 |
320 |
630 |
12-M20 |
360 |
|
300 |
76 |
440 |
400 |
368 |
780 |
12-M20 |
400 |
|
350 |
76 |
500 |
460 |
429 |
885 |
16-M20 |
400 |
|
400 |
89 |
565 |
515 |
482 |
990 |
16-M22 |
400 |
|
450 |
89 |
615 |
565 |
532 |
1100 |
20-M22 |
530 |
|
500 |
114 |
670 |
620 |
585 |
1200 |
20-M22 |
530 |
|
600 |
114 |
780 |
725 |
685 |
1450 |
20-M27 |
600 |
|
700 |
130 |
895 |
940 |
800 |
1700 |
24-M27 |
600 |
|
800 |
130 |
1010 |
950 |
905 |
2000 |
24-M30 |
680 |
|
900 |
140 |
1110 |
1050 |
1005 |
2300 |
28-M30 |
680 |
