electric actuator Flanged Knife Gate Valve
- 32000 Set / Sets per Month
- Tianjin/ Qingdao/ Shanghai/ Ningbo
- T/T L/C D/P D/A Credit Card PayPal
Product Details
Standard or Nonstandard: | Standard | Structure: | Gate | Pressure: | Low Pressure |
Power: | Manual | Material: | Other, Casting, Stainless Steel | Temperature of Media: | Normal Temperature |
Media: | Water | Port Size: | DN 25-500 mm | Place of Origin: | Tianjin, China |
Model Number: | Electric Actuator Flanged Knife Gate Valve | Brand Name: | JINERJIAN |
Product Description

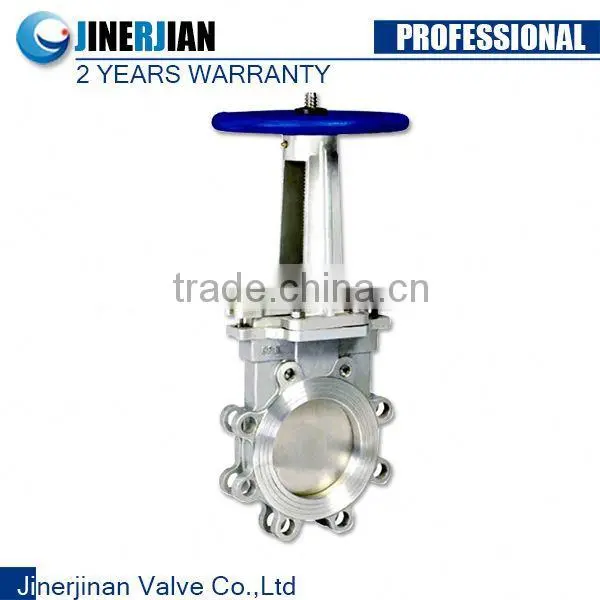

Electric Actuator Flanged Knife Gate Valve
PN(MPa) | DN(mm) | L | D1 | D2 | H | N-M | D0 |
1.0 | 50 | 48 | 125 | 100 | 285 | 4-M16 | 180 |
65 | 48 | 145 | 120 | 298 | 4-M16 | 180 | |
80 | 50 | 160 | 135 | 315 | 4-M16 | 220 | |
100 | 50 | 180 | 155 | 365 | 8-M16 | 220 | |
125 | 57 | 210 | 185 | 400 | 8-M16 | 230 | |
150 | 57 | 240 | 210 | 475 | 8-M20 | 280 | |
200 | 70 | 295 | 265 | 540 | 8-M20 | 360 | |
250 | 70 | 350 | 320 | 630 | 12-M20 | 360 | |
300 | 76 | 400 | 368 | 780 | 12-M20 | 400 | |
350 | 76 | 460 | 429 | 885 | 16-M20 | 400 | |
400 | 89 | 515 | 482 | 990 | 16-M22 | 400 | |
450 | 89 | 565 | 532 | 1100 | 20-M22 | 530 | |
500 | 114 | 620 | 585 | 1200 | 20-M22 | 530 | |
600 | 114 | 725 | 685 | 1450 | 20-M27 | 600 | |
700 | 130 | 940 | 800 | 1700 | 24-M27 | 600 | |
800 | 130 | 950 | 905 | 2000 | 24-M30 | 680 | |
900 | 140 | 1050 | 1005 | 2300 | 28-M30 | 680 |
;
1.We obtained ISO9001 quality system certification.We inspect the parts of valve carefully, 48 produce steps, try to supply you ideal valve. |
About Our Company: Jinerjan Tianjin Valve Co.,Ltd. Is located in China's most dynamic economic zone of the Bohai Sea-Tianjin BinhaiNew Area. 33 kilometers away from Xingang Port,10 kilometers away from Tianjin Binhai International Airport. We engages in design,production,sales of butterfly valve manufactures, We specialized in wafer butterfly valve,worm butterfly valve,lug butterfly valve, flange butterfly valve,electric butterfly valve, pneumatic butterfly valve,dual plate check valve and soft seal gate valve,DN40-1200,0.6/1.0/1.6Mpa. We can supply different body materials such as cast iron, ductile iron, cast steel, stainless steel and bronze according to different working conditions. The company possesses complete advanced in spection to control the whole quality process from casting, forging,spare parts to finished products,including spectrum analyzer,hardness tester, chemical analyzer, ultrasonic thickness gage, monitoring system equipment, strictly produce according to ISO,API,JIS,DIN standard.Our butterfly valve is unique and novel, zero leakage and small torque. Mainly used in water supply, sewage treatment, chemical industry, steel plant and mining industry, well sold in more than 42 countries such as southeast of Asia, South America and the Middle East etc. Factory faith: attracting clients by 19 years brand and quality, gaining the market by excellent technique. Jinerjian Tianjin Valve Co., Ltd. hopes to develop together with all friends! |
....
