Specification:
1. 100% raw material
2. 14 years experience
3. ISO 9001
4. OEM & ODM
5. Customized products are acceptable

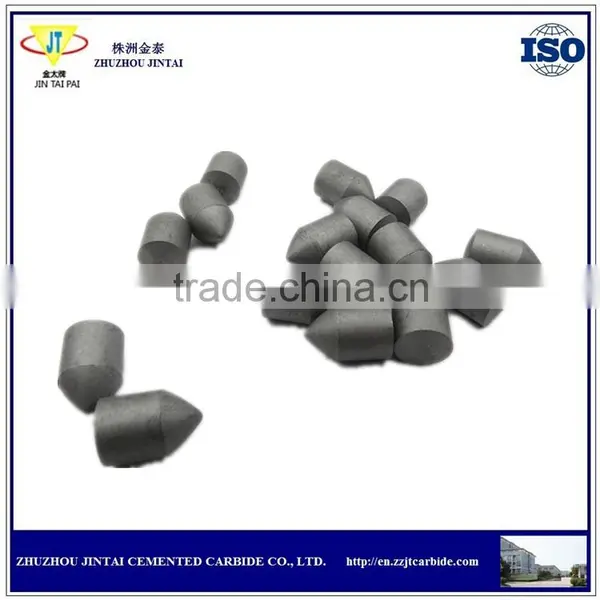

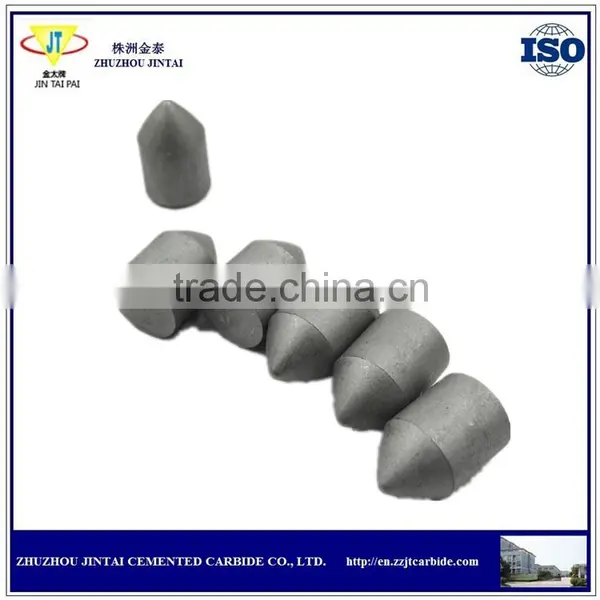

Display of Tungsten Carbide Button Bit
Tungsten Carbide Button Bit is of wide application, especially for hard rocks.

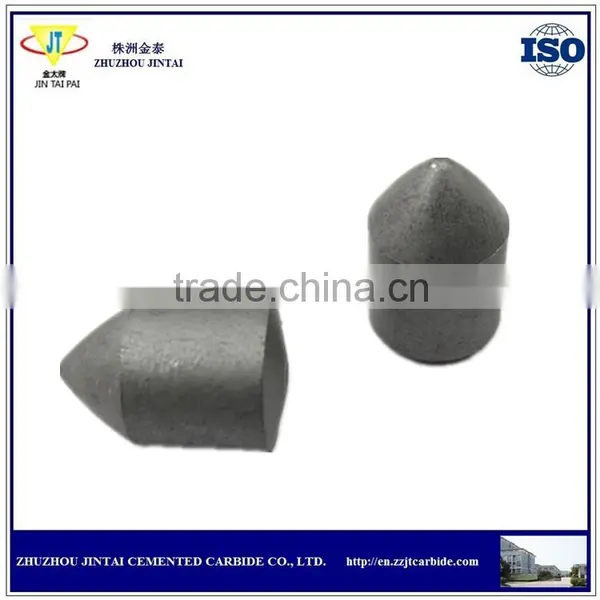

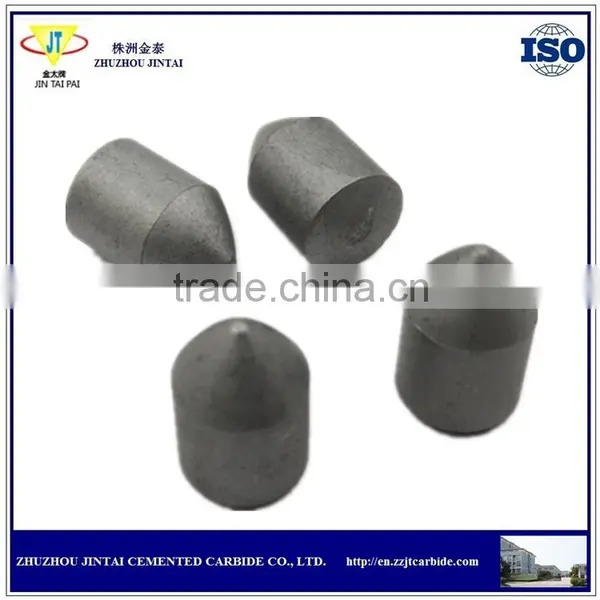

Tungsten Carbide Button Bit with Different Sizes
Customized Tungsten Carbide Button Bit available!
Tungsten Carbide Button Bit with Common Grades
Grade | Physical and Mechanical Properties | Recommended Applications | ||
Density g/cm3 | Hardness no less than HRA(HV) | TRS Mpa | ||
YG4C | 15.1 | 90 | 1800 | Mainly used for cutting soft-medium-hard materials drill hammer. |
YG6 | 14.95 | 90.5 | 1900 | As electric coal drill bits, picks coal, oil cone bits and the drag button bit. |
YG8 | 14.8 | 89.5 | 2200 | As a core drill, electric coal drill bits, picks coal, oil cone bits and the drag button bit. |
YG8C | 14.8 | 88.5 | 2400 | Used mainly for small and medium impact drill button and rotating exploration drilling Bush. |
YG11C | 14.4 | 86.5 | 2700 | Most used in impact drill bits and roller bits for cutting high-hardness materials button. |
YG13C | 14.2 | 86.5 | 3000 | Mainly used in Rotary percussive drill bit for cutting high-hardness materials button. |
YG15C | 14 | 85.5 | 3000 | For oil Cone Drill and cutting in soft-medium-hard rock drilling tools. |
Any Grade will be acceptable as your requirements!
Customer NOTICE
To save your value time, please inform us of the following information:
1. Grade
2. Type/Dimension/Clear Drawing
3. Blanks or finished products
4. Available tolerance
5. Available surface toughness
6. Order quantity for each type
7. If you have any special requirements of the products, pls send us in advance. We will satisfy you as much as we can.
