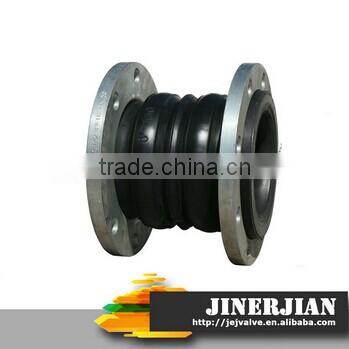

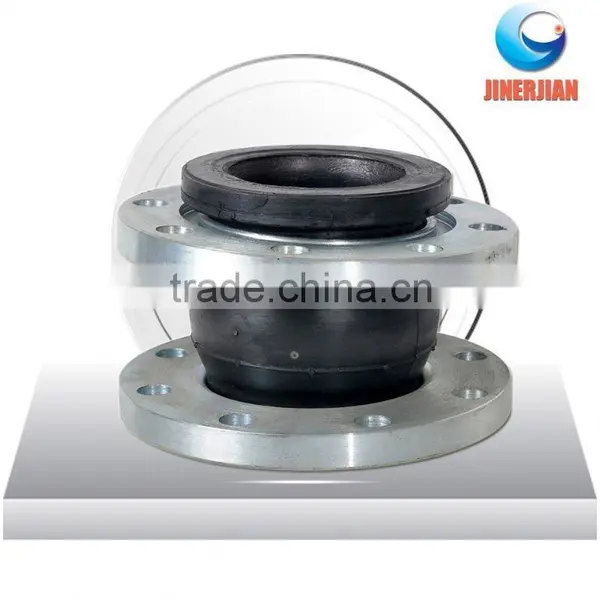

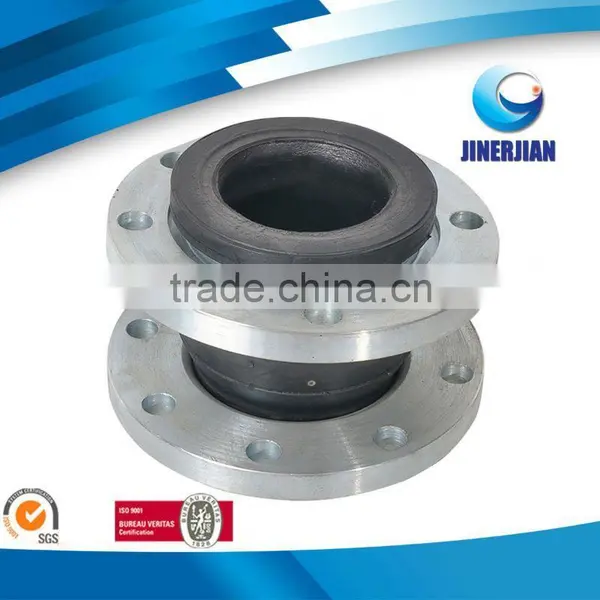

Flexible Rubber Joint Rubber Expansion Joint Manufacturers
DIN Flange Standard Expansion

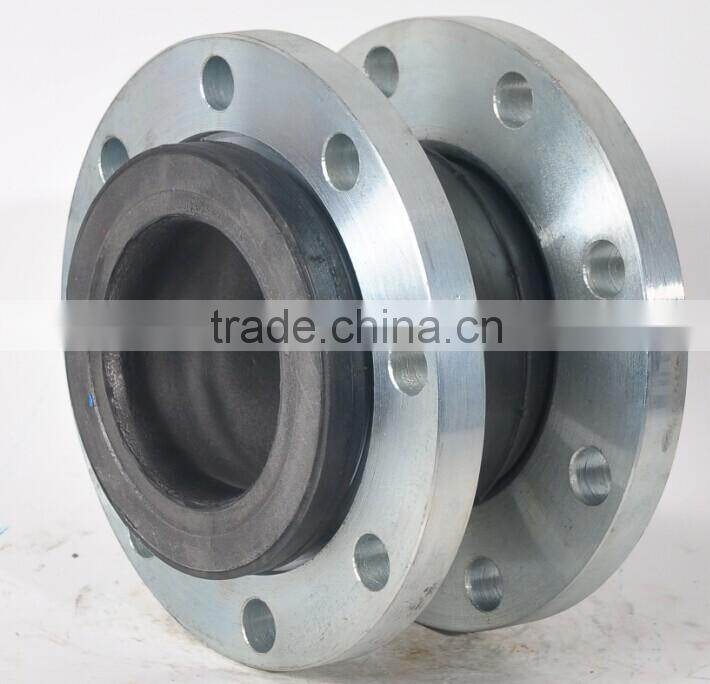

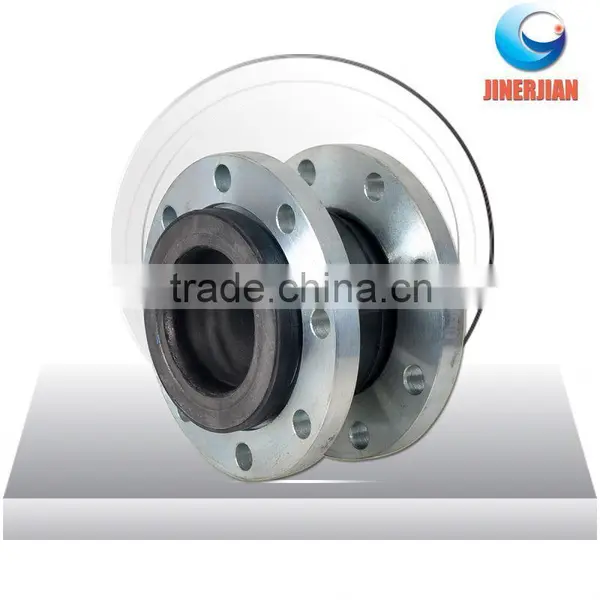

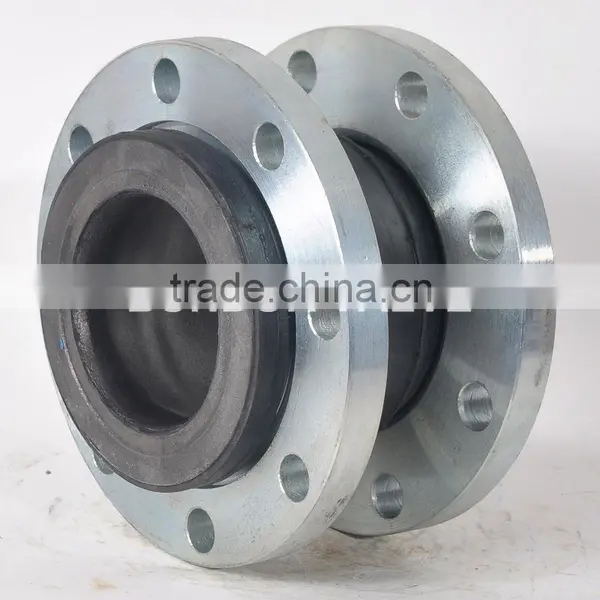

Flexible Rubber Joint
Material: EPDM, NBR, NR, Polarity rubber
Sizes:DN10-DN1000
Surface:Galvanized, Epoxy
Pressure:0.1~1.6MPa
Media:Hot Air, SO2, Steam, Water, Oil, Acid,
Gas And etc.

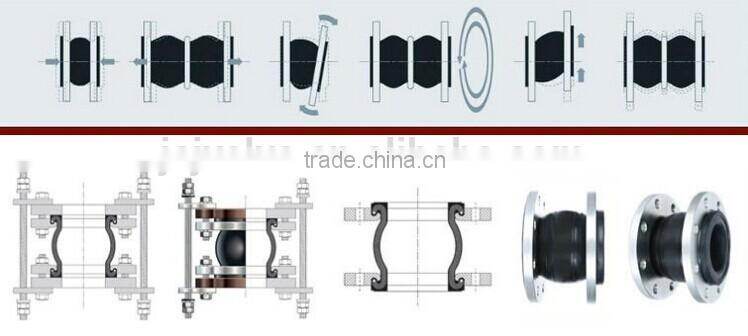

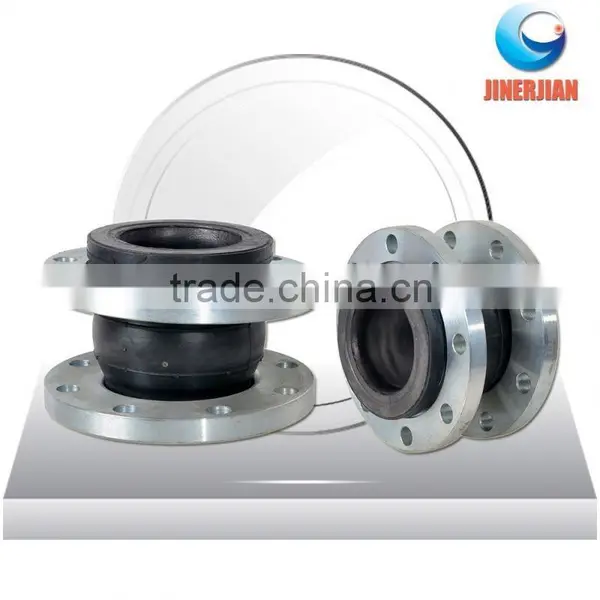

Type: Single sphere or arch,
Double spheres or arch
Flange Drilled:BS, DIN, ANSI,
JIS or others provided drawing samples
Threads:DIN, BSPT, BSP, NPS, NPT, Metric,
(ISO7/1, DIN 2999, ANSI B1.20.1)

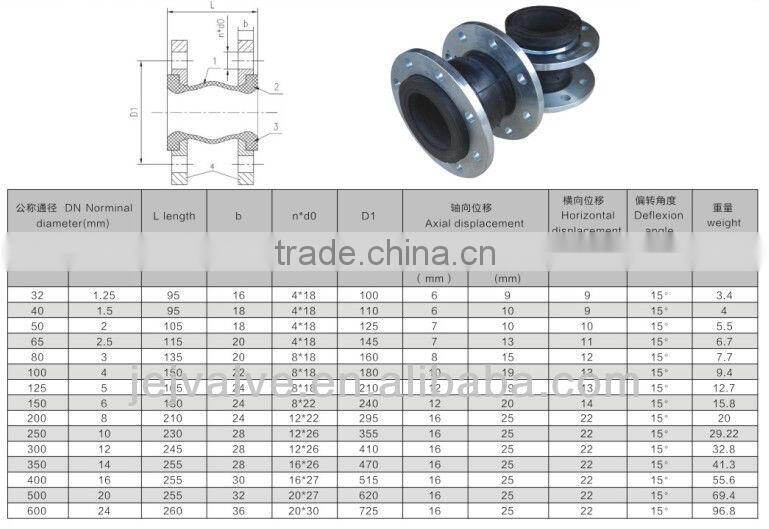

| DN Norminal diameter(mm) | L length | b | n*d0 | D1 | Axial displacement | Horizontal displacement | Deflexion angle | weight | ||
| DN | Inch | mm | mm | mm | mm | Extension (mm) | Compression (mm) | mm | a1+a2 | kg |
| 32 | 1.25 | 95 | 16 | 4*18 | 100 | 6 | 9 | 9 | 15 degree | 3.4 |
| 40 | 1.5 | 95 | 18 | 4*18 | 110 | 6 | 10 | 9 | 15 degree | 4 |
| 50 | 2 | 105 | 18 | 4*18 | 125 | 7 | 10 | 10 | 15 degree | 5.5 |
| 65 | 2.5 | 115 | 20 | 4*18 | 145 | 7 | 13 | 11 | 15 degree | 6.7 |
| 80 | 3 | 135 | 20 | 8*18 | 160 | 8 | 15 | 12 | 15 degree | 7.7 |
| 100 | 4 | 150 | 22 | 8*18 | 180 | 10 | 19 | 13 | 15 degree | 9.4 |
| 125 | 5 | 165 | 24 | 8*18 | 210 | 12 | 19 | 13 | 15 degree | 12.7 |
| 150 | 6 | 180 | 24 | 8*22 | 240 | 12 | 20 | 14 | 15 degree | 15.8 |
| 200 | 8 | 210 | 24 | 12*22 | 295 | 16 | 25 | 22 | 15 degree | 20 |
| 250 | 10 | 230 | 28 | 12*26 | 355 | 16 | 25 | 22 | 15 degree | 29.22 |
| 300 | 12 | 245 | 28 | 12*26 | 410 | 16 | 25 | 22 | 15 degree | 32.8 |
| 350 | 14 | 255 | 28 | 16*26 | 470 | 16 | 25 | 22 | 15 degree | 41.3 |
| 400 | 16 | 255 | 30 | 16*27 | 515 | 16 | 25 | 22 | 15 degree | 55.6 |
| 500 | 20 | 255 | 32 | 20*27 | 620 | 16 | 25 | 22 | 15 degree | 69.4 |
| 600 | 24 | 260 | 36 | 20*30 | 725 | 16 | 25 | 22 | 15 degree | 96.8 |
| 700 | 28 | 260 | 36 | 24*30 | 840 | 16 | 25 | 22 | 15 degree | |
| 800 | 32 | 260 | 36 | 24*33 | 950 | 16 | 25 | 22 | 15 degree | |
| 900 | 36 | 260 | 36 | 28*33 | 1050 | 16 | 25 | 22 | 15 degree | |
| 1000 | 40 | 260 | 36 | 28*36 | 1160 | 18 | 26 | 24 | 15 degree | |
Features:
Improve the flow circulation and avoid the bellow deformation
Absorbs thermal expansion and shock
Structure: bellows + flat welding flanges
Main material:Compensates converting misalignment Bellows: stainless steel 304
Flanges: stainless steel 304 or carbon steel
Compensates for exhaust converter misalignment
In the 20 years, we have customers in many countries around the world.
1.We promise no leakage and breakage for valves. Every butterfly valve will test for 2 times test pressure before leave factory. We will replace the valve if there is quality problem within 24 months guarantee period.
2.We obtained ISO9001 quality system certification.We inspect the parts of valve carefully, 48 produce steps, try to supply you ideal valve.
3.We can supply different kinds of materials according to customers' requests,such as DI,cast steel,SS304,SS316 body and disc. EPDM,NBR,PTFE,Viton etc. Enough stock ensure fast delivery.
4.We have more than 150 types body moulds, which include ISO,DIN,ANSI,BS standard.
5.We own full-automatic machine paint line, match high-temperature baking house,which makes smooth paint and good appearance of valve.
|
|
|

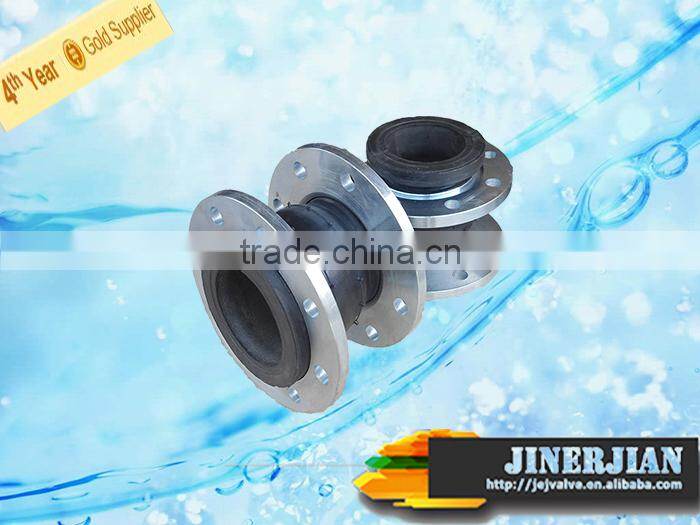

JINERJIAN flexible rubber expansion joints |

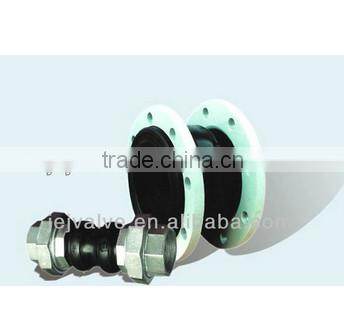

Double threaded flexible rubber joint |
double threaded flexible rubber joint |
|
|
|
DN40-600 High Quality Flexible Rubber Expansion Joints |

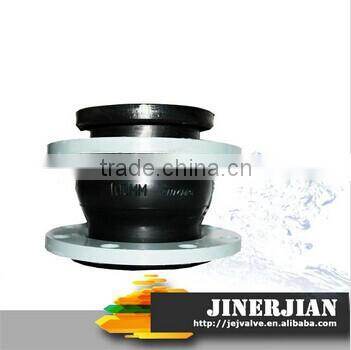

Flange Rubber Joint |

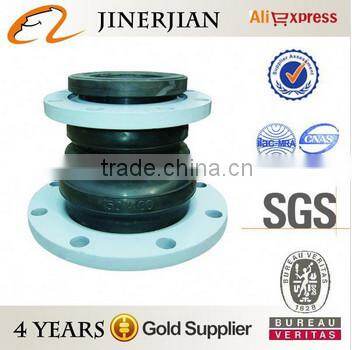

Professional Production Single Bellow Rubber Expansion Joints |
