Help CenterBUNDOR 800X Control Valve 9308-621c
US$ 20 - 50
MOQ: 30 Sets
Key Specifications
Get Latest Price
Standard or Nonstandard:
Standard
Structure:
Other, Control for 800X control valve 9308-621c
Pressure:
Medium Pressure
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin/Qingdao/Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Standard or Nonstandard
Standard
Structure
Other, Control for 800X control valve 9308-621c
Pressure
Medium Pressure
Power
Manual
Material
Casting
Temperature of Media
Medium Temperature
Media
Water
Port Size
DN40-DN609
Place of Origin
Tianjin, China
Model Number
300X
Brand Name
BUNDOR
Application
General

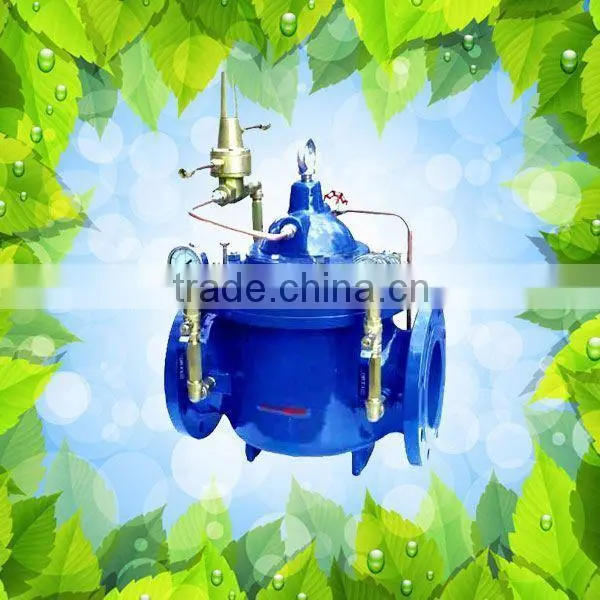

800X control valve 9308-621c
Product Introduction:
The 800X control valve 9308-621c is a kind of valve intended for use between the water supply part and the return water part of an air conditioning system to balance the pressure difference.
This valve can increase the utilization factor of a system, maintain the pressure difference at a precise constant value, and maximally reduce the system noise and avoid damages caused to the equipment because of an excessive pressure difference. The 800X control valve 9308-621c excels over other balance valve in the fact that it does not have an actuating mechanism, depends entirely on its own pressure difference to realize the function of balancing the system. Accordingly, our pressure difference balance valve saves energy and requires little installation space, thus can be regarded as an intelligent valve.
This valve can increase the utilization factor of a system, maintain the pressure difference at a precise constant value, and maximally reduce the system noise and avoid damages caused to the equipment because of an excessive pressure difference. The 800X control valve 9308-621c excels over other balance valve in the fact that it does not have an actuating mechanism, depends entirely on its own pressure difference to realize the function of balancing the system. Accordingly, our pressure difference balance valve saves energy and requires little installation space, thus can be regarded as an intelligent valve.
Product Specifications:
800X control valve 9308-621c
The role and purposes: for air-conditioning system supply / return water, ensure differential pressure between supply and return water, improve system utilization. To maintain the exact pressure utilization, reduce system noise as well as damage to equipment caused by excessive differential pressure.
Pressure grade: PN10, PN16, PN25
Diaphragm type: DN20-450mm
Piston type : DN500-1200mm
Medium temperature :0 - 80°C
The role and purposes: for air-conditioning system supply / return water, ensure differential pressure between supply and return water, improve system utilization. To maintain the exact pressure utilization, reduce system noise as well as damage to equipment caused by excessive differential pressure.
Pressure grade: PN10, PN16, PN25
Diaphragm type: DN20-450mm
Piston type : DN500-1200mm
Medium temperature :0 - 80°C
| DN(mm) | L(mm) | H(mm) | H(mm) | (KG) |
| 50 | 234 | 98 | 320 | 18 |
| 65 | 240 | 115 | 410 | 22 |
| 80 | 285 | 131 | 430 | 30 |
| 100 | 325 | 145 | 480 | 55 |
| 125 | 345 | 160 | 535 | 70 |
| 150 | 395 | 185 | 600 | 80 |
| 200 | 470 | 160 | 675 | 110 |
| 250 | 575 | 180 | 720 | 210 |
| 300 | 640 | 200 | 820 | 300 |
| 350 | 645 | 225 | 860 | 380 |
| 400 | 970 | 750 | 950 | 350 |
Main Technical Feature:
800X control valve 9308-621c
| Nominal Pressure | 1.0MPA | 1.6MPA | 2.5MPA |
| Test pressure of the shell | 1.5MPA | 2.4MPA | 3.75MPA |
| Sealed test pressure | 1.1MPA | 1.76MPA | 2.75MPA |
| Suitable temperature | ≤80°C | ||
| Suitable medium | water | ||
