Mining Tools Tungsten Carbide Button

Specifications

1. 100% raw material
2. 13 years experience
3. ISO 9001
4. OEM & ODM
5. Customized products are acceptable

Specification:

1. 100% raw material

2. 13 years experience

3. ISO 9001

4. OEM & ODM

5. Customized products are acceptable

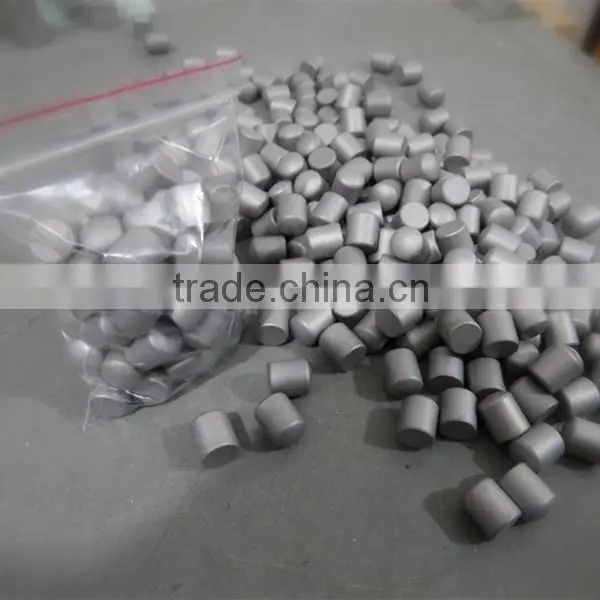

Display of Tungsten Carbide Buttons

Tungsten Carbide Buttons are of wide application, especially for mining tools.





Tungsten Carbide Buttons with Different Sizes

Customized Tungsten Carbide Buttons are available ! ! !



Tungsten Carbide Buttons with Common Grades

Grade	Physical and Mechanical Properties			Applications Recommended
	Density                 g/cm3	Hardness no less than           HRA(HV)	TRS         Mpa
YG4C	15.1	90	1800	Mainly used for cutting soft-medium-hard   materials drill hammer.
YG6	14.95	90.5	1900	As electric coal drill bits, picks coal,   oil cone bits and the drag button bit.
YG8	14.8	89.5	2200	As a core drill, electric coal drill bits,   picks coal, oil cone bits and the drag button bit.
YG8C	14.8	88.5	2400	Used mainly for small and medium impact   drill button and rotating exploration drilling Bush.
YG11C	14.4	86.5	2700	Most used in impact drill bits and roller   bits for cutting high-hardness materials button.
YG13C	14.2	86.5	3000	Mainly used in Rotary percussive drill bit   for cutting high-hardness materials button.
YG15C	14	85.5	3000	For oil Cone Drill and cutting in   soft-medium-hard rock drilling tools.

 Any Grade will be acceptable as your requirements!



Customer NOTICE

To save your value time, please inform us of the following information:

1. Grade

2. Type/Dimension/Clear Drawing

3. Available tolerance

4. Order quantity for each type

5. Blanks or finished products

6. If you have any special requirements of the products, pls send us in advance. We will satisfy you as much as we can.



Our Products Ranges

Tungsten Carbide Plates

Tungsten Carbide Strips

Tungsten Carbide Disc Cutters

Tungsten Carbide Balls

Tungsten Carbide Inserts

Tungsten Carbide Tips

Tungsten Carbide Rods

Tungsten Carbide Cutter Blades

Tungsten Carbide Coal Drilling Blades

Tungsten Carbide Teeth Balls

Tungsten Carbide Road-digging Teeth

Tungsten Carbide Drawing Dies

Tungsten Carbide Rollers

Tungsten Carbide Tungsten Carbide Buttons

Tungsten Carbide Tire Studs

Tungsten Carbide Non-standard Special-shaped Moulds



Company Profile

Zhuzhou Jintai Cemented Carbide Co., Ltd



Packaging & Shipment



Contact Us

Pls contact us if you have any questions!
