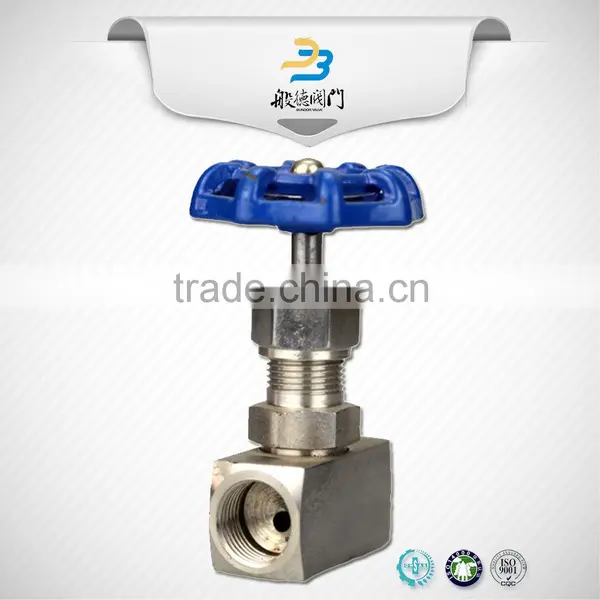

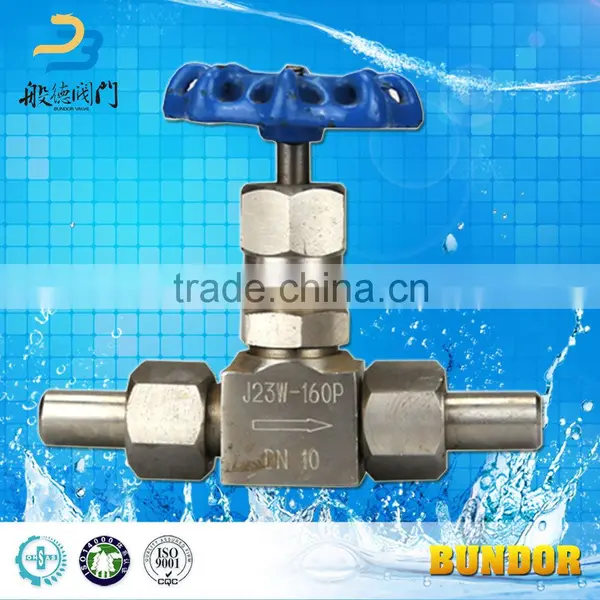

Stainless Steel Manual Type High Pressure Needle Valve
|
name | Stainless Steel Manual Type High Pressure Needle Valve |
| Size | 1/16" to 2" and 2mm to 50mm |
|
| Stem | Brass or Stainless steel or ABS | |
| Connection | Thread,weld,flange | |
| Thread | NPT,BSP,ISO,DIN | |
| Material | SS304,SS316,SS304L,SS316L,A105 | |
| Certificate | ISO9001:2008 |
Product Description
Stainless Steel Manual Type High Pressure Needle Valve's advantages: 1).Connection way: Thread(BSPT/PT/NPT)
2).Nominal diameter : DN15-DN100
3).Suitable Medium: water, oil, gas,carbonic acid,hydrogennitrate
4).Suitable Temperature: -40-350°C
5).Material:WCB/SS301/SS304/SS316
6).Design Adaptive: JB, ISO, API, GB, BS
| DN | NPT | H | L | D0 |
| DN6 | 1/4” | 82 | 57 | 57 |
| DN10 | 3/8” | 82 | 57 | 57 |
| DN15 | 1/2” | 90 | 68 | 63 |
| DN20 | 3/4” | 110 | 80 | 70 |
| DN25 | 1” | 130 | 90 | 89 |
| Type | (Mpa)Nominal Pressure | PS(Mpa) Test Pressure | (Mpa)Working Pressure | Working Temperature | Suitable | ||
| Shell | Seal | Seal | |||||
| J13W-16P | 1.6 | 2.4 | 1.76 | 0.6 | 1.6 | P≤540℃ | Petroleum gas Water,Asic, Steam,Oil etc. |
| J13W40P | 4.0 | 6.0 | 4.4 | 0.6 | 4 | ||
| J13W-160 | 16 | 24 | 17.6 | 0.6 | 16 | C≤425℃ | |
| J13W-320P | 32 | 48 | 35.2 | 0.6 | 32 | ||
| Part Name | Stem,Bonnet | Stem,Disc | Packing |
| J13W-16P | Cr,Ni Stainless steel | Cr,Ni Stainless steel | PTFE,Soft Graphite |
| J13W-160,J13W-40 | High grade carbon steel | High grade carbon steel |
Product Process
Packaging and transportation
Application area
Our history
Product Certification
1.We promise no leakage and breakage for valves. Every valve will test for 2 times test pressure before leave factory. We will replace the valve if there is quality problem within 24 months guarantee period.
2.We obtained ISO9001 quality system certification,ISO14001 certification,GB/T 28001 certification.We inspect the parts of valve carefully, 48 produce steps, try to supply you ideal valve.
3.We can supply different kinds of materials according to customers' requests,such as DI,cast steel,SS304,SS316 body and disc. EPDM,NBR,PTFE,Viton etc. Enough stock ensure fast delivery.
4.We have more than 150 types body moulds, which include ISO,DIN,ANSI,BS standard.
5.We own full-automatic machine paint line, match high-temperature baking house,which makes smooth paint and good appearance of valve.
Our Customers
In the 21 years, we have customers in many countries around the world.
