Specifications
cattle fence machineNet height: 0.8, 0.9, 1.0, 1.1, 1.2m
Net length: 50m, 100m
Mesh: 15-14-13-11-10-8-6, 15-18-20-40-50
Shijiazhuang Tianyue Honest Co., Ltd
Lucy Lee
tel: 86-311 89105745
fax: 86-311 89105741
Cattle fence machine
1. grass land fence machine cattle fence machine
2. ISO9001 quality control system
3. ISO14001 circumstance control system
4. is suitable for producing big pieces of cattle fence
1.Warp wire diameter:1.7-3.5 mm
2.Weft wire diameter:1.5-3 mm
3.Efficiency:1T-1.5T/ 8 hours

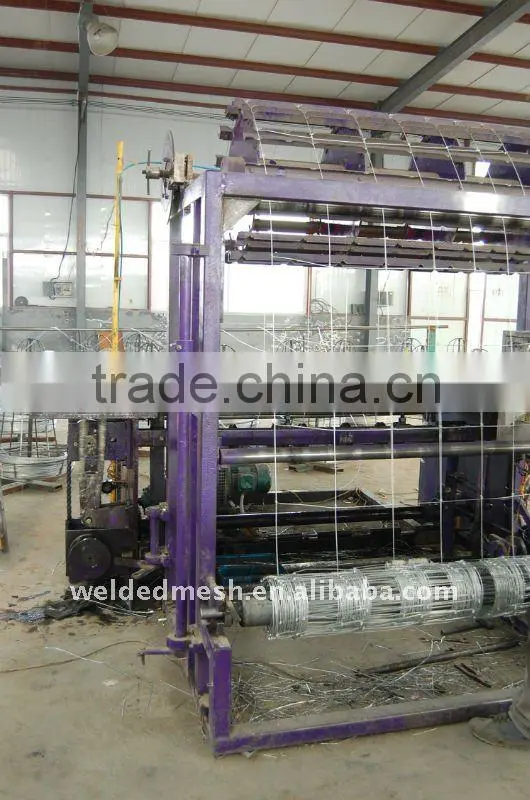

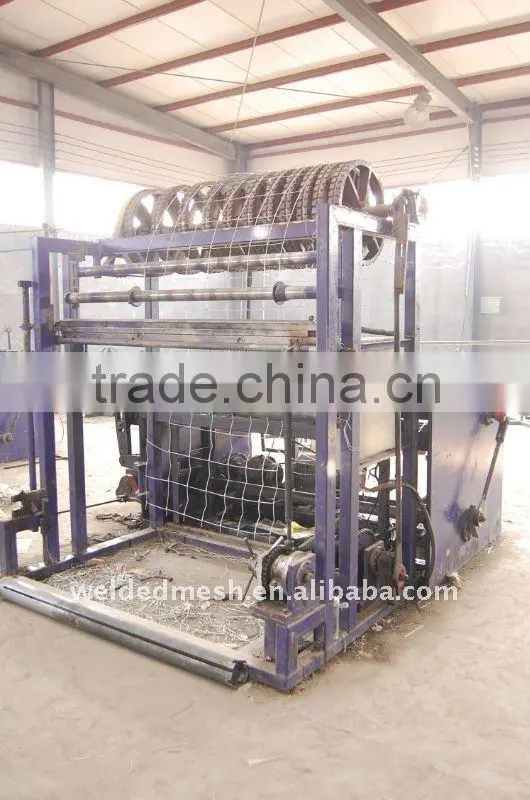

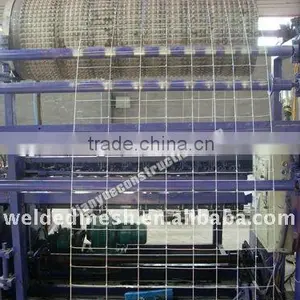

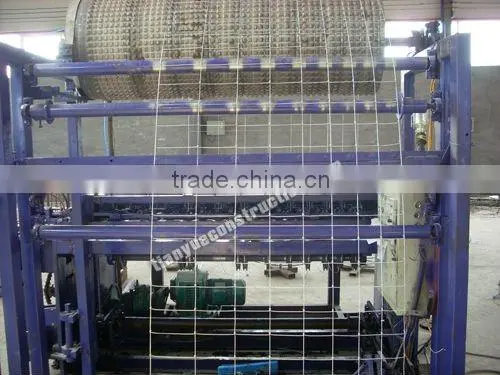

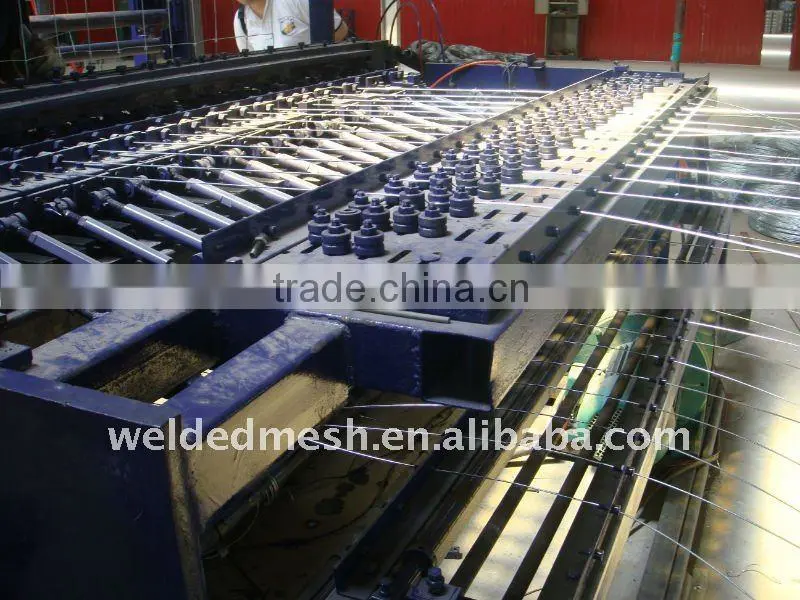

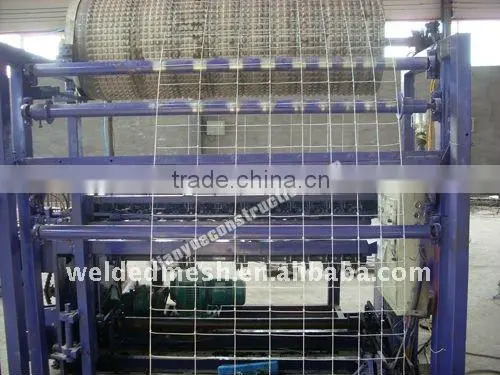

grassland fence automatic weaving machine
This machine is a new model equipment designed by our company. Can automatically weave the weft wire and warp wire together. The grassland fence produced has the features of innovative structure, firmness, precision and reliable property. The productive capacity can be 150m/h.
TYPE |
1400MM |
Mainframe Dimension |
2.0m×1.8m×2.0m |
Power |
4KM |
Production time |
35/min Example |
stay space is 6in |
|
8 hours output |
2500m |
Weight |
4T |
Wire Diameter Scope |
Top/bottom wire gauge 2.0mm -3.4mm Line and stay wire gauge 1.8mm-2.5mm |
Can weaving material |
hinge tensile wire,mild wire,black wire.The specification will be highly |
TYPE |
2000MM |
Mainframe Dimension |
2.6m×2.4m×2.0m |
Power |
4KM |
Production time |
35/min (Example stay space is 6in) |
8 hours output |
2500m |
Weight |
5T |
Wire Diameter Scope |
Top/bottom wire gauge 2.0mm -3.4mm Line and stay wire gauge 1.8mm-2.5mm |
Can weaving material |
hinge tensile wire,mild wire,black wire.The specification will be highly |
