Specifications
Welded Wire MeshISO9001:2000
Galvanized, stainless steel, PVC coated
Mesh:1/4",3/8",5/8",1/2",3/4",1"to 6"
Guage:#12--#24
Welded Wire Mesh/Galvanized Welded Wire Mesh/PVC Coated Welded Wire Mesh/ Welded Wire Mesh Panel/Welded Wire Mesh Sheet
Anping Tianyue Wire Mesh Co.,Ltd is the leading Wleded Wire Mesh supplier, we have the widest range of Mild Steel Wire Mesh, Galvanised Wire Mesh and Stainless Steel Welded Mesh available from stock. From the lightest welded mesh rolls up to heavy industrial wire mesh panels, we will have a wire mesh suitable for all your application requirements.
Weldedmesh i widely used in domestic and industrial applications. In workshops or factories, security mesh can be used for window grilles or as machinery guards. In warehouse, welded mesh can be used for racking, storing and anti-collapse mesh. Use it in your garden for your plants and creepers or for animal care as aviary, rabbit and kennel mesh and other protective enclosures. In farming, feed racking systems, rearing cages etc, are often built with welded mesh. It can also be utilised in construction, civil engineering and transportation in addition to architectural mesh applications such as walkways, balustrades and cladding.
Self colour welded mesh provides a cost effective solution to all your requirements. From the lightest mesh rolls up to heavy industrial wire mesh panels; our extensive rage is available with a heavy or light wire. Use it to build security cages, enclosures or baskets, window grilles and safety guards. Whatever your requirement, we will have a mesh suitable for any application. We still can offer galvanised welded wire mesh, faltmesh, stainless 304welded wire mehs,stainless 316 welded wire mesh, reinforcing mesh, security fencing mesh.

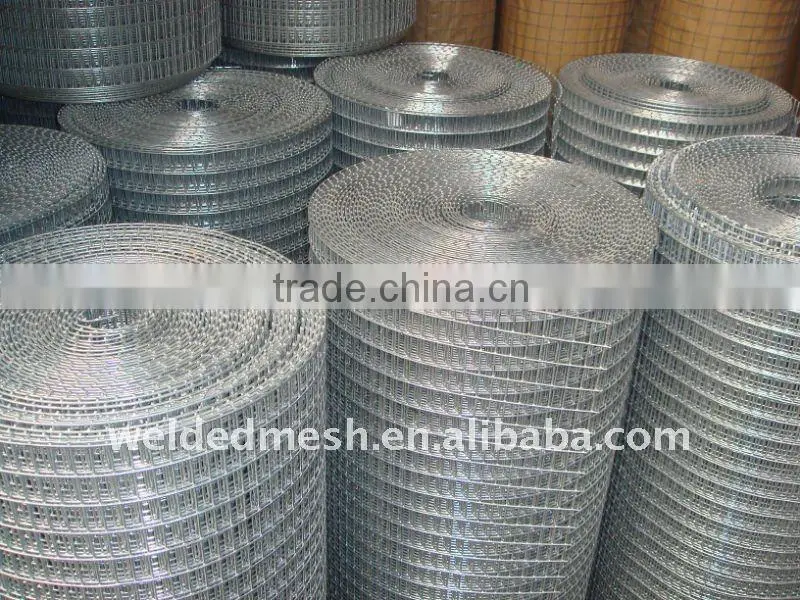

1.Stainless steel welded wire mesh in roll

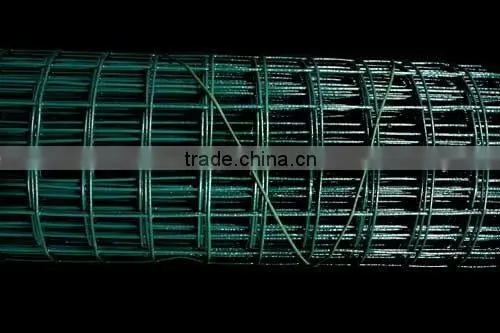

2.PVC coated welded wire mesh in roll

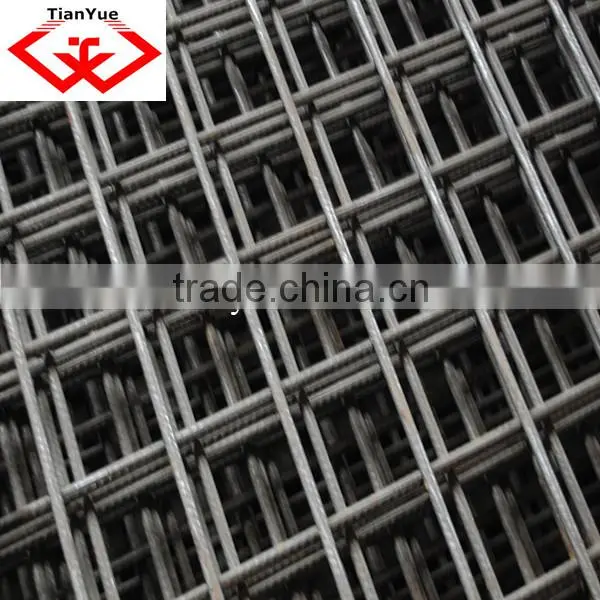

3.Welded wire mesh panel(sheet), steel bar welded wire mesh panel

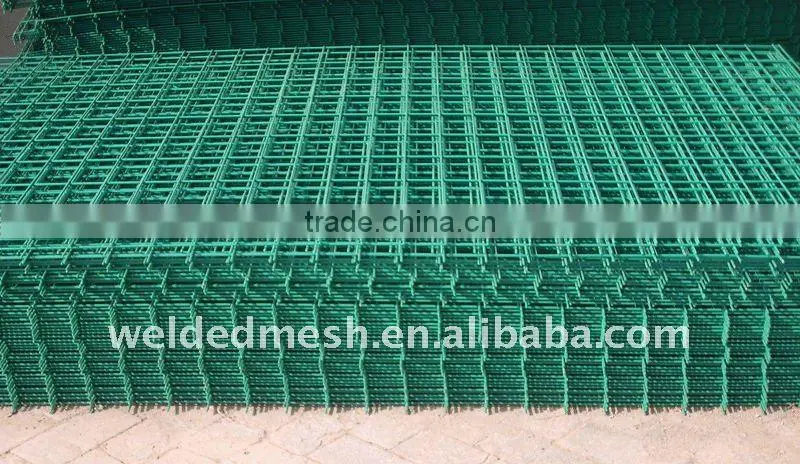

4.PVC coated welded wire mesh panel

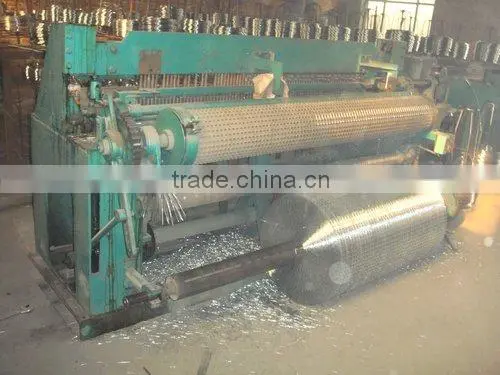

5.The workshop of our factory

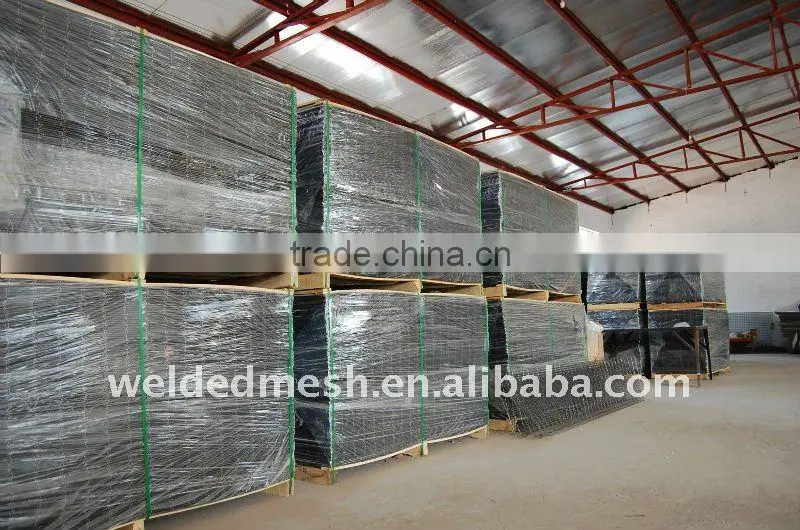

6.The warehours of our factory
Specification List of Welded Wire Mesh | ||
Opening |
Wire Diameter<BWG> |
|
In inch |
In metric unit(mm) |
|
1/4"×1/4" |
6.4mm×6.4mm |
22,23,24 |
3/8"×3/8" |
10.6mm×10.6mm |
19,20,21,22 |
1/2" ×1/2" |
12.7mm×12.7mm |
16,17,18,19,20,21,22,23 |
5/8"×5/8" |
16mm×16mm |
18,19,20,21 |
3/4"×3/4" |
19.1mm×19.1mm |
16,17,18,19,20,21 |
1"×1/2" |
25.4mm×12.7mm |
14,15,16,17,18,19 |
1-1/"2×1-1/2" |
38mm×38mm |
14,15,1617,18,19 |
1"×2" |
25.4mm×50.8mm |
14,15,16 |
2"×2" |
50.8mm×50.8mm |
12,13,14,15,16 |
|
Technical Note: 1,Standard roll length:30m;width;0.5m-1.8m 2, Special sizes available at request 3,Packing: in waterproof paper in rolls. Custom packing available at request. | ||
Galvanized Fencing Mesh | ||
Opening |
Wire Diameter<BWG> |
|
In inch |
In metric(mm) |
|
2"×3" |
50mm×75mm |
2.0mm,2.5mm,1.65mm |
3"×3" |
75mm×75mm |
2.67mm,2.41mm,2.11mm,1.83mm,1.65mm |
2"×4" |
50mm×100mm |
2.11mm,2.5mm |
4"×4" |
100mm×100mm |
2.0mm,2.5mm |
|
Technical Note: 1,Standard roll length:30m;width;0.5m-1.8m 2, Special sizes available at request 3,Packing: in waterproof paper in rolls. Custom packing available at request. | ||
export port - xingang,tianjin
