Dutch Welded Wire Mesh(factory and Seller)

Specifications

Dutch welded wire mesh
1.ISO9001:2000
2.Wire diameter:0.6-6mm
3.Galvanized or pvc coated
4.Stainless steel dutch wire mesh

 Dutch welded wire mesh/Dutch mesh/Stainless steel wire mesh/Bird cage wire mesh/Welded mesh/Welding wire dutch weave crmped wire mesh/Vinly coated welded wire mesh/Welded rabbit cage wire mesh/Dutch wire mesh

Welding and characteristic: Welding. With anti-corrosion, aging, sun, heat and so on.

The form of anti-corrosion electro Galvanized, hot dipped galvanized, spraying plastic, Dip

plastic, etc.

 Types: black wire Fence Panel ,galvanized wire Fence Panel, galvanized after welding

mesh panel, pvc coated mesh panel, frame Fence Panel and stainless steel Fence Panel.



Characteristics: site construction and installation flexibility, can be requested at any time

 in accordance with the structure of the scene shape and size can also be used with the

corresponding column. Product colors bright, anti-aging, corrosion resistance, complete

specifications. Fence Panel of surface formation, strong tension, less susceptible to

deformation by external impact.



Use: industry, agriculture, construction, transport, lawns, farms and other industries

barrier, decorative, mechanical protection, safety protection and isolation

             Specification

Wire Diameter(mm)	Aperture (mm)		Width(m)	Length
	Inch	MM
2.0mm-3.2mm	1"	25.4	0.914m-1.83m	The length does not limit
2.0mm-4.5mm	2"	50.8	0.914m-2.75m
2.0mm-6.0mm	3"	70.2	0.914m-2.75m
2.0mm-6.0mm	4"	101.6	0.914m-2.75m
2.0mm-6.0mm	5"	127	0.914m-2.75m
2.0mm-6.0mm	6"	152.4	0.914m-2.75m
2.0mm-6.0mm	7"	177.8	0.914m-2.75m
2.0mm-6.0mm	8"	203.2	0.914m-2.75m



Mesh(inch)	Mesh(mm)	Wire dia (BWG)
1/4" x 1/4"	6.4 x 6.4	22,23,24
3/8" x 3/8"	10.6 x 10.6	19,20,21,22
1/2" x 1/2"	12.7 x 12.7	16,17,18,19,20,21,22,23
5/8" x 5/8"	16 x 16	18,19,20,21,
3/4" x 3/4"	19.1 x 19.1	16,17,18,19,20
1" x 1/2"	25.4 x 12.7	16,17,18,19,20
1-1/2" x 1-1/2"	38 x 38	14,15,16,17,18,19
1" x 2"	25.4 x 50.8	14,15,16
2" x 2"	50.8 x 50.8	12,13,14,15,16



Our products

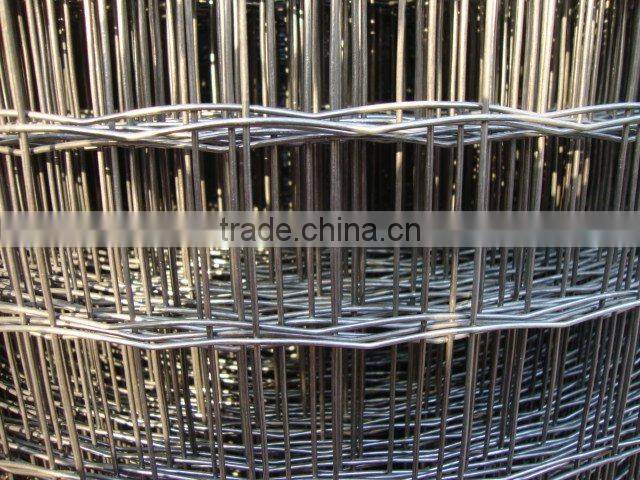

1.Galvanized  Dutch wire mesh

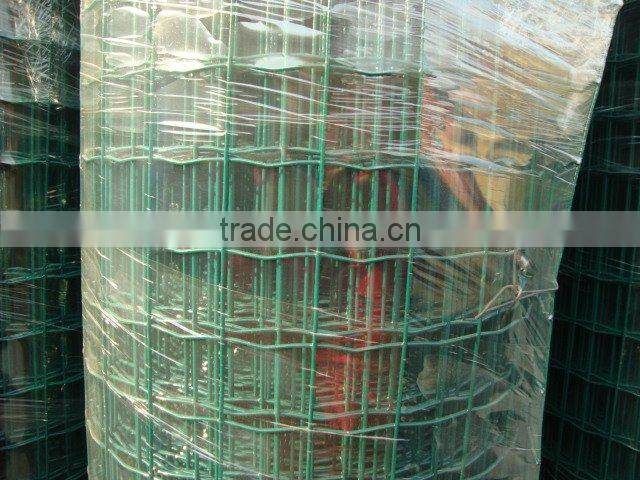

2.PVC Coated Dutch wire  mesh
