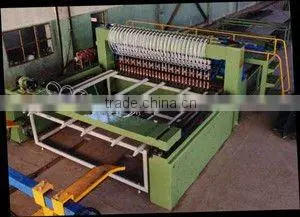

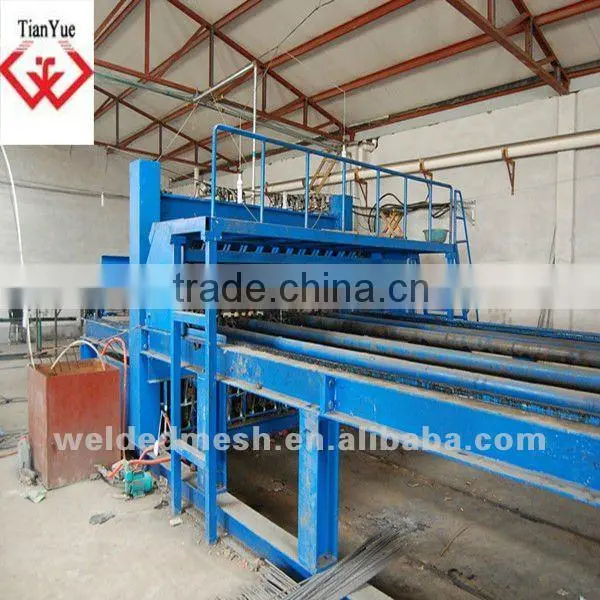

Welded Wire Mesh Machine

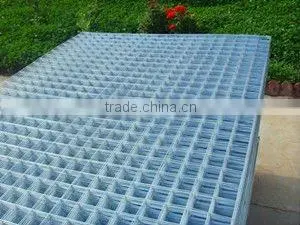

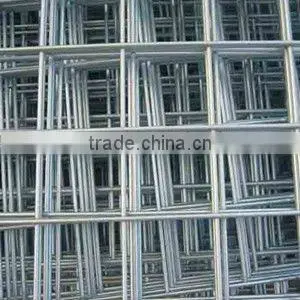

It can produce welded wire mesh with different ranges of mesh counts and sizes from multiple materials as low carbon steel wire and stainless steel wire, etc.
The machine can be used to produce from 0.45-1.0mm low carbon steel wire, stainless steel wire mesh and other kinds of welded wire mesh.
Characteristic:
Its features include sheet frame support, stepless electromagnetic regulation, long wire delivering distance, precise woof delivering, low noise, stable, low power consumption, and standard mesh.
Different types machine
AH-L-W4: It can weld the1/2'-4' wire mesh.
AH-L-W6: diameter 0.63mm to 2mm. It can weld the wire mesh which has thick diameter
AH-J-W6: diameter 0.7-1.70, mesh is 1/4'-1/2'
AH-J-W4: diameter is 0.45,mesh is 1/4'-1/2'
Specification Data Sheet
| model | Mesh(mm) | width (mm) | diameter (mm) | length each roll (mm) | (mesh/minute) | (mesh/minute) | size of exterior (mm) |
| AH-L-W4 | 12.7-101.6(1/2'-4') | 914.4-1219.2(12'-48) | Dia.0.63-Dia.2(BWG23-BWG14) | 120(400') | 65(radia) | 380/220V 50-60HZ | 2600*1700*1350 |
| AH-L-W6 | 25.4-152.4(1'-6') | 1219.2,1524,1828.8(12'-48') | Dia.0.63-Dia.2(BWG23-BWG14) | 91.4m(300') | 45(radia) | 380/220V 50-60HZ 50KVA*6 | 3350*1800*1400 |
| AH-J-W6 | 6.35-12.7(1/4'-1/2') | 1219.2-1828.8(48'-60') | Dia.0.74-Dia.1.07(BWG22-BWG19) | 120m(400) | 75(radia) | 380/220V 50-60HZ 50KVA*6 | 3050*1900*1750 |
| AH-J-W6 | 6.35-12.7(1/4'-1/2') | 914.4-1219.2(12'-48') | Dia.0.45-Dia.1.07(BWG25-BWG19) | 120m(400') | 48(radia) | 380/220V 50-60HZ 50KVA*4 | 2350*1820*1700 |
If you are interested in this items and want to know more information, welcome to contact us!
We will try our best to satisfy you upon receipt of your inquiry.
About us:
Anping Tianyue Welded Wire Mesh Co., Ltd. was eastablished in 2006, located in the biggest wire mesh production base –AnPing city, which is called“hometown of wire mesh” in China.
We have 30 sets of all kinds drawing wire equipment, 50 sets of welding mesh machines and 2 galvanized production lines. Our company has strong manufacturing capability and produced welded wire meshes, fencing meshes and galvanized wires in which fencing meshes are our main products.
Our products is good quality and low price. we can promise the fastest supply. If you have interest,
Pls contact me so we can get the good cooperation. Thank you ! best wishes!
John Hu
Phone:86-15630492962
Tel:86-311-67503285
Fax:86-311-67503235
Skype:tianyuewiremesh
Webset :
Shijiazhuang Tianyue Honest Co. Ltd
Rm: Flat B, 1706, Amethyst Square, Heping Road
Shijiazhuang Hebei 050061 China
