Welded Wire Mesh Machine

Name: Welded Wire Mesh Machine
Brand: tianyue
SKU: 100500337
Availability: InStock

US$ 6,000.36 - 19,000.28 MOQ: 2 Sets

Key Specifications

Place of Origin:

Hebei, China

Brand Name:

tianyue

Model Number:

Tyb-016

Anping Tianyue Welded Wire Mesh Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Xingang Tianjin

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Hebei, China

Brand Name tianyue

Model Number Tyb-016

Voltage 380/220v or others

Current as your request

Rated Capacity as your request

Rated Duty Cycle 50KVA*5

Dimensions 4265*1800*1400mm

Weight 3T

Usage produce wire mesh

Certification ISO, ISO SGS

After-sales Service Provided Engineers available to service machinery overseas

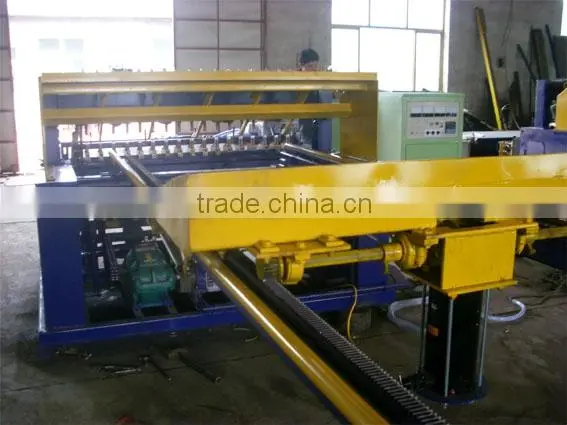

welded wire mesh machine

The automatic welding machine has logic configuration and easy operation.The sheer is very smooth, mesh is equality,exact and no buring mark

Diameter:1.8mm--3.0mm

Rating voltage: AC380V

Welding extend:1.5mm

Frequency: 50--60HZ

Mesh:50*50mm, 150mm*150mm can be changed

Degree of weld: 40/MIN

Handle:2--3 person

The most welding joint:31

electric welded wire mesh machine
type	AH-J-W6 heavy electric welding machine
Mesh aperture	6.35-12.7mm(1/4”-1/2”)
Mesh width	914-1523mm(36”-60”)
Mesh length	≤91.4m(300’)
diameter	0.6-1.07mm
Welding speed	≥60 tiers/minute(1/4” opening)
Voltage	380/220V 50-60HZ
Power	50KVA*5
Overall dimensions	42651800140mm
components	Weld mesh machine, distribution box, mend mesh machine, put-wire roller
Automaticity	Automatic alignment, automatic welding, roll up automatically (operated by one person)
Delivery time	One and half months
Warranty period	One year
