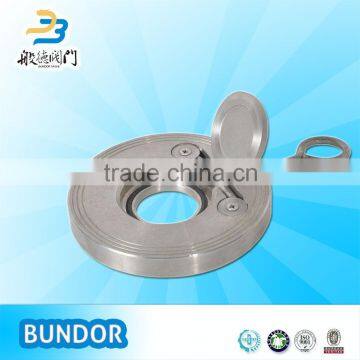

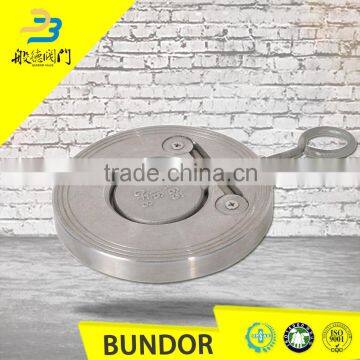

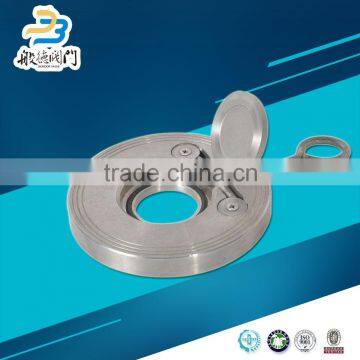

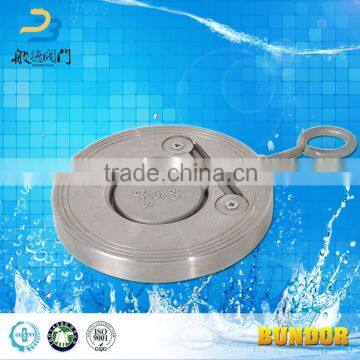

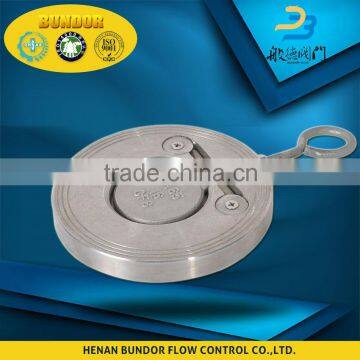

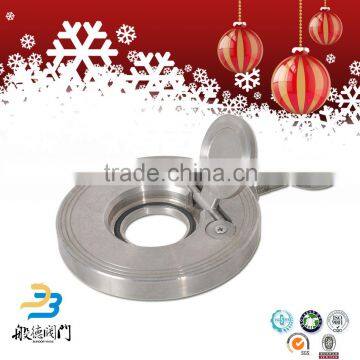

Wafer Type Single Plate Check Valve
|
name | Wafer Type Single Plate Check Valve |
| Size Range | DN50-DN400 | |
| Temperature of media | -29-400℃ | |
| Pressure | 1.0Mpa~4.0Mpa | |
| Media | water,steam,oil |
|
| Disc | WCB, CF8, CF8M, ALB |
|
| Seat | NBR,EPDM, Viton,etc. |
Product Description
model. no |
Nominal pressure |
testing pressure |
applicable temperature |
media |
||
shell |
sealing |
hard seal |
soft seal |
|||
H74H(X)0 |
1.0 |
1.5 |
1.1 |
≤400°C |
≤120°C highest≤250°C |
Oil, water, , acid ,lodine, etc.
|
H74H(X)6 |
1.6 |
2.4 |
1.76 |
|||
H74H(X)-25 |
2.5 |
3.75 |
2.75 |
|||
H74H(X)-40 |
4.0 |
6 |
4.4 |
|||
Wafer Type Single Plate Check Valve
1 Material:CF8(SS304) CF8M(SS316)
2 1-PC Design
3 Investment Casting Body>
4 Working Pressure:150-300LB
5 Type Of Operation:Manual Electric Pneumatic
6 Long Service Life and Good Reliability
Wafer Type Single Plate Check Valve's Structural Features:
One piece body
Butterfly swing type
Dual plate disc ,
long pattern
Renewable split disc
Horizontal or vertical service
Lug Wafer ends
Available with flange ends.
| body | WCB, CF8, CF8M, ALB |
| disc | WCB, CF8, CF8M, ALB |
| seat | NBR,EPDM, Viton,etc. |
| stem | WCB, CF8M, CF8, ALB |
| spring | SS316 |
Product Process
Packaging and transportation
Our history
Product Certification
1.We promise no leakage and breakage for valves. Every valve will test for 2 times test pressure before leave factory. We will replace the valve if there is quality problem within 24 months guarantee period.
2.We obtained ISO9001 quality system certification,ISO14001 certification,GB/T 28001 certification.We inspect the parts of valve carefully, 48 produce steps, try to supply you ideal valve.
3.We can supply different kinds of materials according to customers' requests,such as DI,cast steel,SS304,SS316 body and disc. EPDM,NBR,PTFE,Viton etc. Enough stock ensure fast delivery.
4.We have more than 150 types body moulds, which include ISO,DIN,ANSI,BS standard.
5.We own full-automatic machine paint line, match high-temperature baking house,which makes smooth paint and good appearance of valve.
Our Customers
In the 21 years, we have customers in many countries around the world.
