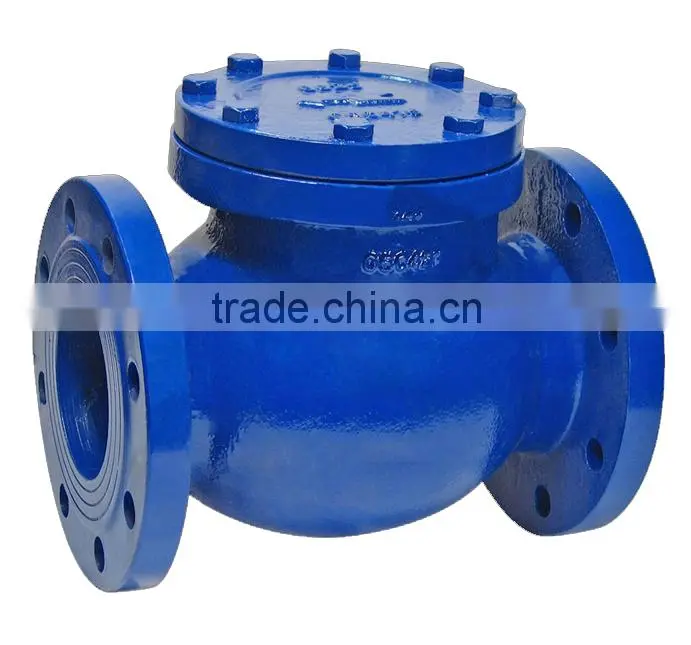

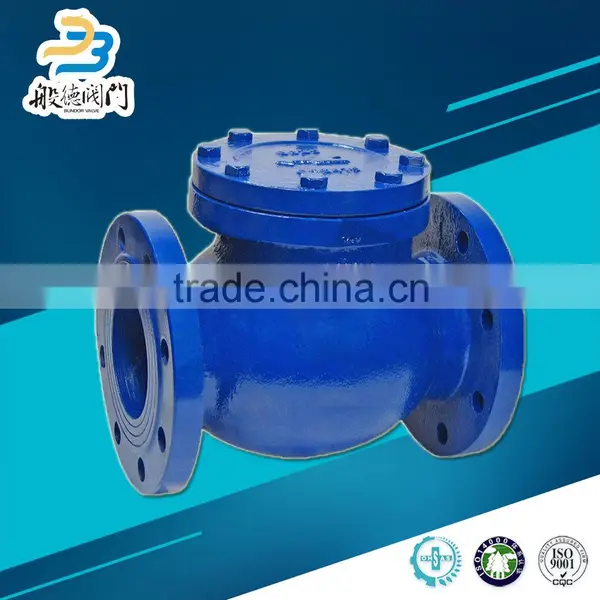

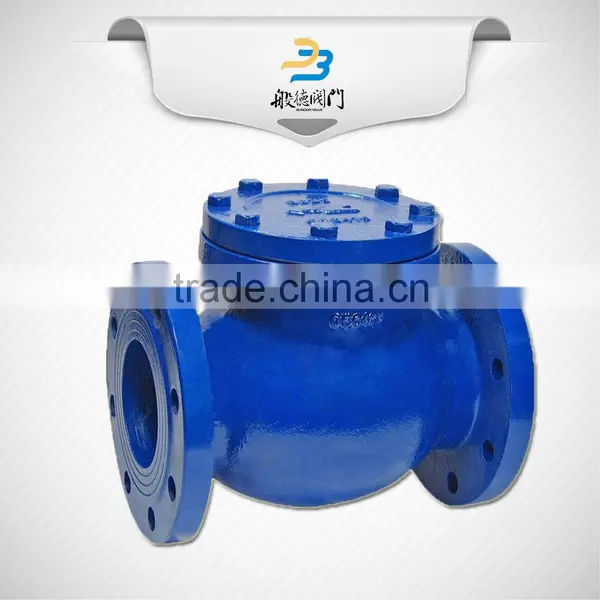

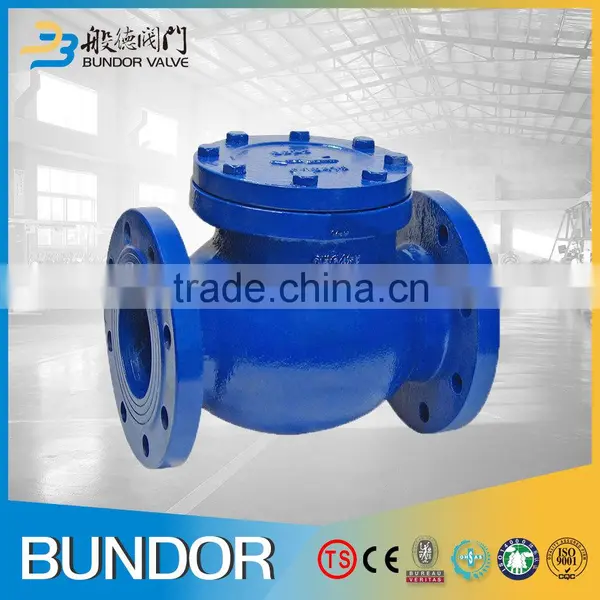

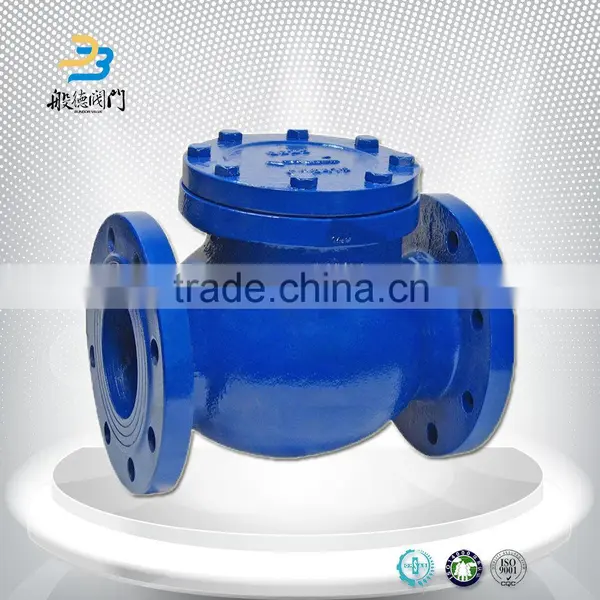

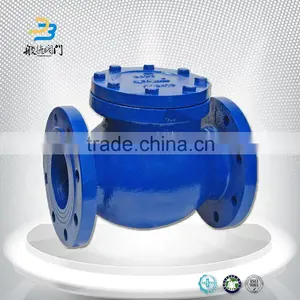

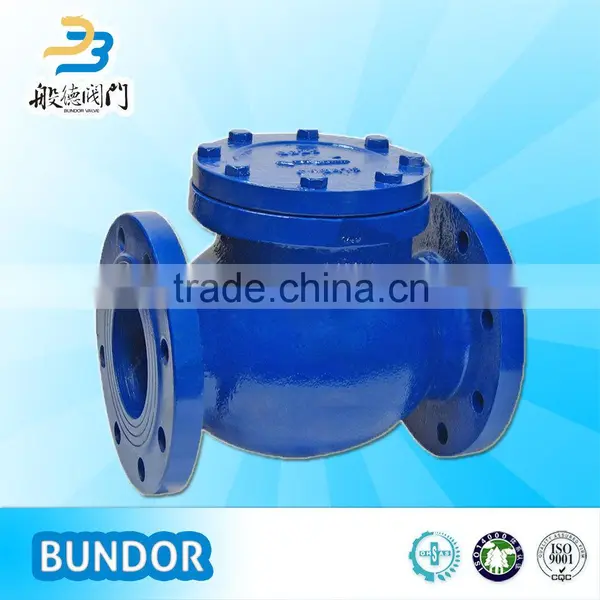

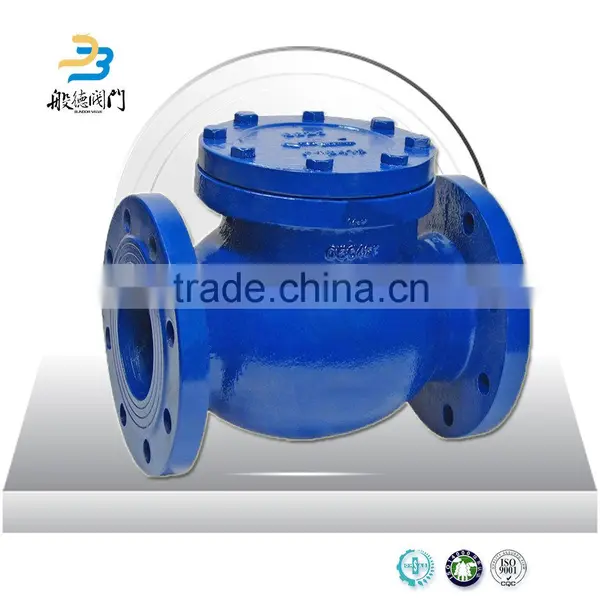

Ductile Iron Cast Iron Flanged Swing Check Valve 6 Inch

Ductile Iron Cast Iron Flanged Swing Check Valve 6 Inch thumbnail-1
Ductile Iron Cast Iron Flanged Swing Check Valve 6 Inch thumbnail-2
Ductile Iron Cast Iron Flanged Swing Check Valve 6 Inch thumbnail-3
Ductile Iron Cast Iron Flanged Swing Check Valve 6 Inch thumbnail-4
Ductile Iron Cast Iron Flanged Swing Check Valve 6 Inch thumbnail-5
Ductile Iron Cast Iron Flanged Swing Check Valve 6 Inch thumbnail-6
Ductile Iron Cast Iron Flanged Swing Check Valve 6 Inch photo-1
Ductile Iron Cast Iron Flanged Swing Check Valve 6 Inch photo-2
Ductile Iron Cast Iron Flanged Swing Check Valve 6 Inch photo-3
Ductile Iron Cast Iron Flanged Swing Check Valve 6 Inch photo-4
Ductile Iron Cast Iron Flanged Swing Check Valve 6 Inch photo-5
Ductile Iron Cast Iron Flanged Swing Check Valve 6 Inch photo-6
US$ 47.00 - 47.00 MOQ: 10 Pieces
Key Specifications
Get Latest Price
Standard or Nonstandard:
Standard
Structure:
Check
Pressure:
Low Pressure
Contact Supplier Request Quote Chat Now
Henan Bundor Flow Control Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin/Qingdao/Ningbo/Guangzhou/shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Standard or Nonstandard Standard
Structure Check
Pressure Low Pressure
Power Manual
Material Casting
Temperature of Media Normal Temperature
Media Water
Port Size DN50-DN600
Place of Origin Tianjin, China
Model Number Check Valve
Brand Name Bundor
Application General
Product Description





Ductile Iron Cast Iron Flanged Swing Check Valve 6 Inch

Ductile Iron Cast Iron Flanged Swing Check Valve 6 Inch name Ductile Iron Cast Iron Flanged Swing Check Valve 6 Inch
nominal DIAMETER 2-24(DN50-DN600)
Valve Body Cast iron ,ductile iron,Brass,SS,CF8
Working Temperature PN16, PN25,CL125 ,CL150,CL250
Disc Cast iron,Ductile iron+Brass/Ductile +NBR
Sealing bronze,Grey Iron
Pin

Ductile Iron,Copper

Product Description

Ductile Iron Cast Iron Flanged Swing Check Valve 6 InchDuctile Iron Cast Iron Flanged Swing Check Valve 6 Inch

Ductile Iron Cast Iron Flanged Swing Check Valve 6 Inch's Parts Material
No Name Material
1 body ASTM A126A(B) GG20 GG25
2 ring ASTM B36/B62,SS410 Brass,Bronze
3 disc ASTM A126A(B) GG20 GG25
4 shaft A216 WCB GS-C25
5 rocker ASTM A126A(B) GG20 GG25
6 nut A216 WCB GS-C25
7 bonnet ASTM A126A(B) GG20 GG25
8 pin A216 WCB GS-C25
9 seal ring Graphite Graphite
10 bolt A216 WCB GS-C25
11 gesket A216 WCB GS-C25
12 nut A216 WCB GS-C25

Product Process



Packaging & Shipping





Packaging and transportation

Application area

Ductile Iron Cast Iron Flanged Swing Check Valve 6 Inch



Company Information





Our history

Ductile Iron Cast Iron Flanged Swing Check Valve 6 Inch



Certifications


Product Certification

Ductile Iron Cast Iron Flanged Swing Check Valve 6 Inch

1.We promise no leakage and breakage for valves. Every valve will test for 2 times test pressure before leave factory. We will replace the valve if there is quality problem within 24 months guarantee period.
2.We obtained ISO9001 quality system certification,ISO14001 certification,GB/T 28001 certification.We inspect the parts of valve carefully, 48 produce steps, try to supply you ideal valve.
3.We can supply different kinds of materials according to customers' requests,such as DI,cast steel,SS304,SS316 body and disc. EPDM,NBR,PTFE,Viton etc. Enough stock ensure fast delivery.
4.We have more than 150 types body moulds, which include ISO,DIN,ANSI,BS standard.
5.We own full-automatic machine paint line, match high-temperature baking house,which makes smooth paint and good appearance of valve.

Our Customers

In the 21 years, we have customers in many countries around the world.

Ductile Iron Cast Iron Flanged Swing Check Valve 6 Inch
