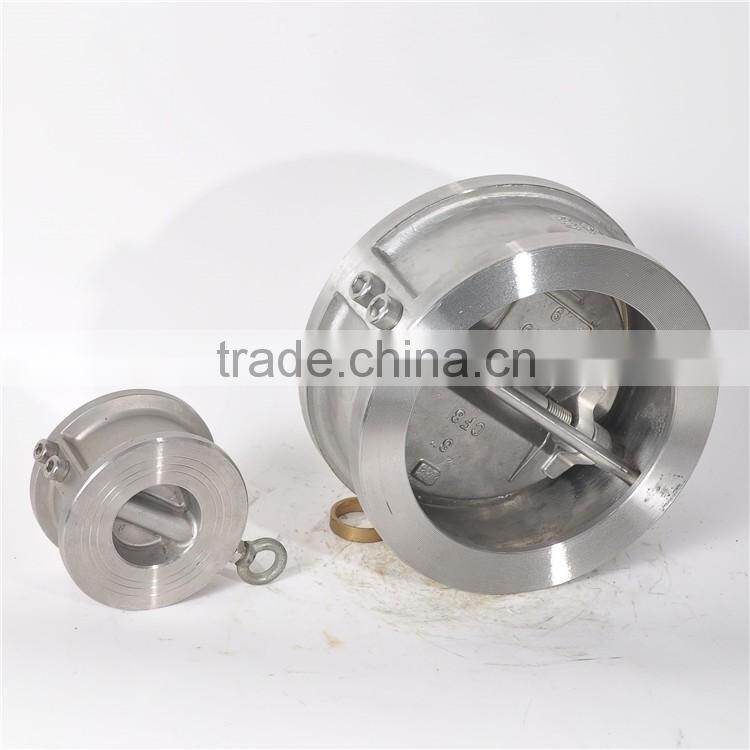

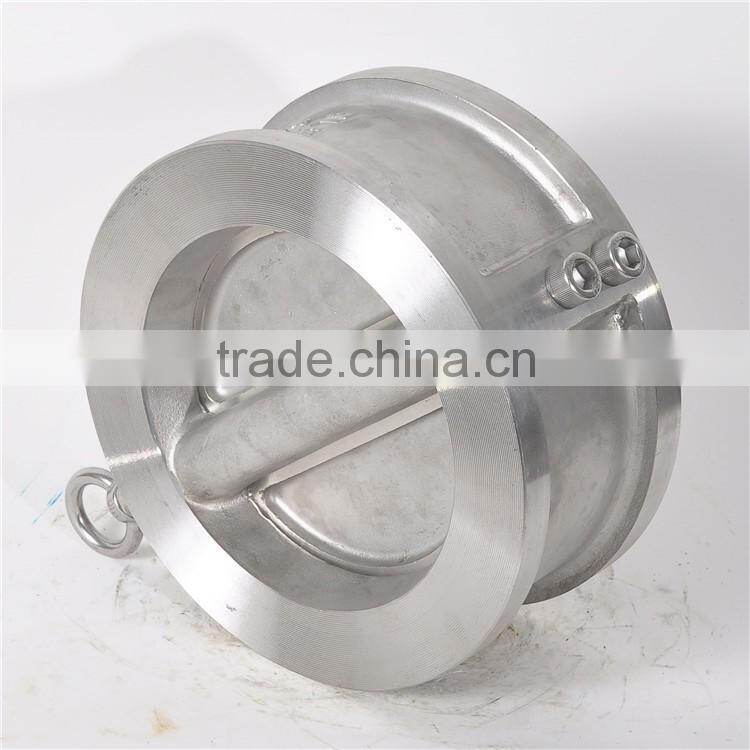

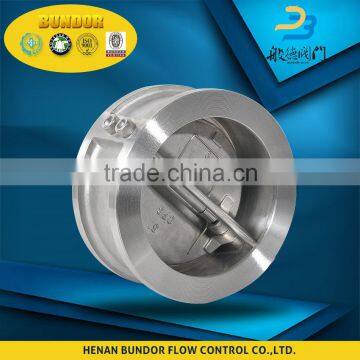

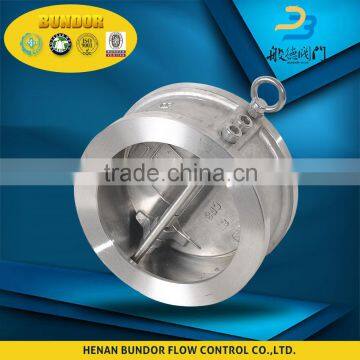

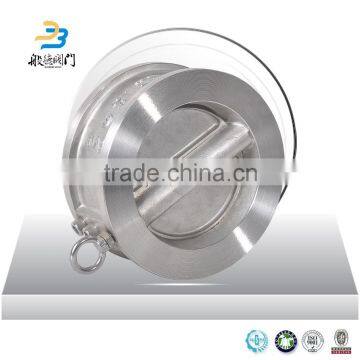

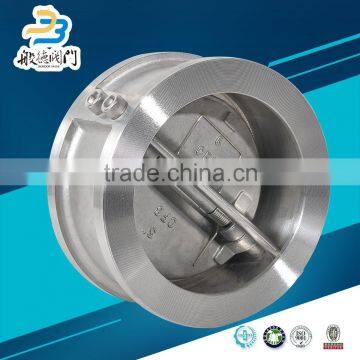

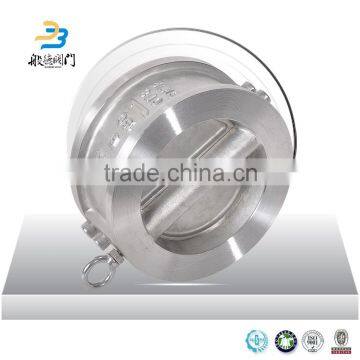

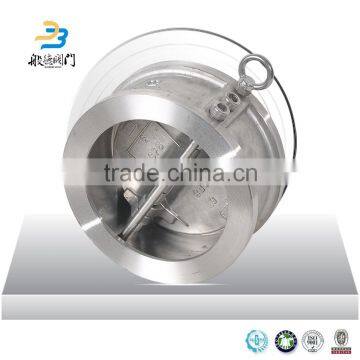

Flanged Wafer Check Valve Plumbing
|
name | Flanged Wafer Check Valve Plumbing |
| Size Range: | 2~24"(DN50~DN600) | |
| Valve Body | WCB,ZG1Cr18Ni9Ti,CF8,CF8,ZG1Cr18Ni12Mo2Ti,CF8M,CF3M | |
| Pressure | PN10, PN16, Class125 | |
| Disc | CF8,CF8M,CF3M | |
| Seat Materials | NBR, EPDM | |
| Stem Materials | SS416, SS304, SS316 |
Product Description
| DN | PN10 | PN16 | PN25 | PN40 | ||||
| L | D | L | D | L | D | L | D | |
| 50 | 60 | 109 | 60 | 109 | 60 | 109 | 60 | 109 |
| 65 | 67 | 129 | 67 | 129 | 67 | 129 | 67 | 129 |
| 80 | 73 | 144 | 73 | 144 | 73 | 144 | 73 | 144 |
| 100 | 73 | 164 | 73 | 164 | 73 | 170 | 73 | 170 |
| 125 | 83 | 194 | 83 | 194 | 83 | 198 | 83 | 198 |
| 150 | 98 | 220 | 98 | 220 | 98 | 228 | 98 | 228 |
| 200 | 127 | 275 | 127 | 275 | 127 | 288 | 127 | 293 |
| 250 | 146 | 330 | 146 | 333 | 146 | 343 | 146 | 355 |
| 300 | 181 | 380 | 181 | 388 | 181 | 403 | 181 | 420 |
| 350 | 184 | 440 | 184 | 448 | 184 | 460 | 222 | 480 |
| 400 | 198 | 493 | 198 | 498 | 198 | 52 | 232 | 549 |

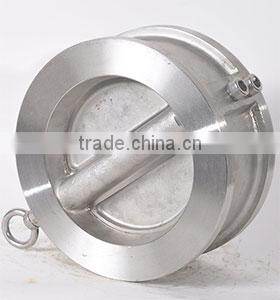

Wafer Butterfly Check Valve is an energy-saving product, is manufactured based on the foreign advanced technology and in accordance with relative international standards. This product is featred by excellentretaining performance, high safety and reliablity and low resistance. It is suitable for systems in the industries of perochemical, food processing, medicine,textile, paper-making, water supply and drainage,metallurgy,energy and light industry etc.
Product Process
Packaging and transportation
Application area
Our history
Product Certification
1.We promise no leakage and breakage for valves. Every valve will test for 2 times test pressure before leave factory. We will replace the valve if there is quality problem within 24 months guarantee period.
2.We obtained ISO9001 quality system certification,ISO14001 certification,GB/T 28001 certification.We inspect the parts of valve carefully, 48 produce steps, try to supply you ideal valve.
3.We can supply different kinds of materials according to customers' requests,such as DI,cast steel,SS304,SS316 body and disc. EPDM,NBR,PTFE,Viton etc. Enough stock ensure fast delivery.
4.We have more than 150 types body moulds, which include ISO,DIN,ANSI,BS standard.
5.We own full-automatic machine paint line, match high-temperature baking house,which makes smooth paint and good appearance of valve.
Our Customers
In the 21 years, we have customers in many countries around the world.
